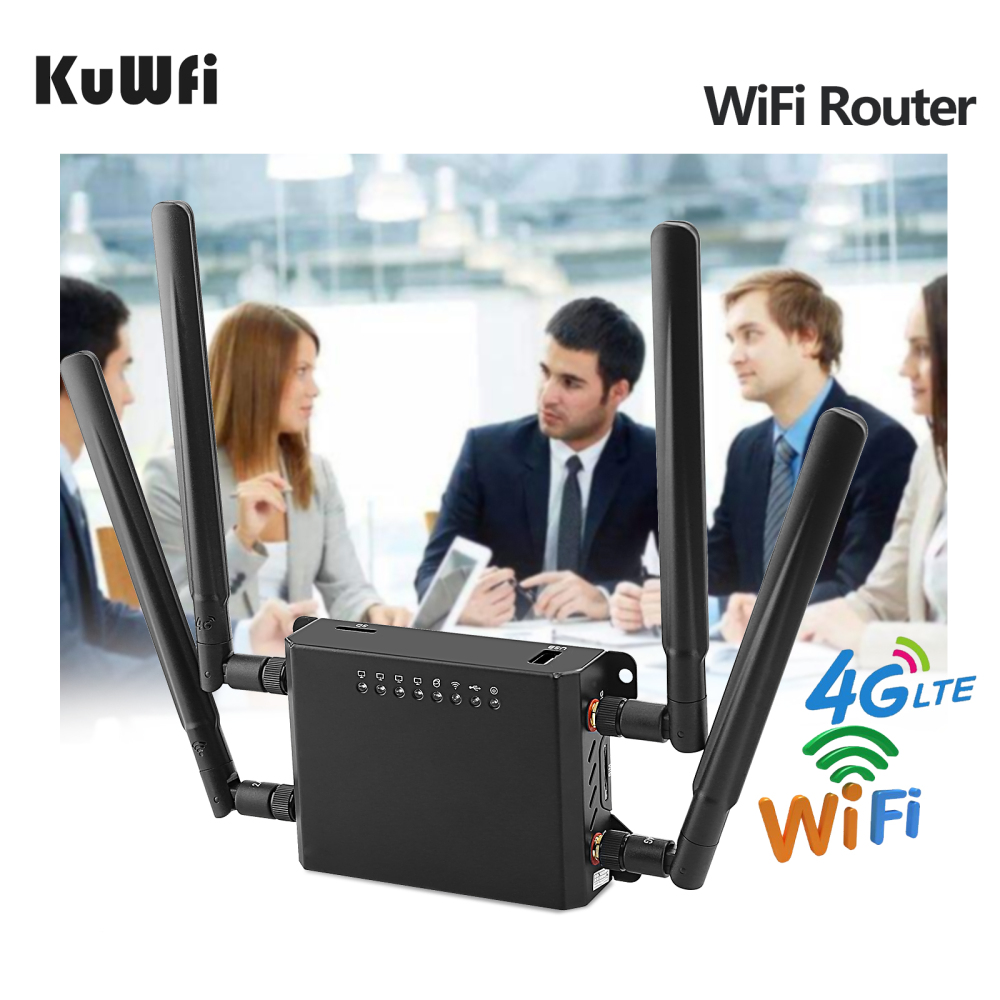

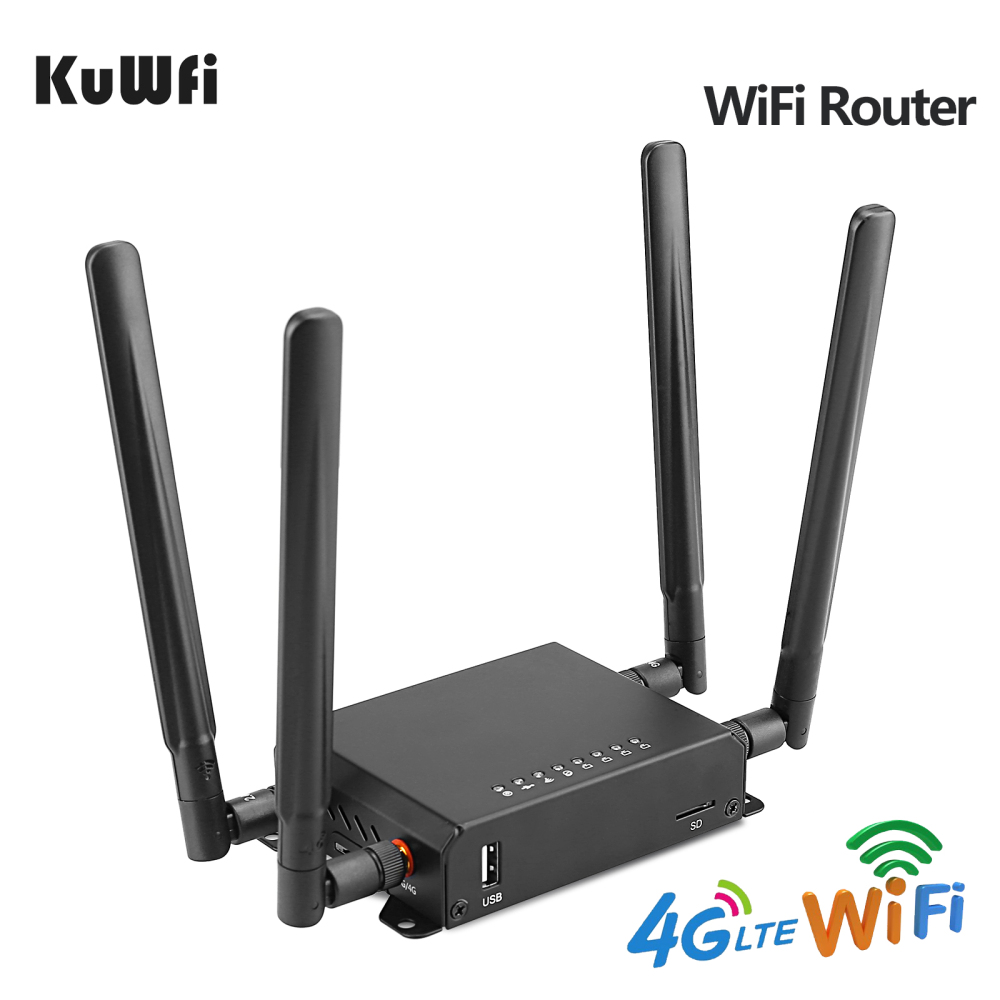

WE826-EC25-AF/E is a high power Wireless router with 4G with MIPS networking processor, solution for enterprise, home, company, office’s WiFi networking. It’s compatible with IEEE 802.11b/g/n standard, the data rate reach to 300Mbps. With external power amplifier, 1000mW high power,4PCS external detachable antenna, WiFi signal more stable and longer range.
Main Features:
- Support wireless AP, WiFi Router multi operation mode to meet with different requirement
- Support PPPOE, static IP, dynamic IP in operation mode
- Support 128bit WPA、WPA2、WPA-PSK、WPA2-PSK security
- Support SSID broadcasting, multi SSID, VLAN tag and Chinese SSID With function of build in firewall, IP filter, URL filter and MAC filter With build in DHCP Server, can assign IP address for connected wireless access point
Mainly used in United States/Canada/Mexico
- Support 3G/4G network band( Can work in USA) :
- (EC25-AF Mini PCIe)---For USA/CA/Mexico countries
- 4G LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
- 3G WCDMA: B2/B4/B5
- Support US T-Mobile, AT&T
EU verison
4G LTE FDD:B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800MHZ) 4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ) 3G WCDMA:B1/B8(2100/900MHZ) 2G GSM:B3/B8(1800/900MHZ) Working in all off EU ,Asia ,Africa,Oceania

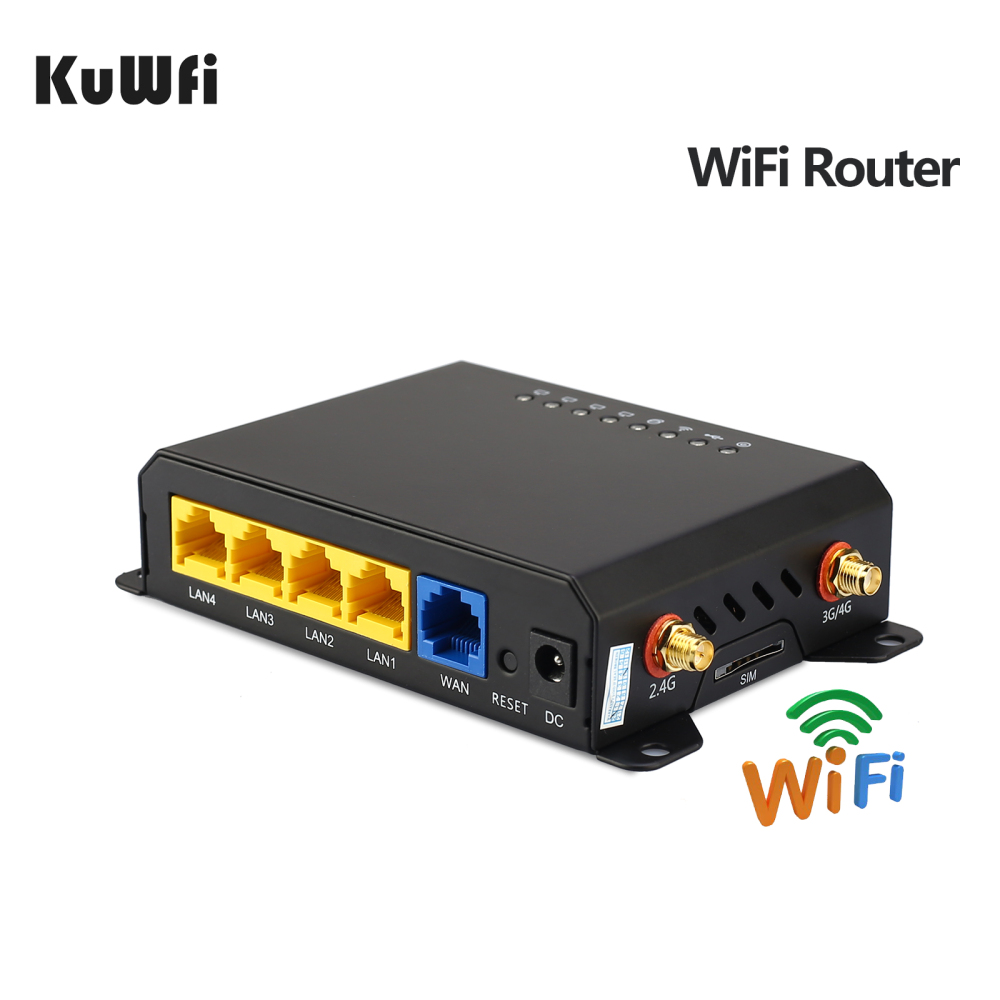

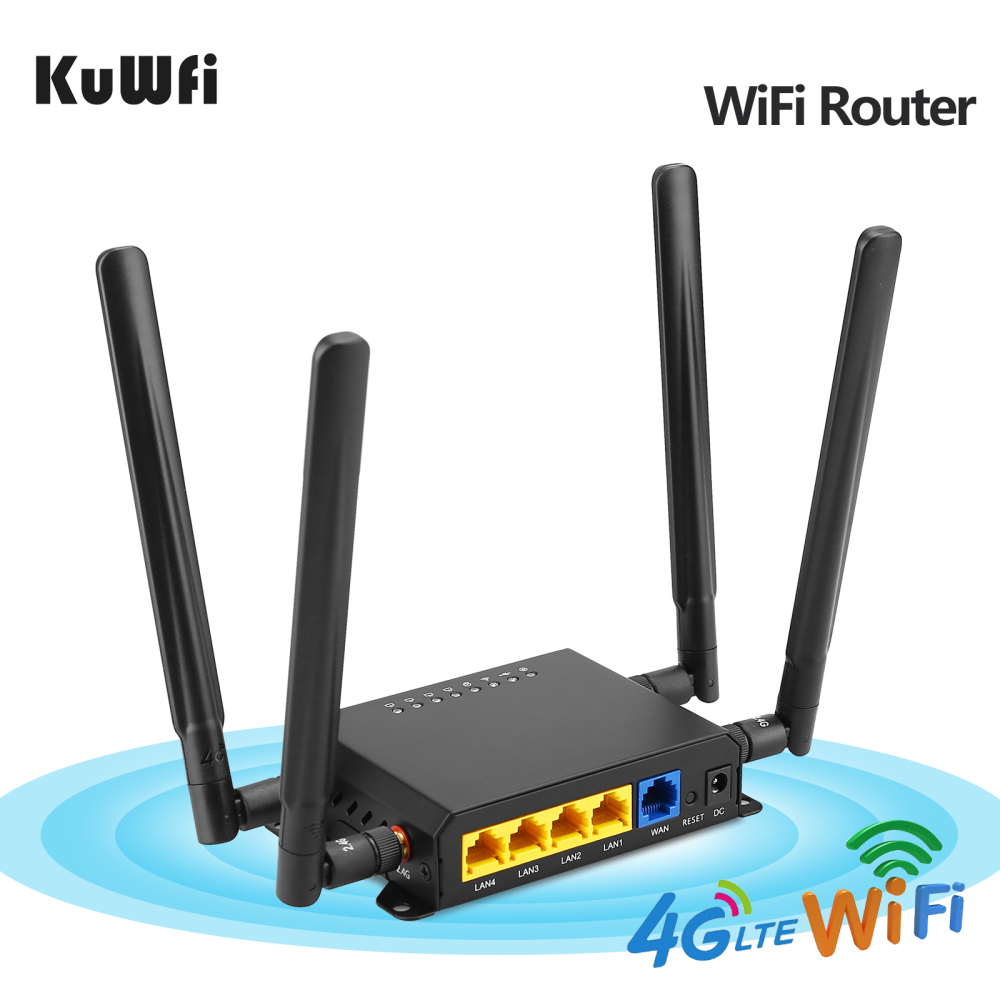

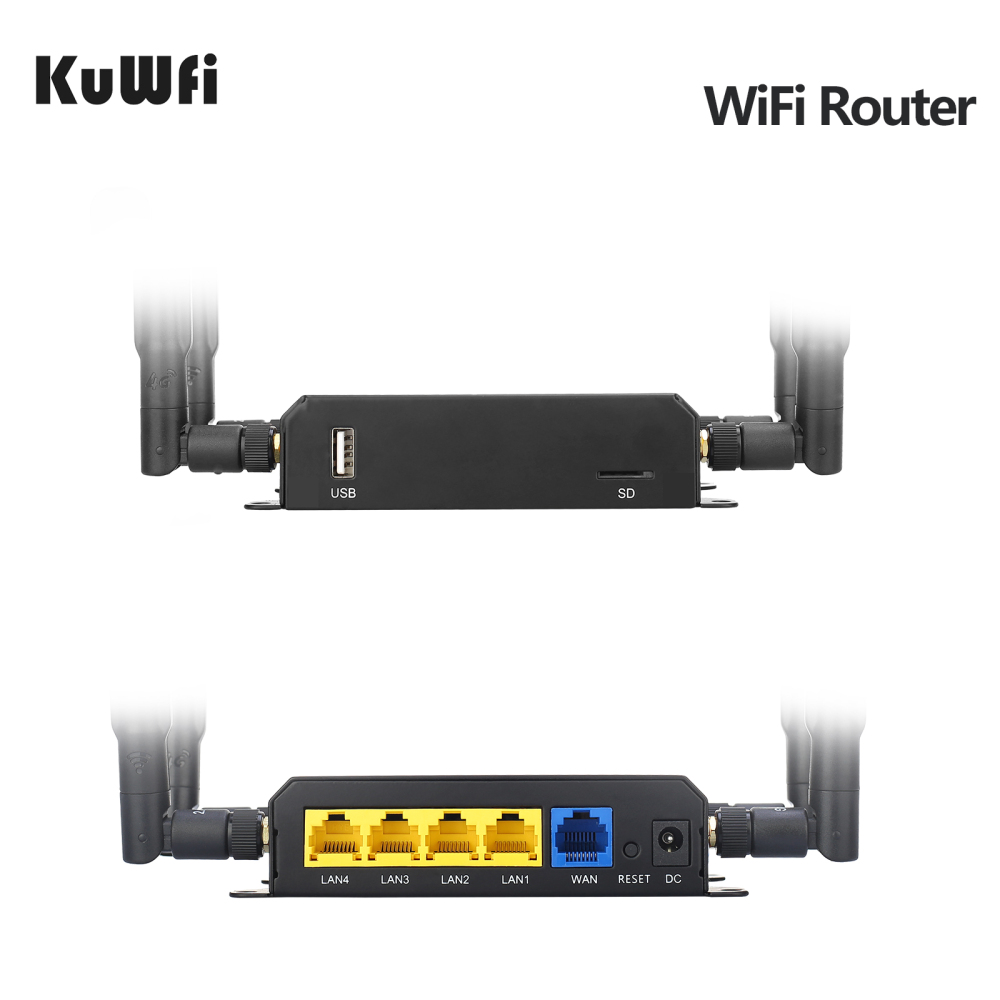

Ports and buttons
1* Reset Button
1* Power in
1* 10/100Mbps WAN Port
4* 10/100Mbps LAN Port
1* SD Micro slot

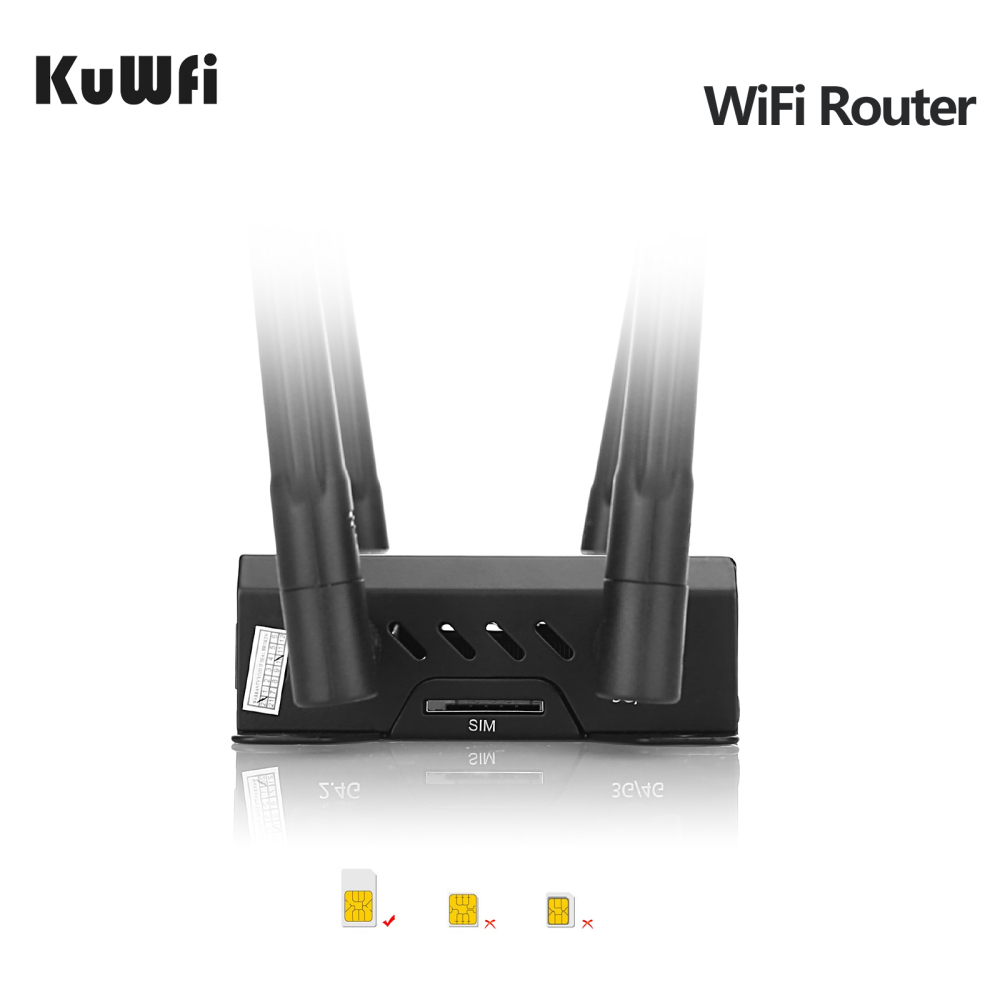

1* SIM card slot (standard size)
1* USB 2.0 port (Support SAMBA, FTP server and DLNA, it is a wireless router can sharing files)
|
|
|
|
4G LTE SIM Card Router
- High gain extermal antenna: 4 Pcs
- WIFI MIMO 2*2: 300Mbps
- LTE Cat4 MIMO 2*2: 150Mbps
|
WiFi Dead Zone Killer
This high speed WiFi router delivers exceptional WiFi coverage throughout your office/home as four high-gain antennas and strong amplifiers connect every device—from the living room to the backyard
|

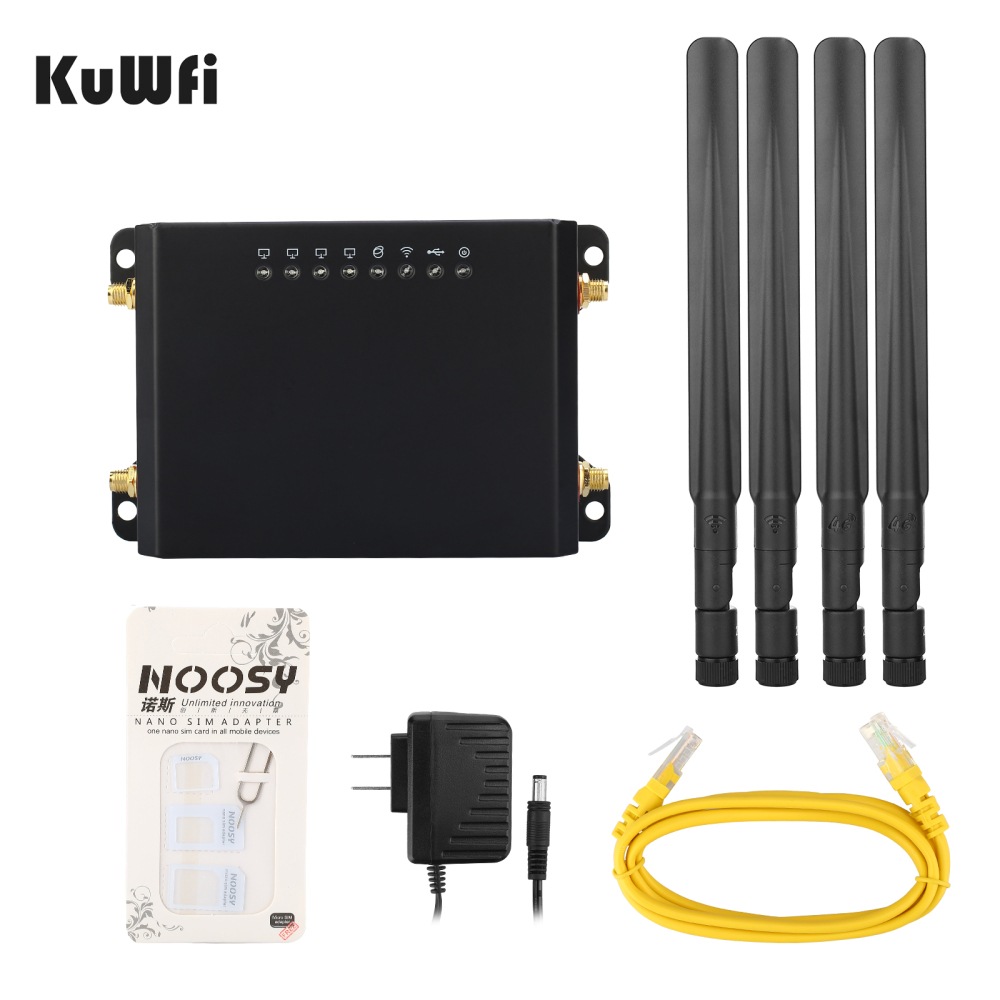

Package including:
- 1 * KuWFi Router
- 4 * 5dbi Antenna
- 1 * Manual
- 1 * 12V DC Power
- 1 * SIM card adapter Tool
|
Set Access Point Name (APN)
- Enter the router IP address: 192.168.1.1
- Click Network—APN—Enable. Modify APN.
- You can find the APN of the SIM card from the carrier's official website or mobile phone.
There is an mac APP called " LTE Info", you could download on your mobile and then check what 4G LTE band in your area or Insert the SIM card into your phone. Click on "Wi-Fi & internet - SIM & network - SIM - Access Point Names". You can find APN.
Please Note
if your sim card support the router network band ,also have update APN （APN seting should be from Operator) ,but still not work ,please confirm
1. The sim card is an IoT card.
2. The sim card have limited service ,not work with router or hotspot.
3. APN not correct.
4. Not support roaming service.
5. Some place did not cover the network Frequency band.
