Hi dear ,please use this link to check user manual ,thanks!
https://drive.google.com/file/d/1pweYLfXYpKd-bBfuM2y45yGDTDZECcSC/view?usp=sharing

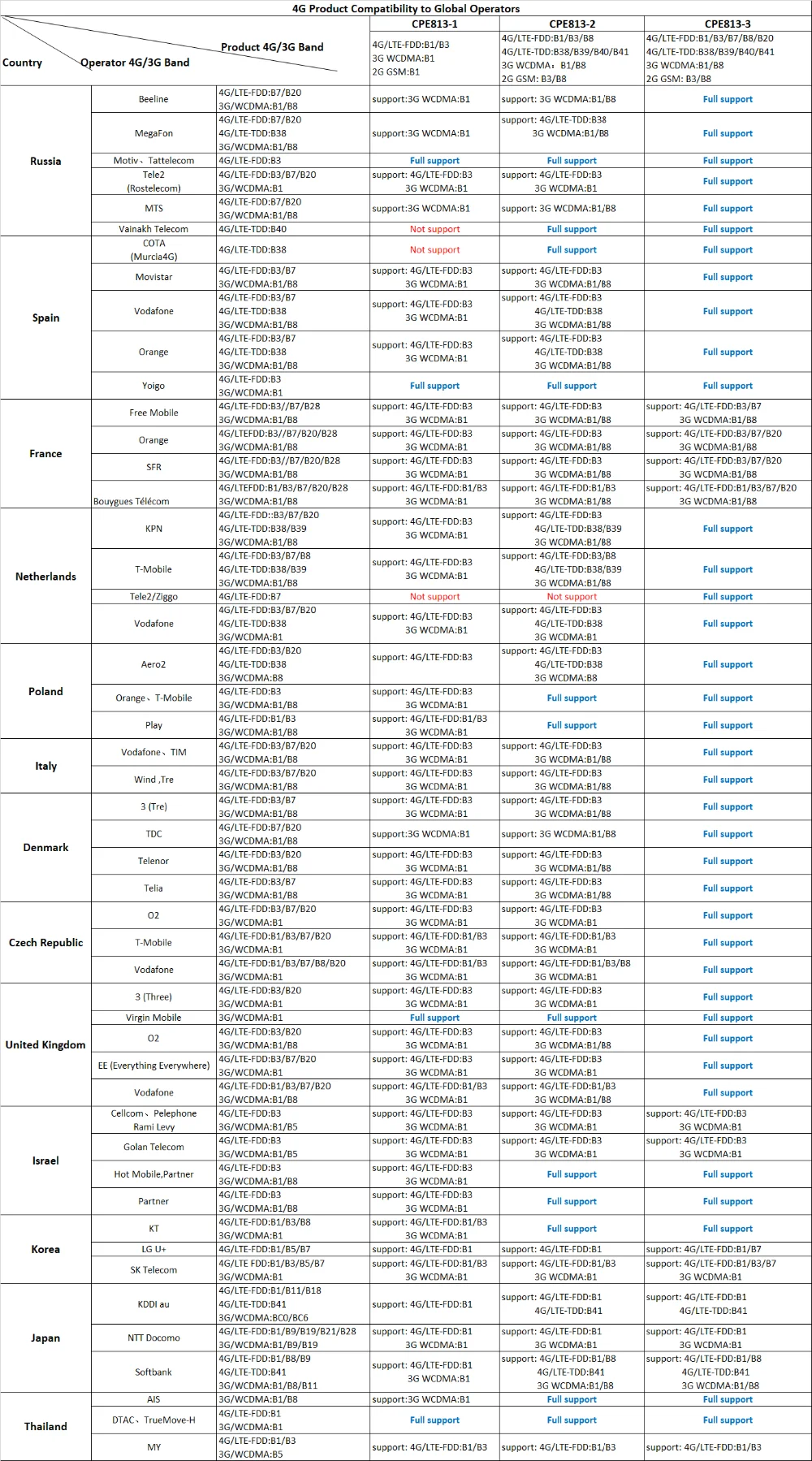

Hi dear ,please noted :before making the order ,please check the frequency of your sim card if it can work in our router ,If you do not know ,please leave a message to me , i will check it ,thanks!
Version-1
4G LTE FDD:B1/B3(2100/1800MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B1(2100MHZ)
Working in most of Asia
Version-2
4G LTE FDD:B1/B3/B8(2100/1800/900MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in most of in EU,Asia,Africa
Version-3
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in all off EU ,Asia ,Africa,Oceania

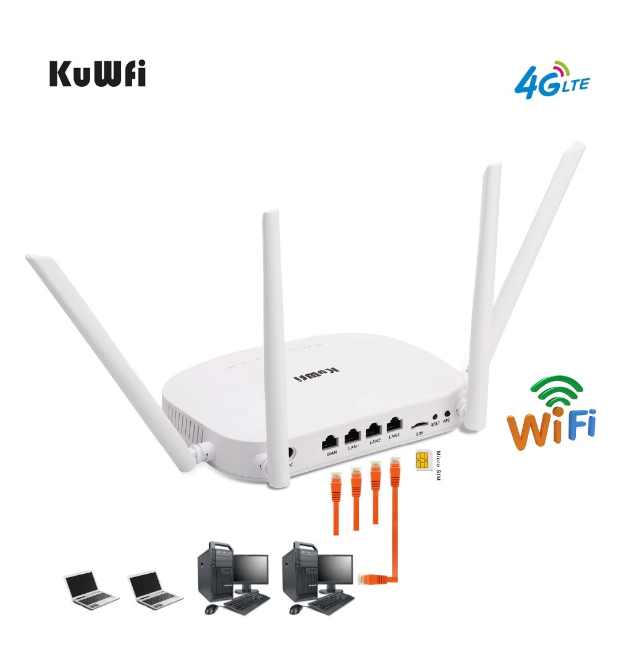

4G To LAN: Insert 3G/4G SIM card to the Router , connect the LAN cable the router to PC/Desktop ,
Wired Mode:Standard wireless modem mode:Static online mode/Dynamic Internet access/PPPoE online modem
1.2.4G LTE Router--Ideal for sharing your 4G LTE network with up to 32 Wi-Fi devices and enjoy download 4G speeds up to 150Mbps and 50Mbps upload speed.
2..The LTE CPE Router with powerful signal with antenna , Internet access to internet via HSPA/LTE Data SIM Card. or Internet access/PPPoE work mode ,
3..it is Easy to connect and easy to carry in hand Sharing customer to 32 WiFi users,All you need to do is inserting the SIM card, then you will enjoy the WiFi with your friends with this portable 4G LTE router. Bridge WiFi and share network with your families and friends securely in the hotel or other public places. also good for outside camera Project.
4..4G wireless mode（Default）:Choose 3G/4G Wireless modem mode as default, pulg in to standard SIM Card, KuWFi CPE will identify 3G/4G automatically.for some SIM Card should be update APN.

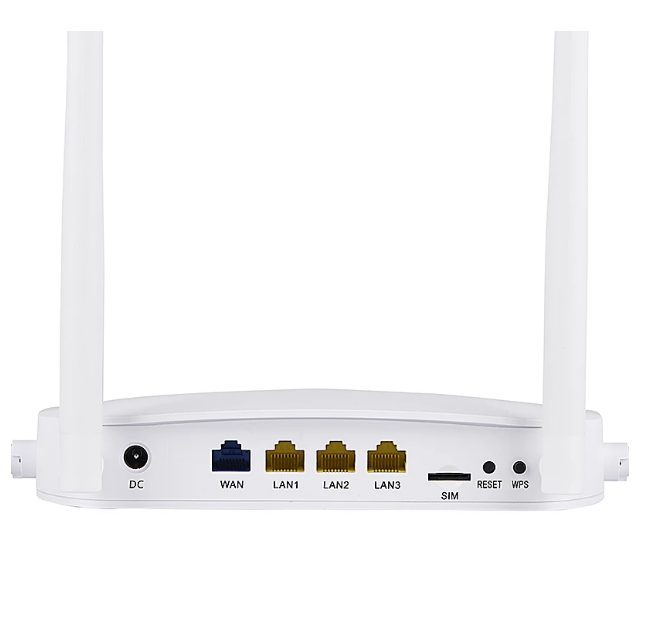

1.This 4g router is equipped with 4 LAN interface，when the 4G router transmits the WiFi ,you may connect to other Devices simultaneously
2..it support 12V 1A power adapter
3.It Produce a 2.4GHz WFi hotspot with a powerful 3,000 square meter WiFi coverage
4.Internal dual-antenna, selectable 4G / 3G signal A stylish and slim design to fit in perfectly with your home/office.
5.With LED indicator display, see the status easily
6.It Comes with a USB port ,you can use it to charger for mobile Phone
