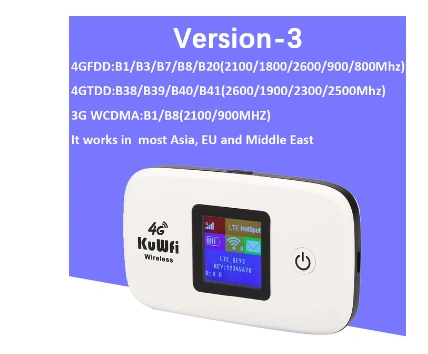

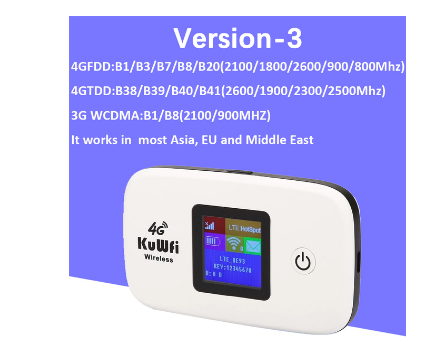

EU verison :it was designed RU ,Asia, EU Middle East
4G FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800Mhz)
4G TDD:B38/B39/B40/B41(2600/1900/2300/2500Mhz)
3G WCDMA:B1/B8(2100/900MHZ)

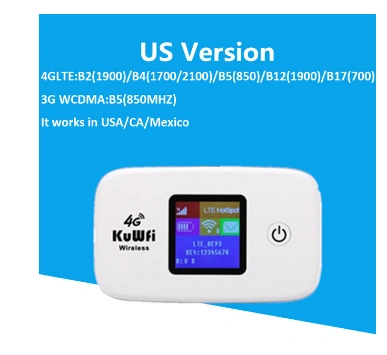

US Version:it was designed for USA/CA/Mexico
4G LTE:B2(1900)/B4(1700/2100)/B5(850)/B12(1900)/B17(700)
3G WCDMA:B5(850MHZ)
Product Description
KuWFi are factory store , have been selling 4G wifi routers around the world for over 9 years . wholesale order and customization order are welcome .

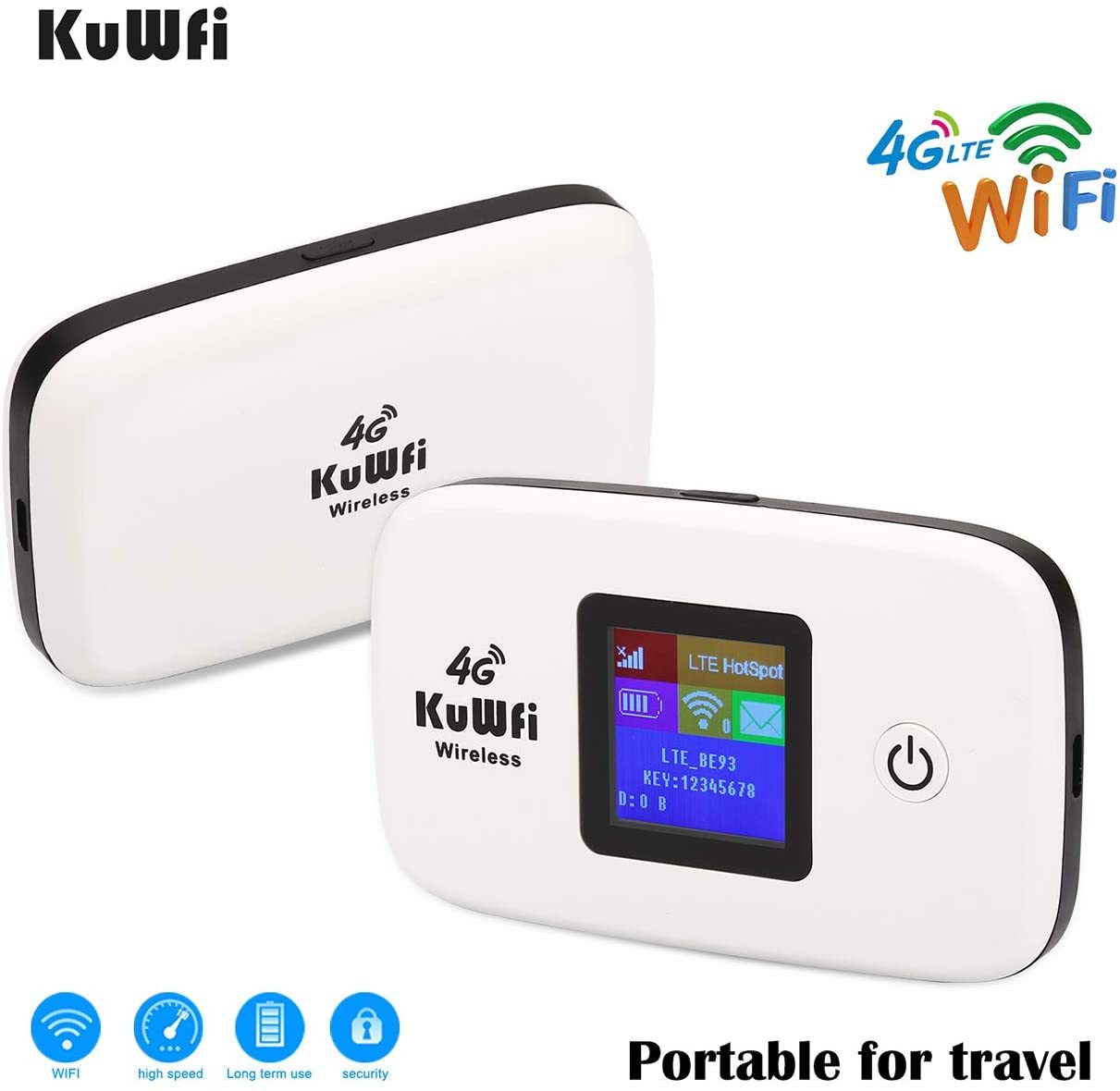

1.4G wifi Router support unlocked 3G/4G Sim card ,

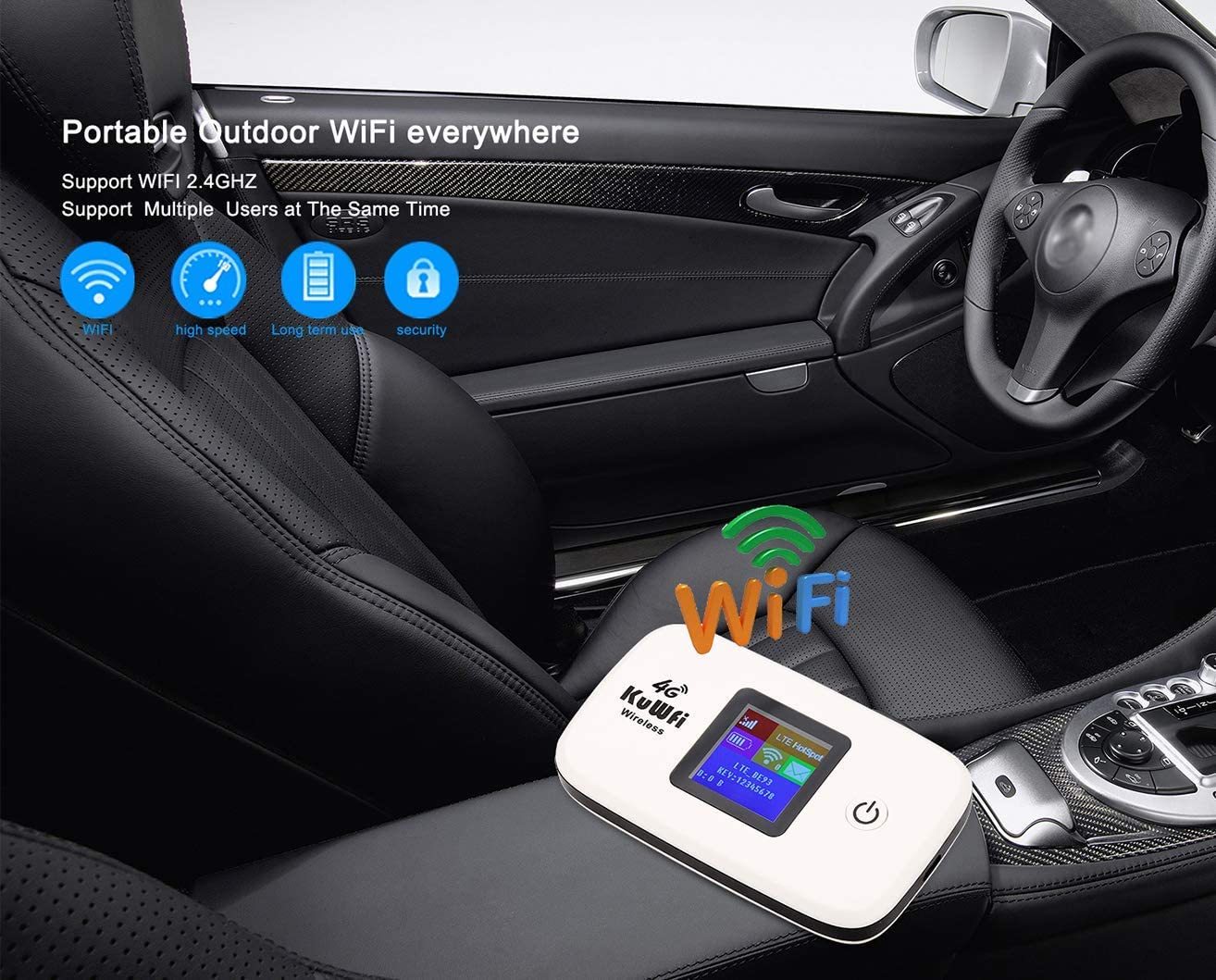

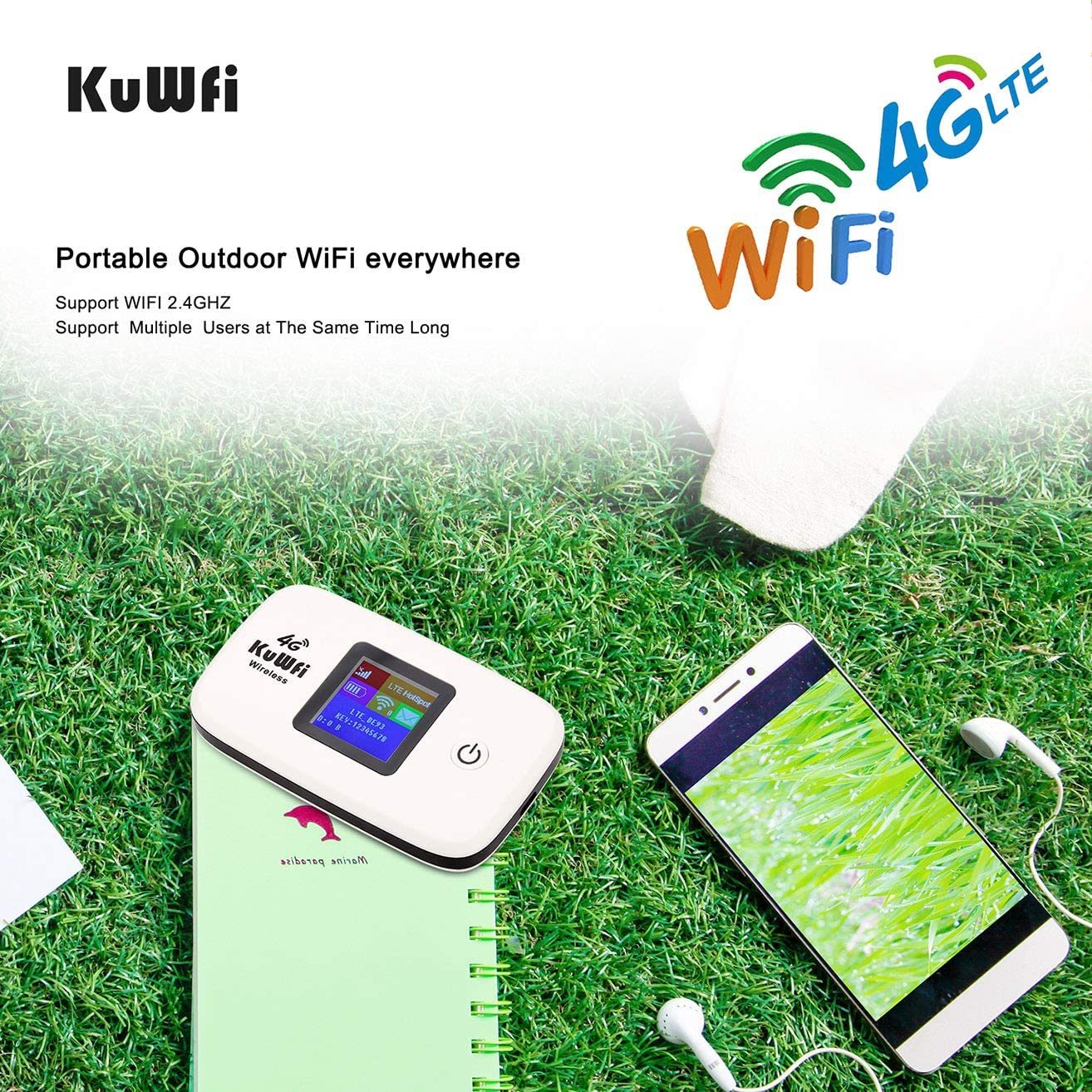

Travel the world with this super-fast 4G mobile Wi-Fi a pocket-sized solution to low-cost travel Wi-Fi.
2.Wireless 4G Router designed for WIFI users to get access to internet via UMTS/HSPA/LTE.
3.In order to connect to high speed network easily and fast,it uses the battery powered ,use for indoor or outdoor without broadband place,put it into your pocket, enjoy WiFi anytime and anywhere

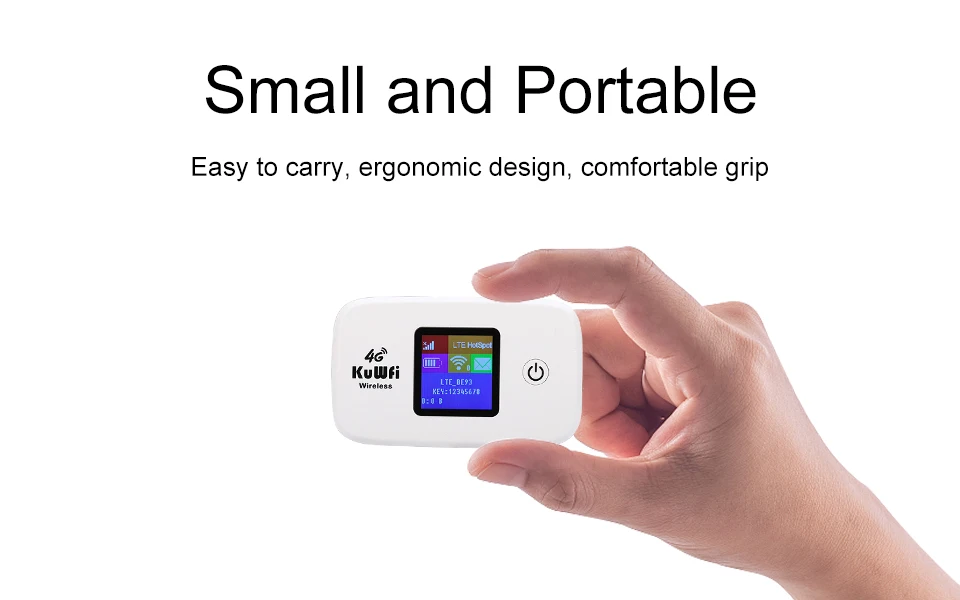

4.4G Router with a mini size , is suitable for travel with family and friends indoor or outdoor .

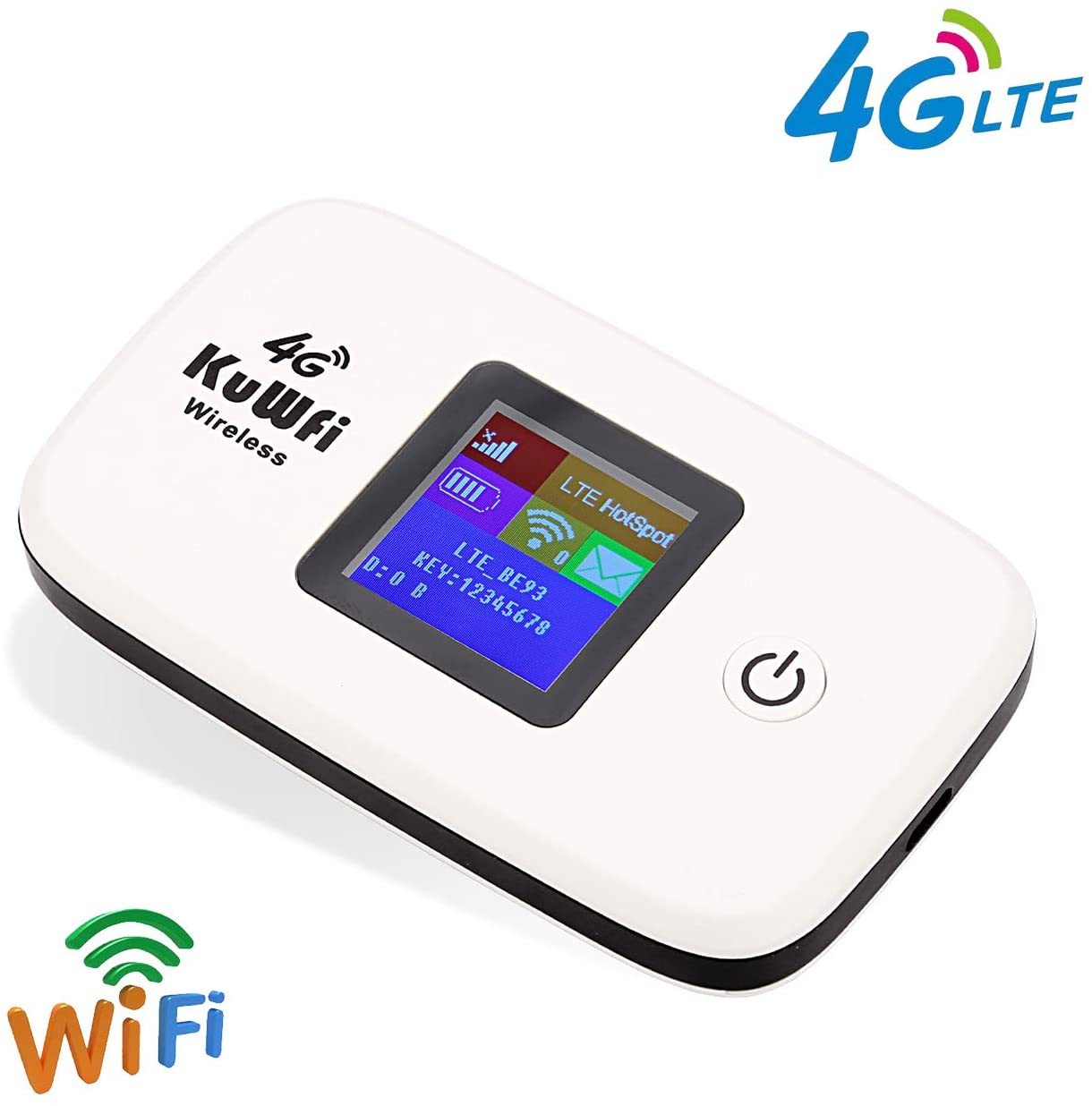

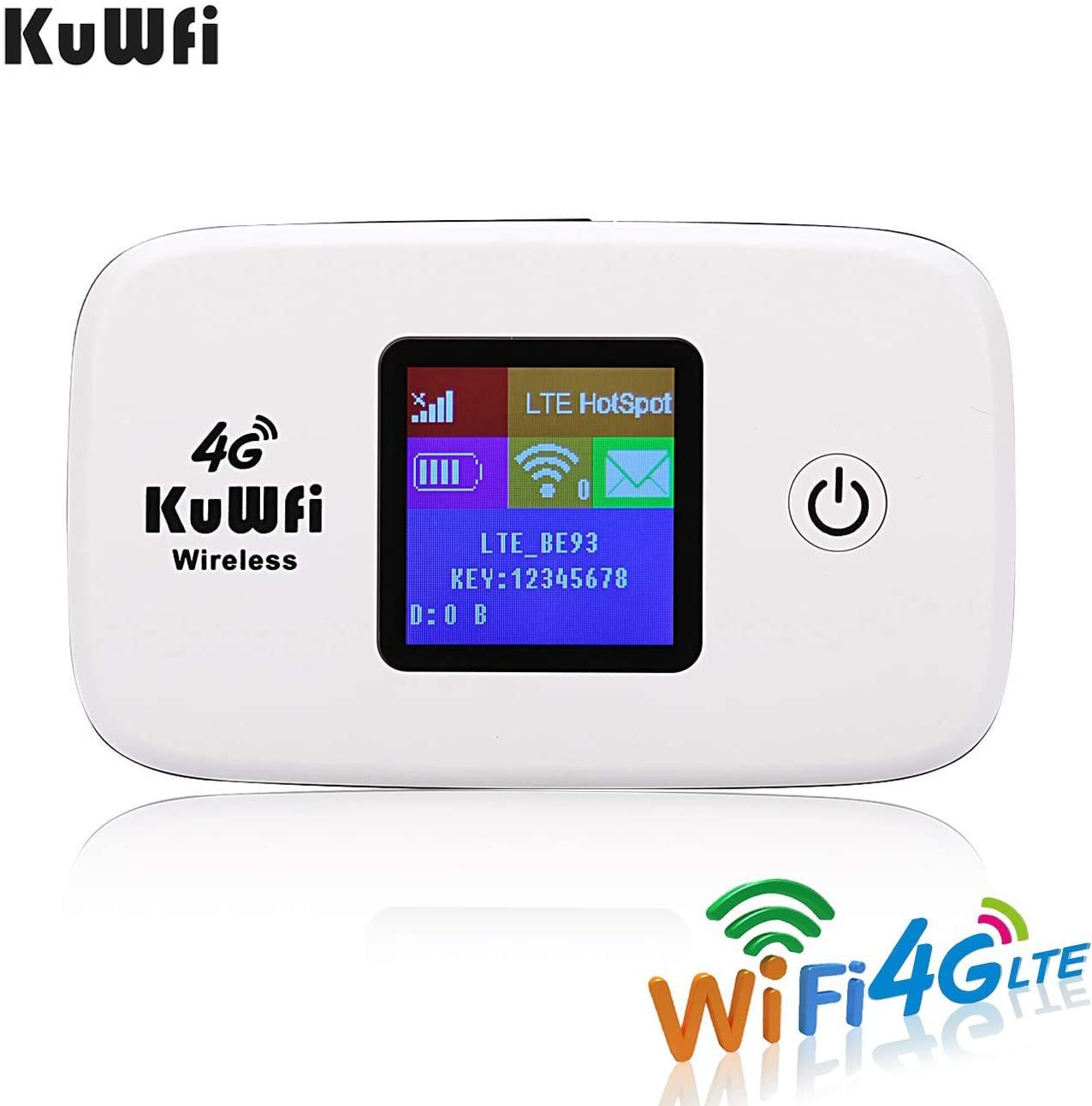

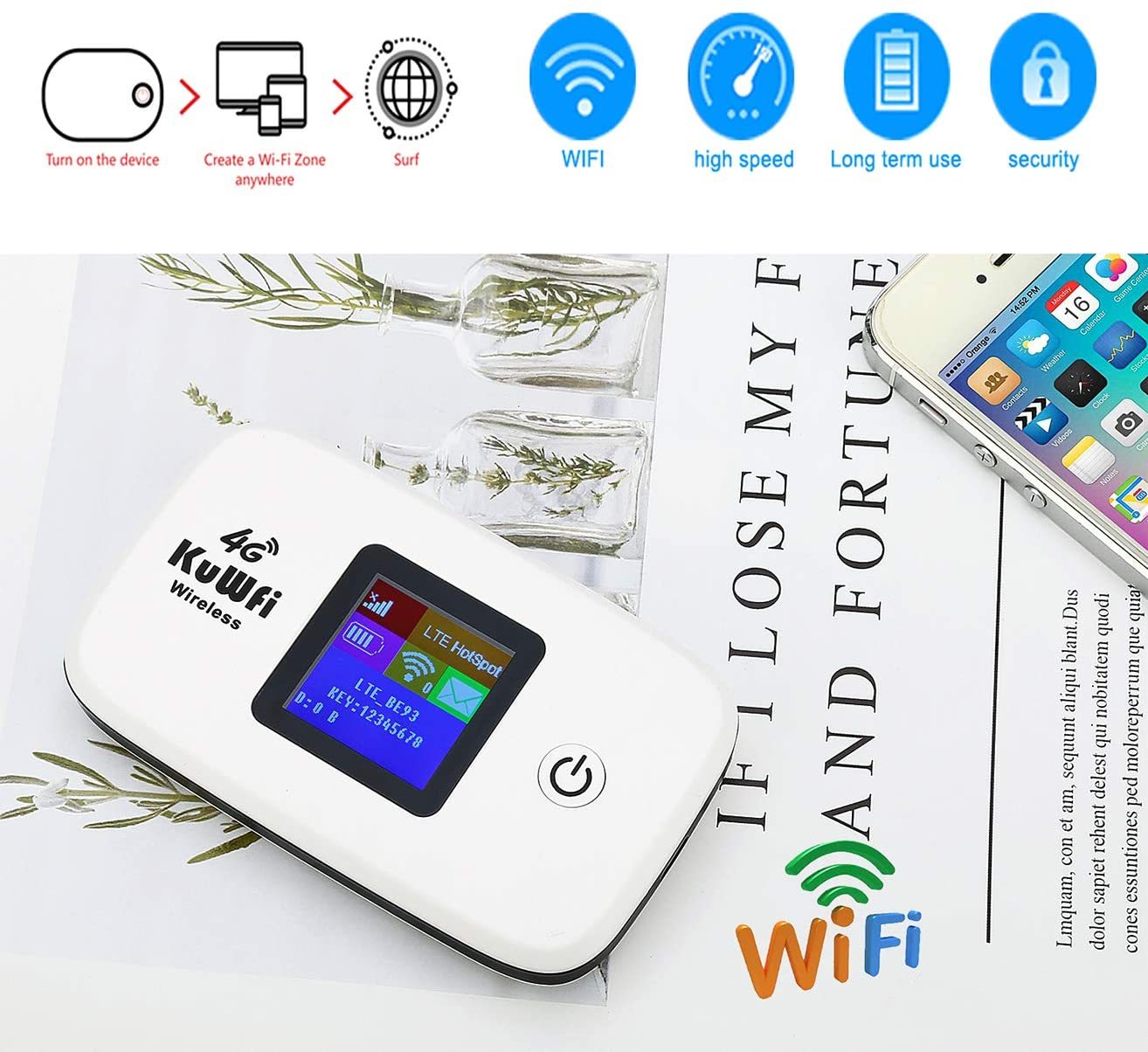

5.4G Router with screen display and With TF card slot and sim card slot
Support SD card (up to 32GB) .insert Tf Card,it can be a card reader also be one U disk.

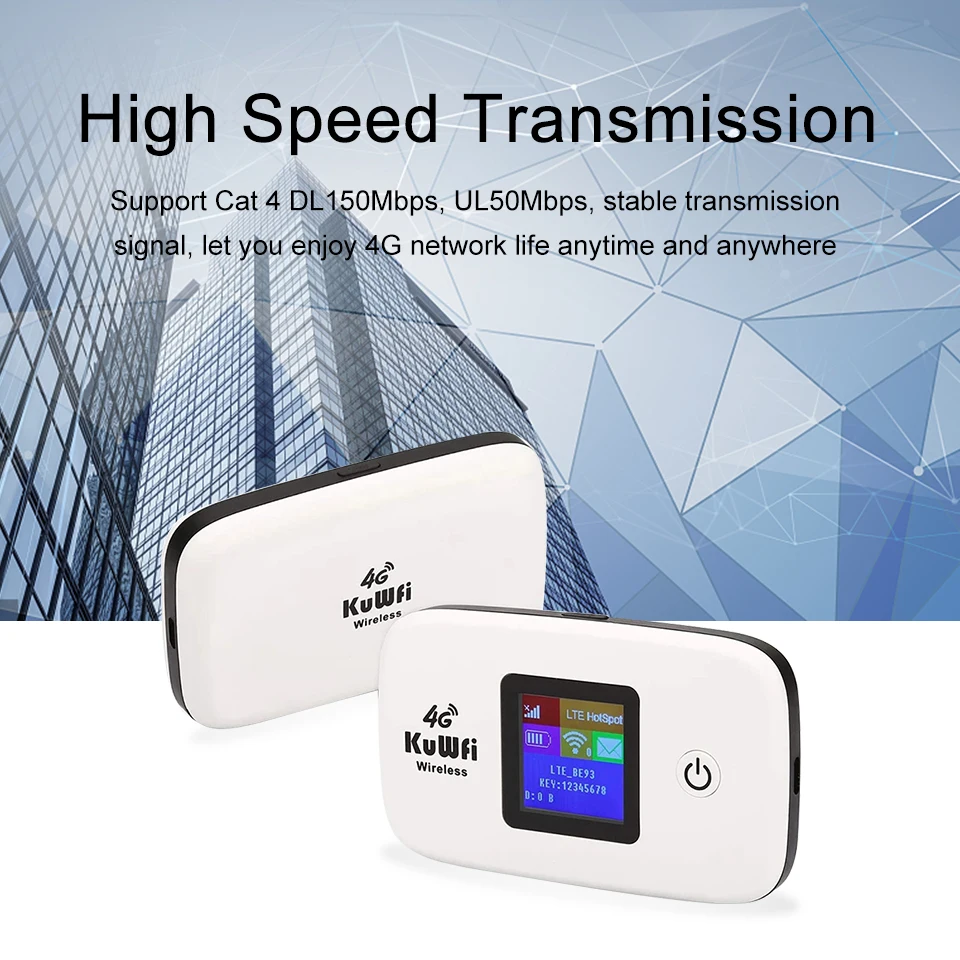

6.mini 4g router Support Cat4 DL/UL 150/50 Mbps in max, High Speed more Stable,Enjoy 4G network life anytime and anywhere
7.Lithium battery 2400mAh(please charger more than24 hours when first time charger )
8.it is easy to connect and easy to carry in hand Sharing customer Up to 10 User
9. wifi hotspot devices can cover 3- 10M WiFi distance .
Product Detail
- Main Chip:ASR(Marvell)1802
- WIfi parameters: 802.11b/g/n
- Supported users: 10 users
- Antenna: Built-in 4G dual antenna
- Encryption: WPA/WPA2
- Size: 96.5*58*17.5mm
- Network and the frequency band: TD-LTE、LTE-FDD、TD-SCDMA、WCDMA、GSM
- Transmission rate Peak rate: UL/DL:50Mbps/150Mbps
- The interface type: Micro USB 2.0
- Expandable memory card The biggest 32G
- The power adapter: Input voltage 5V，Input current 1A
- The battery specification: 3.7V/2400mAh
- Standby time: About 48 hours
- Work time: About 6.8 hours
- Charging time: About 2.4 hours
- Supported by the operating system: Windows8/Windows 7/VISTA/XP(Version SP2 and above)
- Working temperature: -10°C～+45°C
- Storage temperature: -20°C～+70°C

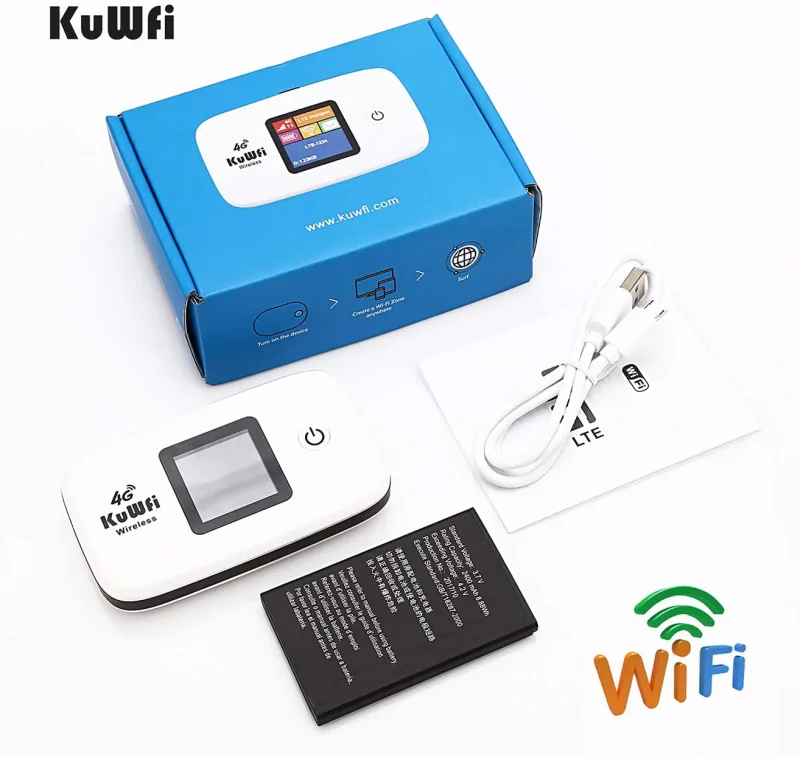

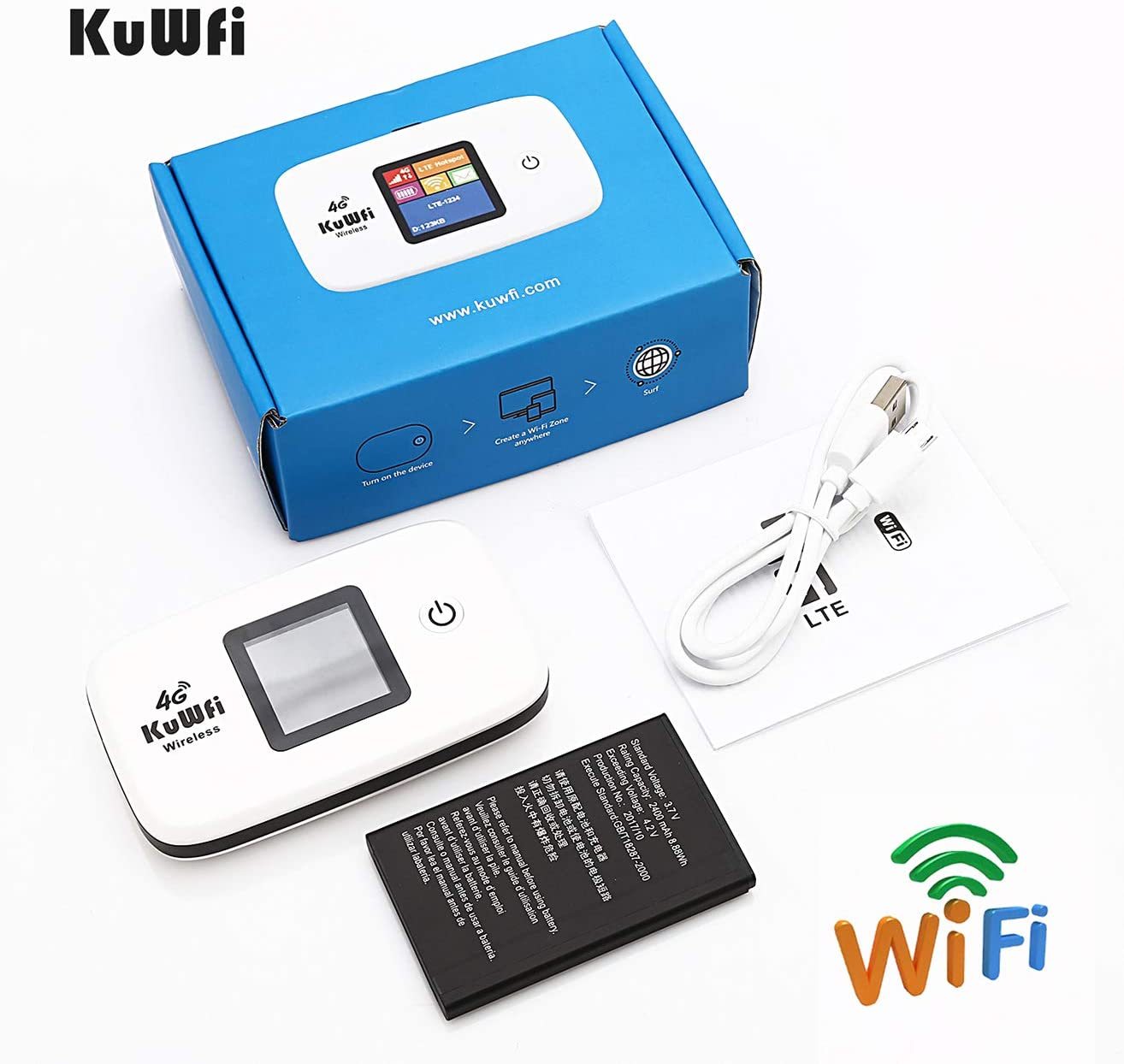

Package Listing
1*4G Router
1*USB Cable
1*English Manual
How to use the router ?

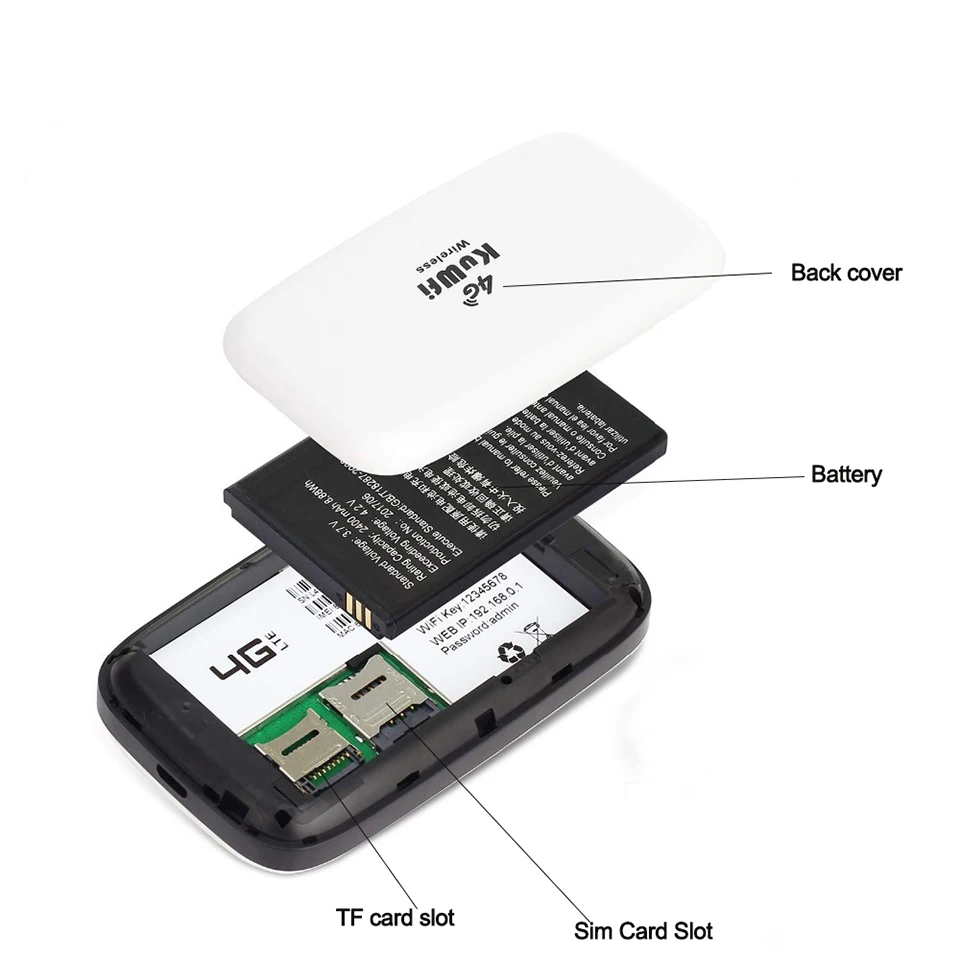

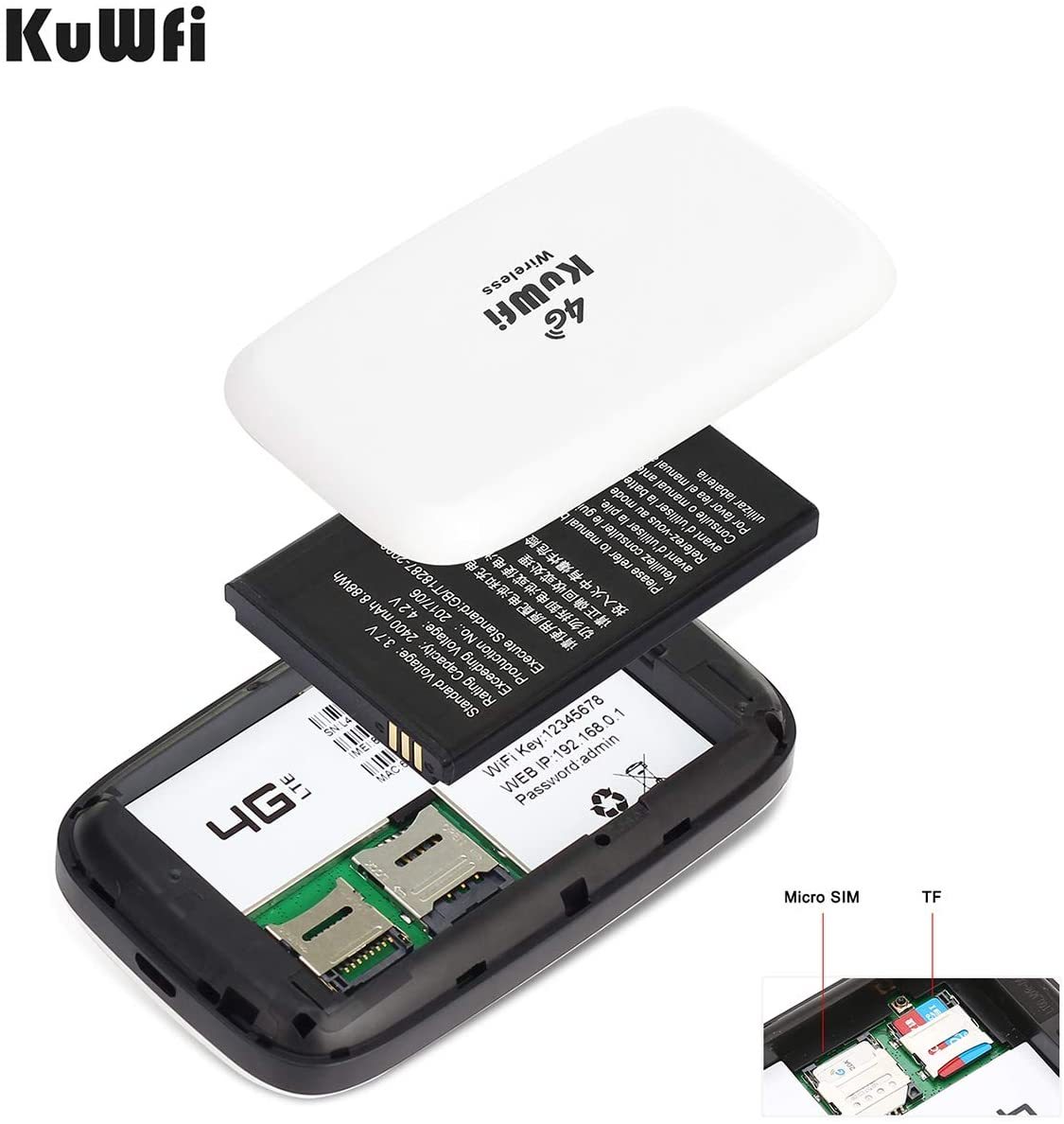

1 open the router Cover case ,then pulg in to Micro SIM Card to sim card slot
2.find the wifi list on PC or Mobile phone
connect the wifi SSID LTE-XXXXX Password is 12345678

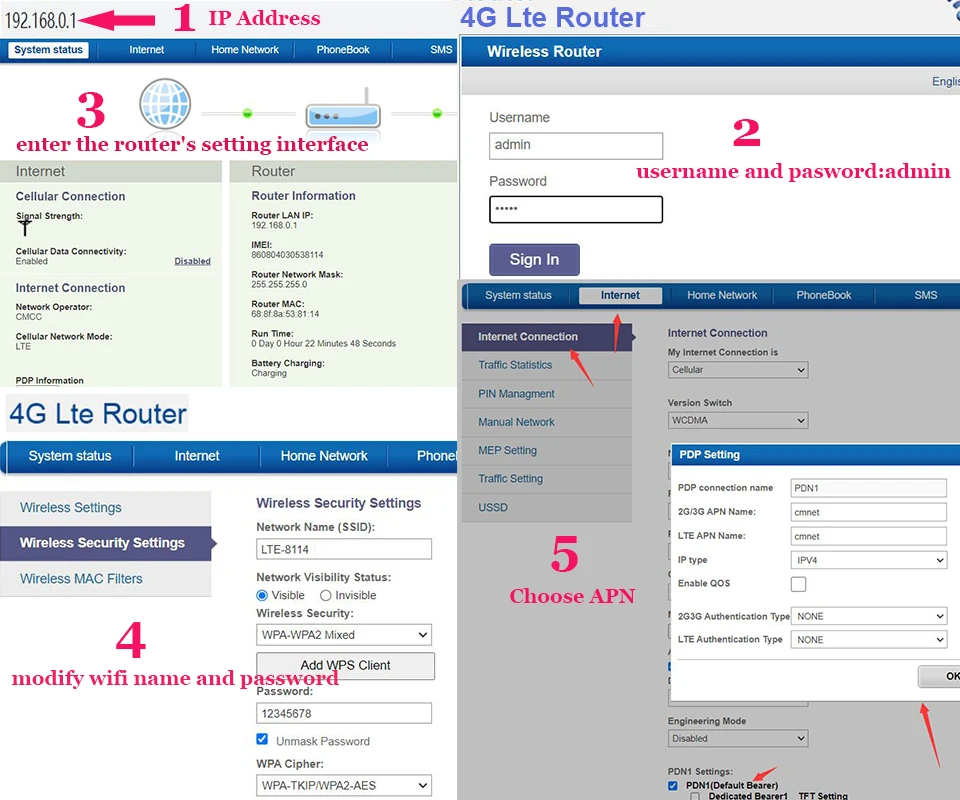

how to Log in web interface
log in web UI 192.168.0.1, and see web interface show work Cellular Connection detail including Internet Connection

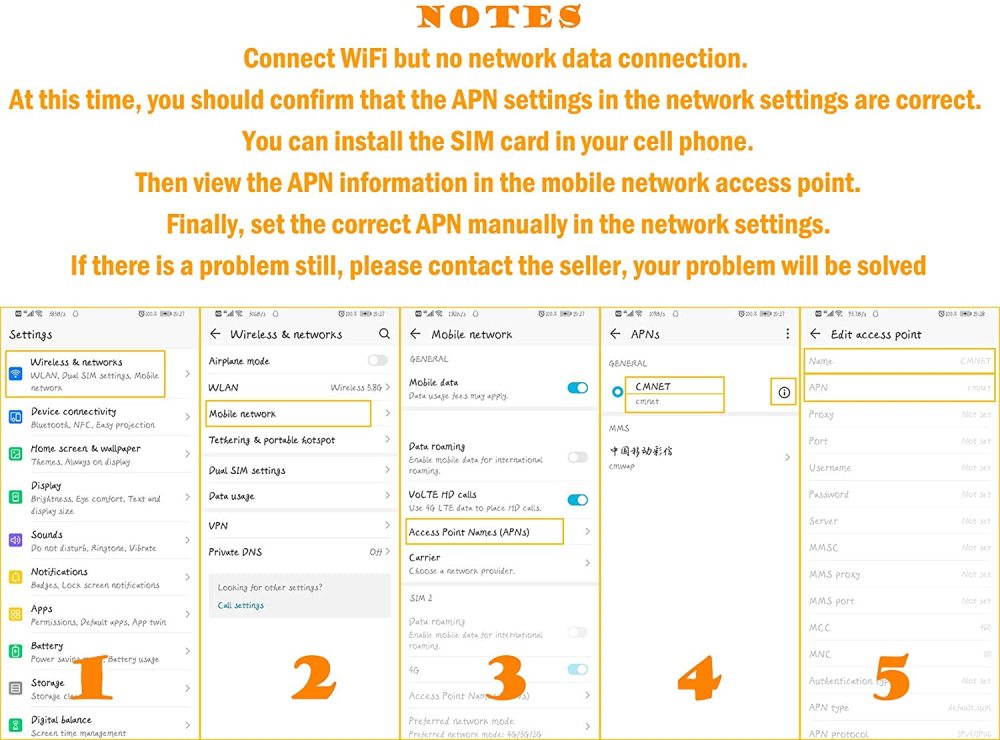

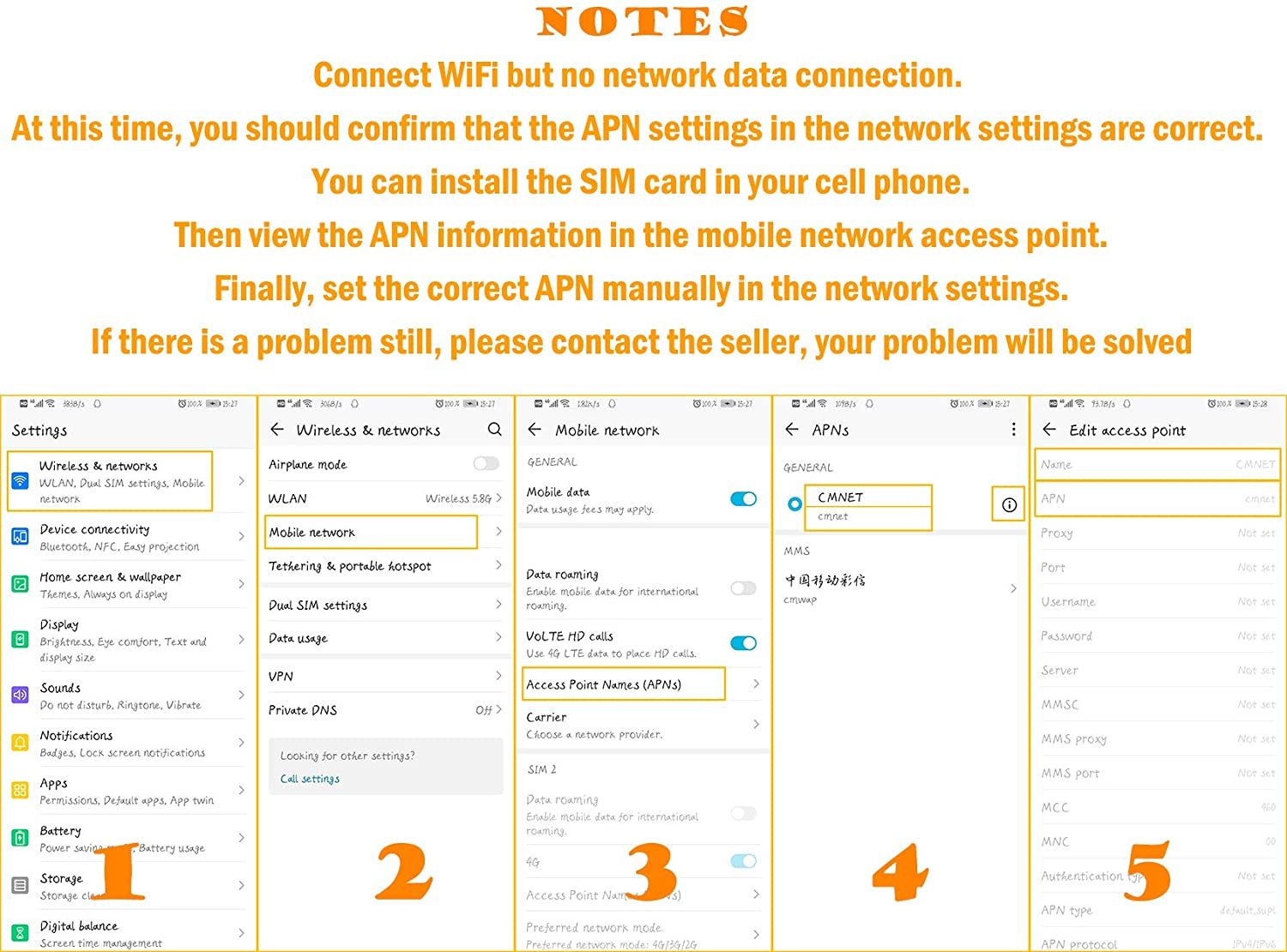

Network Operator and Cellular Network Mode. if sim card network band not support , it is show no service ,if show sim card name signal but cannot search internet or limited service, it mean that need to revise APN.
