Product Description
Please noted :it can work in RU ,EU ,Asia,Middle East ,North America，South America
R9-1
4G LTE FDD:B1/B3(2100/1800MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B1(2100MHZ)
Working in most of Asia
R9-2
4G LTE FDD:B1/B3/B8(2100/1800/900MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in most of in EU,Asia,Africa
R9-3
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in all off EU ,Asia ,Africa,Oceania
1.KuWFi 4G WiFi router provides a wireless transmission speed up to 300Mbps,4G speed up to 150Mbps,
2.4g wifi router also support Internet access/PPPoE work mode , if you don have 4G sim card , you can use connect to modem work ;
3.Equipped with 4 LAN interface with power button on the left size.when the 4G router transmits the WiFi ,you may connect to other Devices simultaneously.
4.It is Easy to connect and easy to carry in hand Sharing customer to 32 WiFi users,All you need to do is inserting the SIM card, then you will enjoy the WiFi with your friends with this portable 4G LTE router.
5.4G Transfer rate:TDD-LTE: 150Mbps DL / 50Mbps UL TD-SCDMA: 2.8Mbps DL / 2.2Mbps UL
Product Detail
CPU:MT7628N
Memery:Flash/RAM: 1G Nand Flash
Power supply:,DC 12V/1A
RJ45 Port:5x RJ-45 port(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) for WAN/LAN Auto
LED indicator:1 Power indicator
2 System indicator
3 Modem indicator: 3G with blue,4G with green.
4 WIFI indicator
5 WAN/LAN indicator

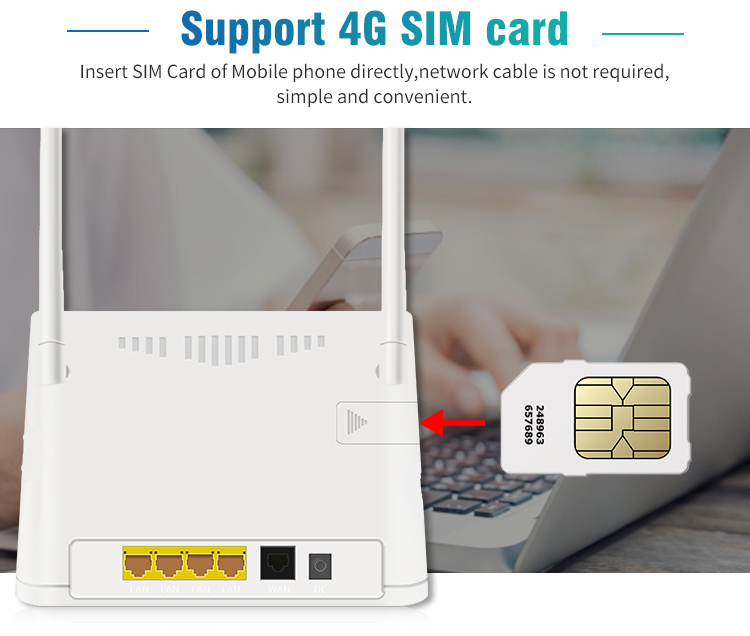

SIM card:Support Micro sim card
Antenna:External:1x 5dbi Wifi Antenna;1x 5dbi 4g antenna
Transfer distance:Indoor 10-30 meters as far as ;
outdoor as far as 10-50 meters (owing to the different environment)
4G Transfer rate:TDD-LTE: 150Mbps DL / 50Mbps UL
TD-SCDMA: 2.8Mbps DL / 2.2Mbps UL
MAX. end users number:32
