Product description:
1. Higher wireless capacity
Dual band 4 spatial streams, CPE gives out 1800Mbps (600 + 1200) wireless throughput, makes you calm
Enjoy UHD video, online games at home.
2.5G & WiFi-6 smart router system is based on a brand new embedded platform, it can be satisfied
Growing demand for mobile connections and provide fast speeds beyond your imagination. CPE is compatible with NSA/SA dual-mode, suitable for all types of network around the world,
3. Plug and play and enjoy ultra-fast broadband connection anywhere. CPE offers a new way for you to experience VR/AR/4K/8K freely and easily.
4. With built-in 802.11ax (Wi-Fi 6) technology, 5G CPE has wider wireless coverage and greater bandwidth. Meanwhile, CPE provides higher security, better network efficiency and longer battery life.
5. CPE inherits mesh technology and supports wired/wireless networks. It's so convenient to cover everything
5G coated
1) 5G network modes: SA (standalone), NSA (standalone)
2) 5G NSA bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
3) 5G SA bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
4) 5G standards: 3GPP Release 15
5) 5G SA transmission rate: 2.1Gbps / 900Mbps (up to ISP)
6) NSA 5G data rate: 2.5Gbps / 650Mbps (up to ISP)
Cellular 4G
7) LTE Category: Down Cat 16 / Up Cat 18
8) LTE-FDD: b1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/b66/B71
9) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
10) LTE down 4×4 MIMO: b1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
11) WCDMA:B1/B2/B3/B4/B5/B8/B19
12) LTE: down 1.0Gbps; Up 200 Mbps
WiFi 6(802.11ax)
1) Working radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
2) Encoding technology: 1024-QAM / OFDMA
3) peak connections: >100+ clients
4) WiFi standard: WiFi6 and 802.11ac/802.11n back
5) Antenna: External 4 pcs high performance antennas with 4 pcs FEM components.
data switching
1) 4G/5G mobile connection (APN support)
2) Giga Ethernet connection
3) Mesh: mesh + hybird
4) 2.4G/5GHz WiFi
5) We use an advanced firewall
6) MAC filter
7), WiFi, Sercurity
8) vpn end-to-end and vpn client (L2TP PPTP)
9)IPV4/IPV6
10) web/app control
11) firmware update
Equipment Specifications:
1) Memory: 16MB Flash + 256MB DDR3
2) Ethernet: 1*1Gb/s/s WAN,2*LAN 1Gb/s
3) 1 * SIM card slot (Nano-SIM)
4) Reset button
5) grid + button
6) grid + led switch
7) LED indicator
- Mesh + working condition (breathing light)
-4G status
-5 g status
-Wifi status
-Power status indicator
eight)
- Power consumption: <20W
- DC power supply: 12V/2A
- Working temperature: 0℃~40℃,
- Storage temperature: -20℃~+70℃
- Humidity: 5% ~ 95%
Package includes:

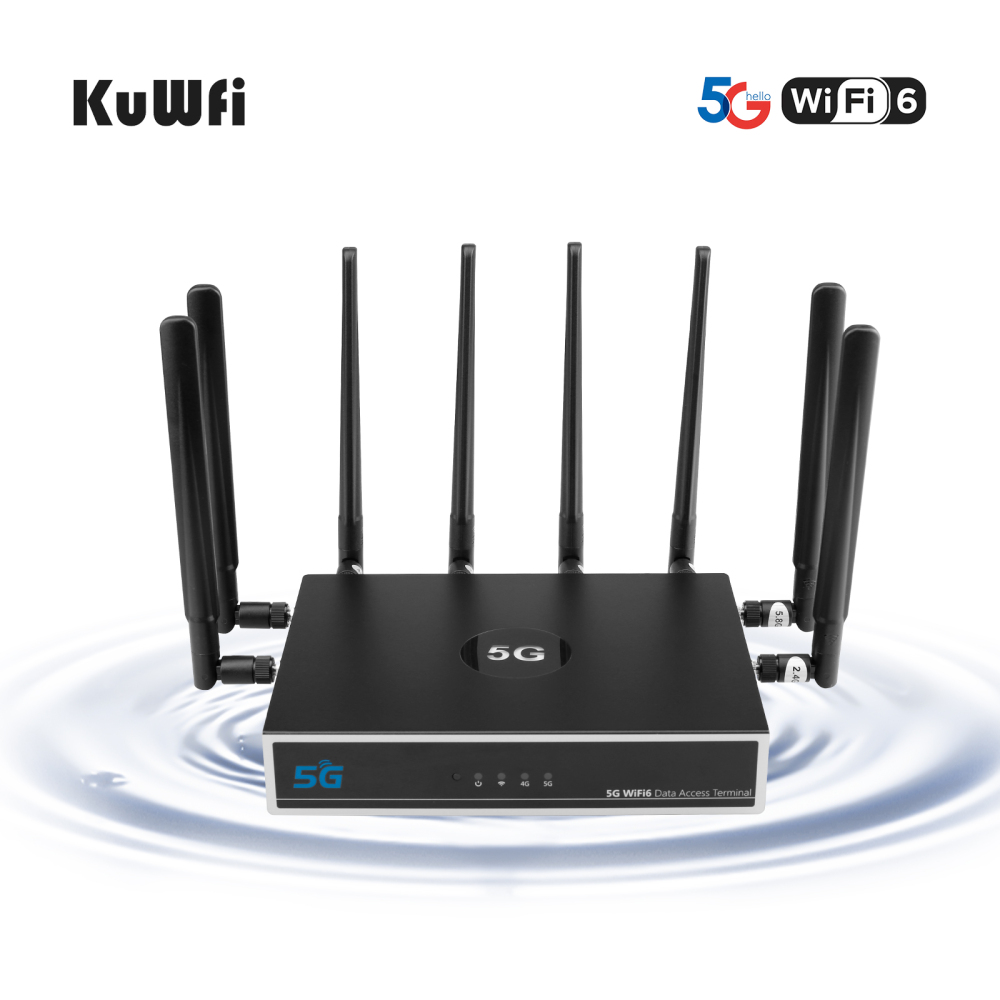

1x5G CPE router (M10K21)
1 x 1m Cat6 Ethernet cable
1x 12V/2A AC power adapter
1x quick start guide
