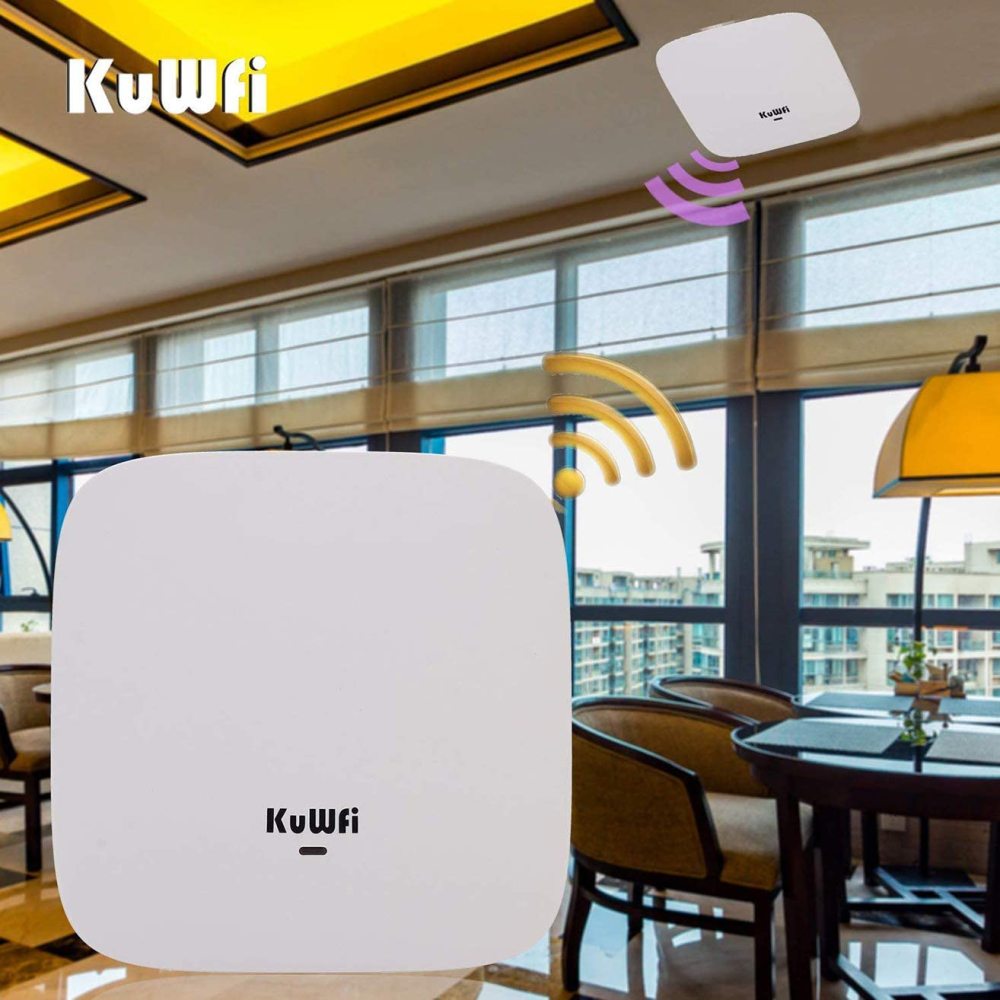

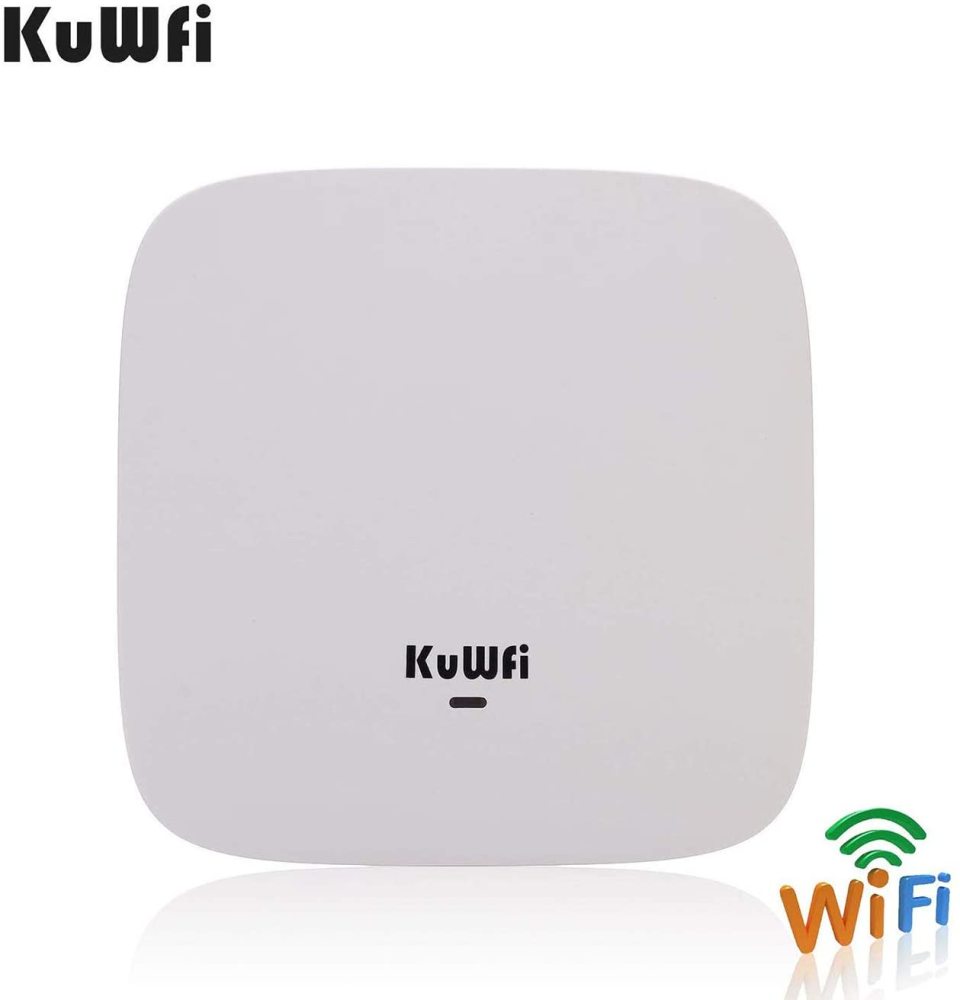

A770 is an 11ac dual band indoor ceiling mount wireless access point for hotels, cafe, hospital,school, shopping mall and home.
- Comply IEEE 802.11ac MIMO Technology, 750Mbps high speed, integrated 48V Passive PoE (Power over Ethernet), it can be installed in areas where power outlets are not readily available, easy installation and lower cost; Housed in a ceiling mountable case, the A770 can be installed on a wall or ceiling to blends in nicely with most interior decorations in the house, to extend optimum wireless signal.
- Work with WLAN Controller, centralized configuration and management, easy to achieve Wi-Fi Coverage and maintenance, access into Cloud Server to do remote monitor and Captive Portal authentication for more business value.
Wireless 802.11ac, 750Mbps MIMO Technology

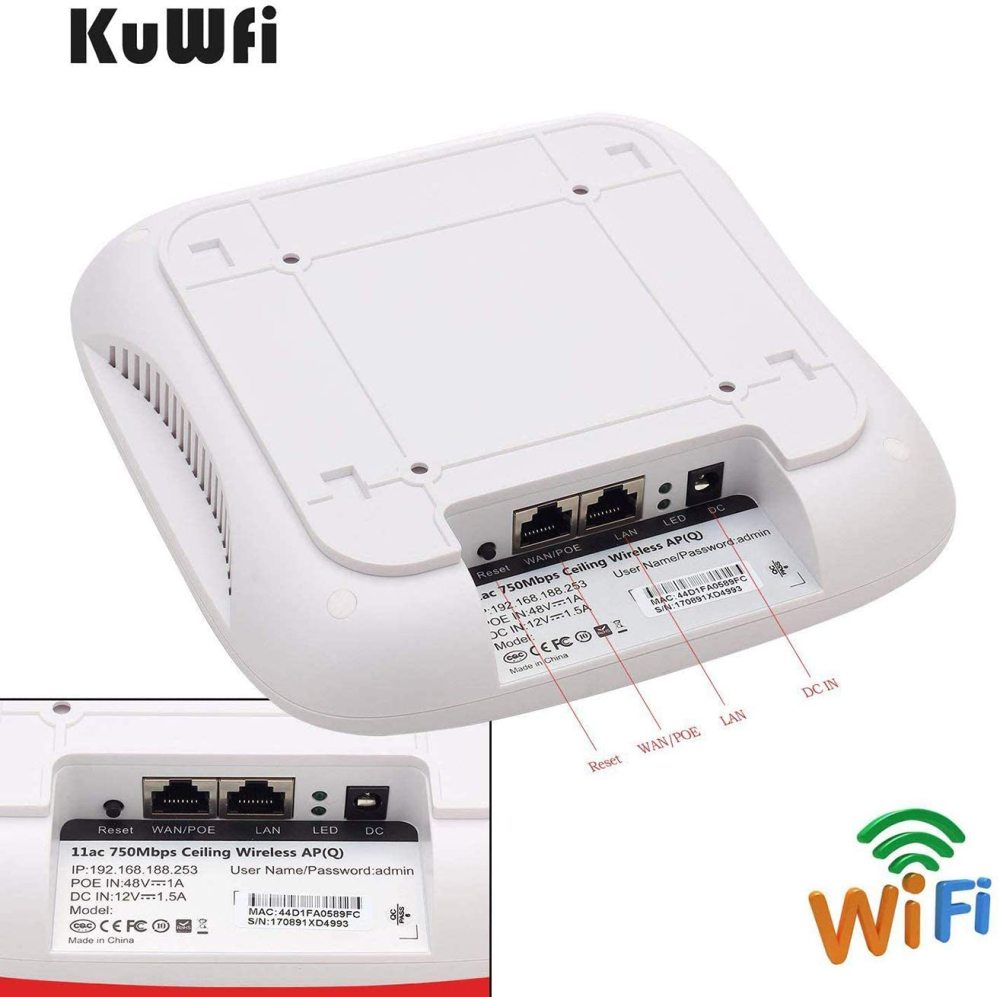

Interface 2*10/100Mbps RJ45 Ports
1* Reset Button to restore factory default
1*DC Port
Antenna :2.4GHz High Gain omni 5dBi Internal Antenna; 5.8GHz 5dBi Internal
Power :DC 12V/1A;PoE: 48V PoE
Size :188mmX188mmX50mm
Data Rate :2.4G 300Mbps, 5G: 450Mbps
Operation Mode :Gateway, Repeater, Wireless AP
Network Protocol :
- IEEE 802.3(Ethernet)
- IEEE 802.3u(Fast Ethernet)
- IEEE 802.11ac/n/g/b
Applicable to the Hotel Familia office and Restaurant

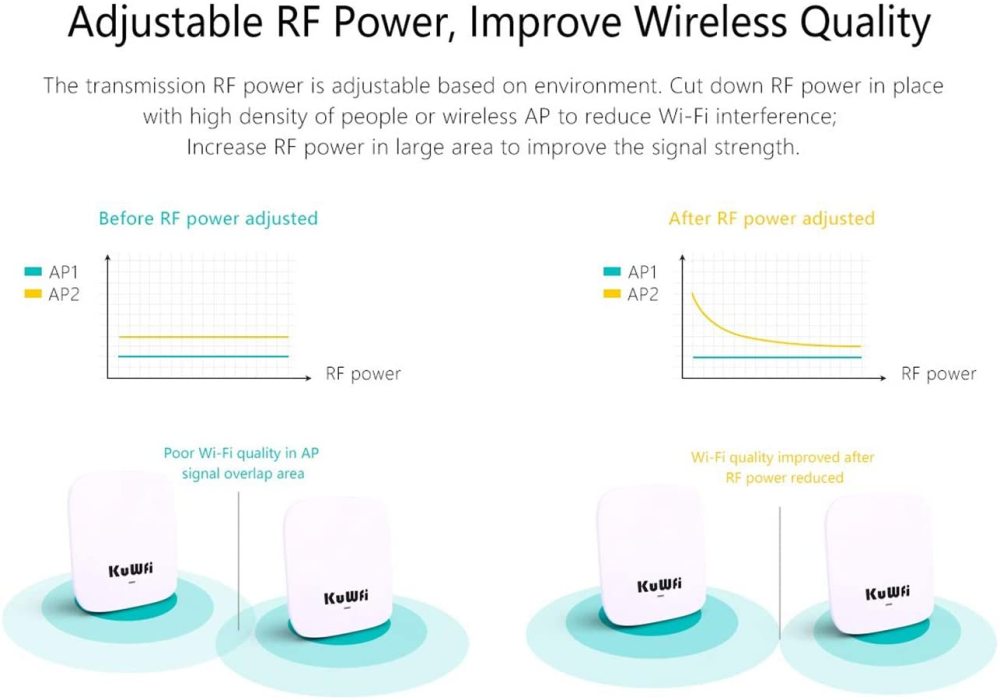

More Wi-Fi Coverage
- PCB board adopt SKYworks Power Amplifier and Low Noise Amplifier design. improved the wireless coverage and reduced the noise interference.
- Fast Networking Solution,Cut Down Maintenance Cost
- Based on CAPWAP protocol, AC controller Centralized Management,Cloud Server remote confiquration, easy in installation, monitoring and management, greatly saved the whole cost

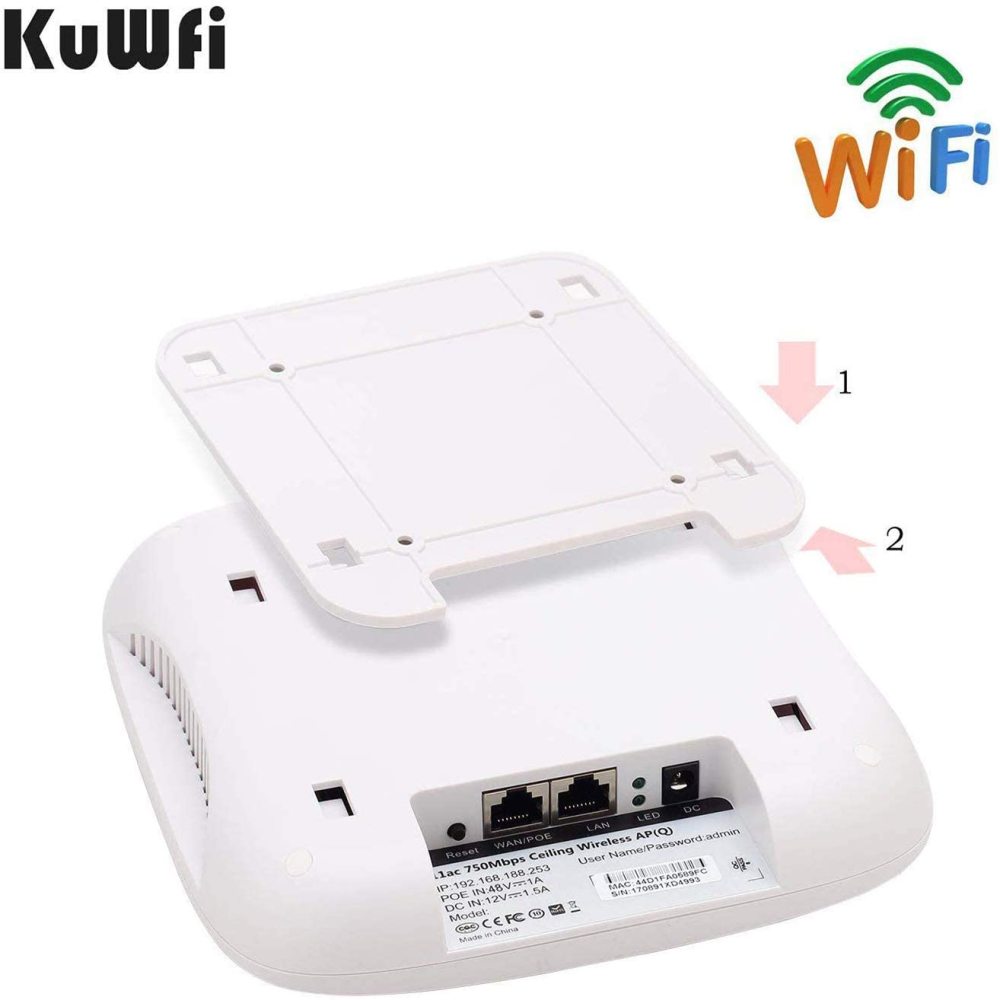

Multiple Installation Methods
