KuWFi Game Video Capture Device Card HDMI to USB3.0 HD Video Converters Game Streaming Live Stream Broadcast HD 1080P with MIC Input&Live Out for PS4

Product Description

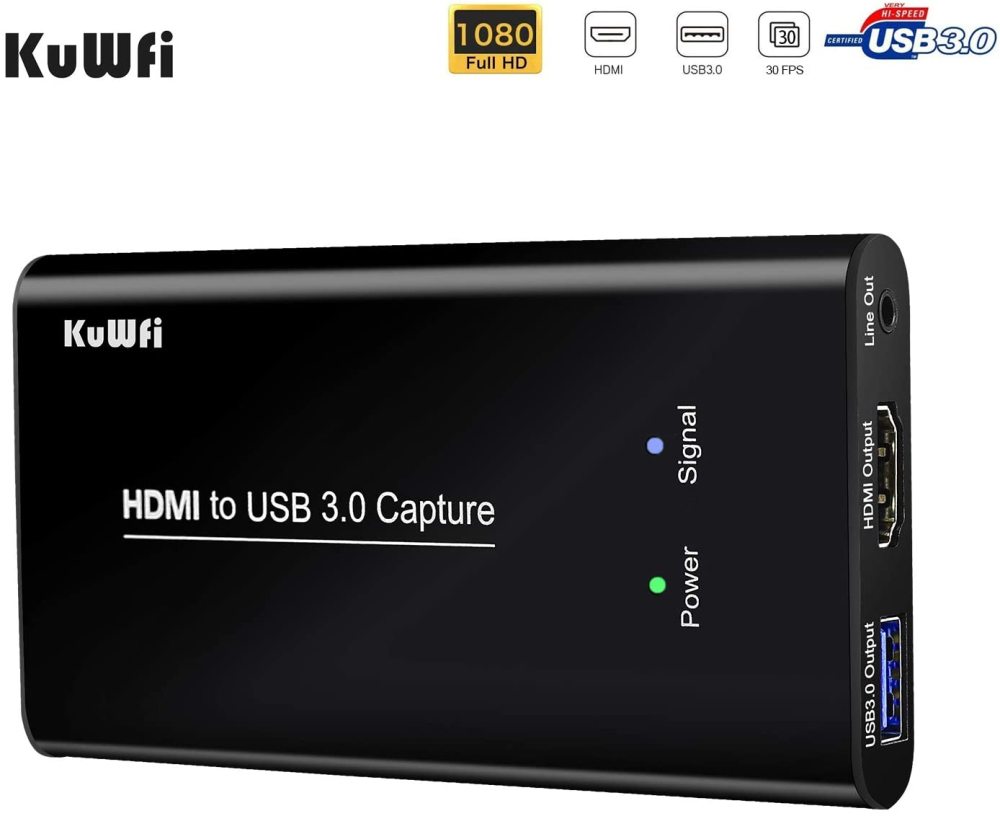

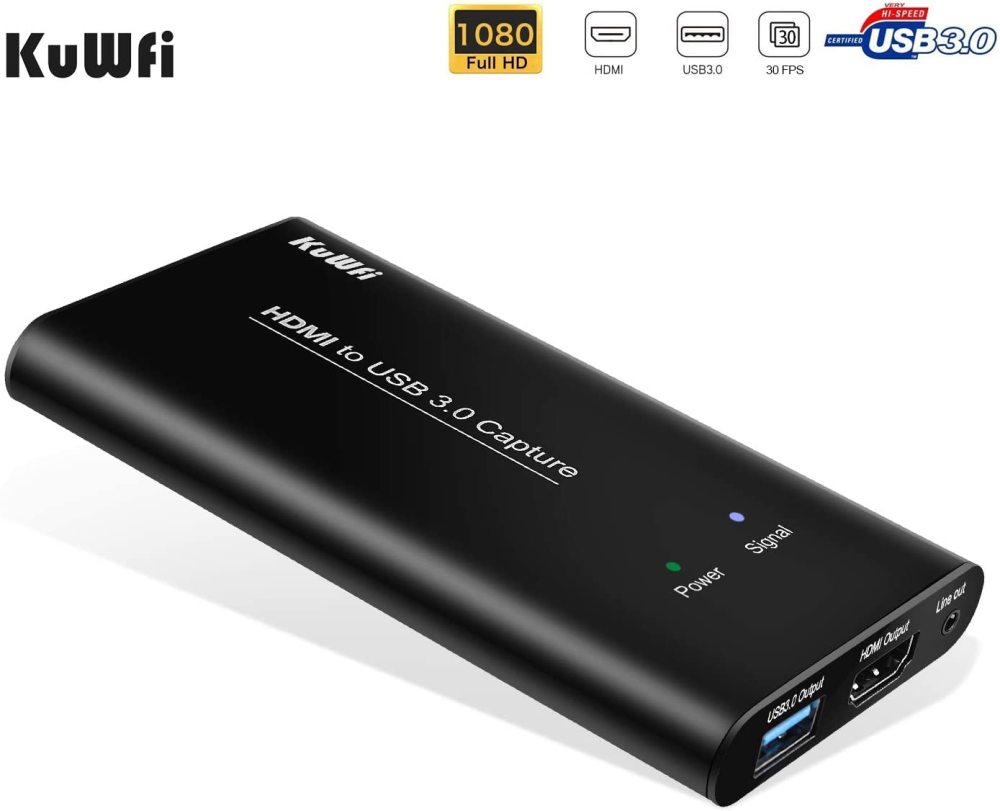

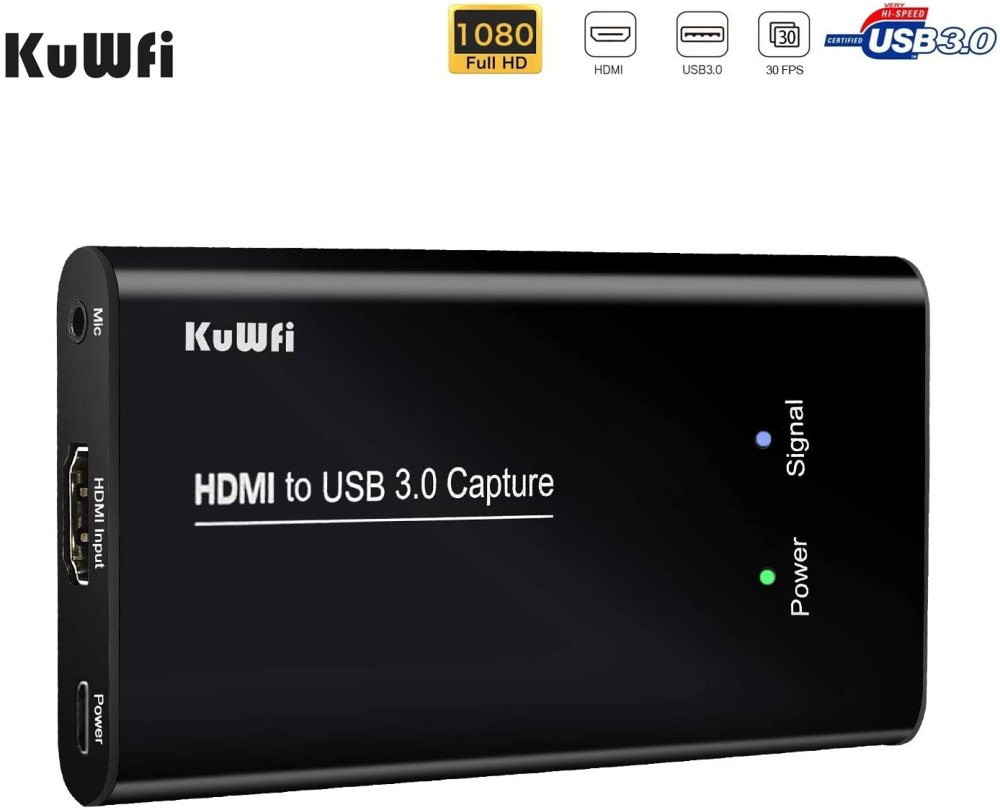

KuWFi HDMI to USB3.0 Video Capture Card

Audio and video capture : It meets the standards of UVC (USB video class) and UAC(USB audio class)

Output color space: YUV, RGB

Color space switch: Hardware Color Space Switch

Image Scale: Hardware scale

The support of OS: Windows 7,Windows8,Windows8.1,Windows10 or later, Linux OS, Mac OS

Software compatibility:

Adobe Flash Media Live Encoder (Windows, OS X)

Real Producer Plus (Windows)

VLC (Windows, OS X, Linux)

QuickTime Broadcaster (OS X)

QuickTime Player (OS X)and etc.

Development interface compatibility:

DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux); OS X (QuickTime)

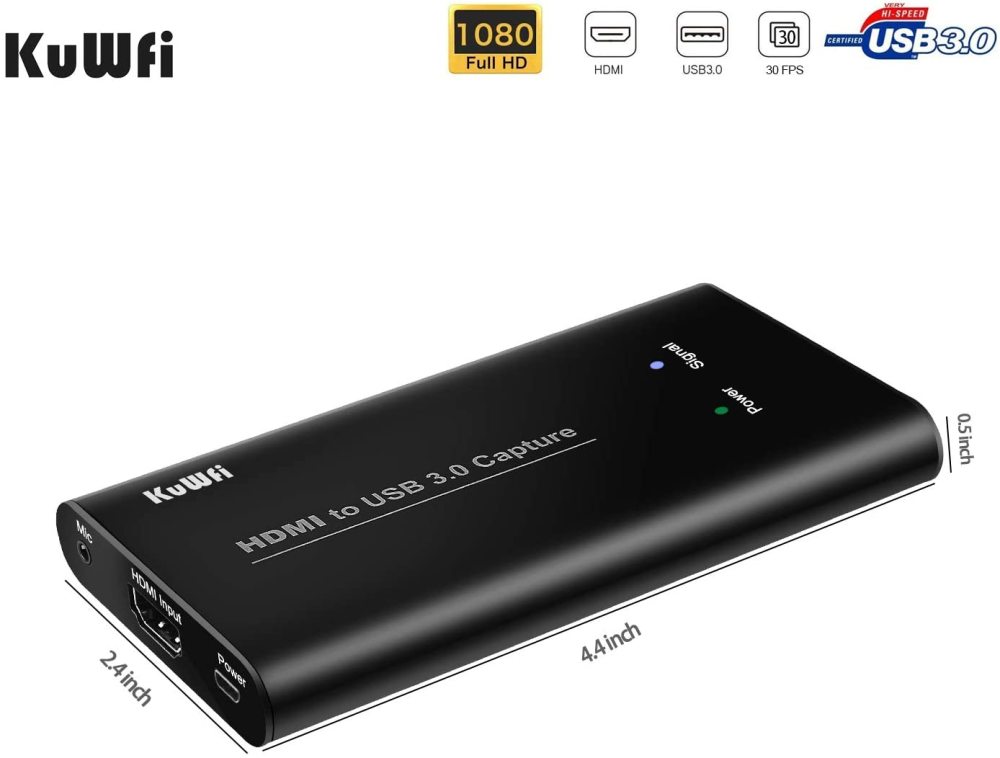

Size: 113X61X13mm

Power consumption: ≤2.5W

Working Temperature: 0-70 ℃

Storage Temperature: -20-120 ℃

Storage Humidity: 5%-90%

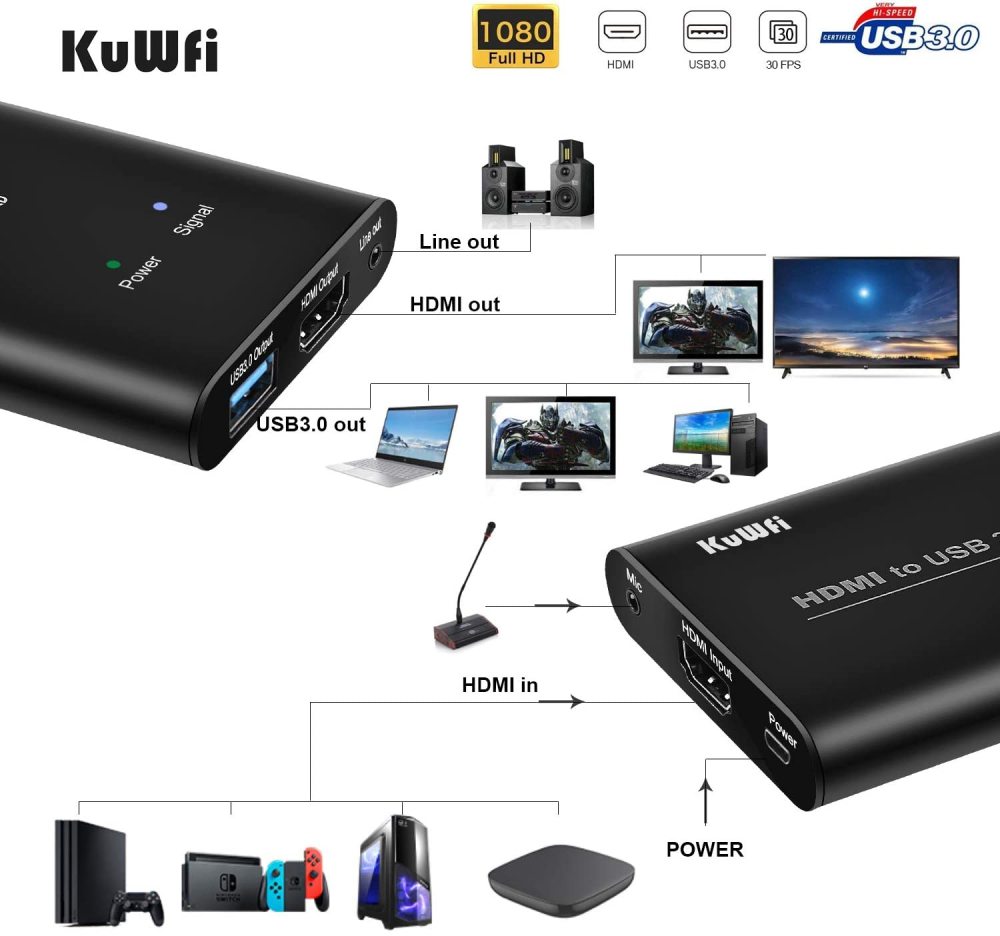

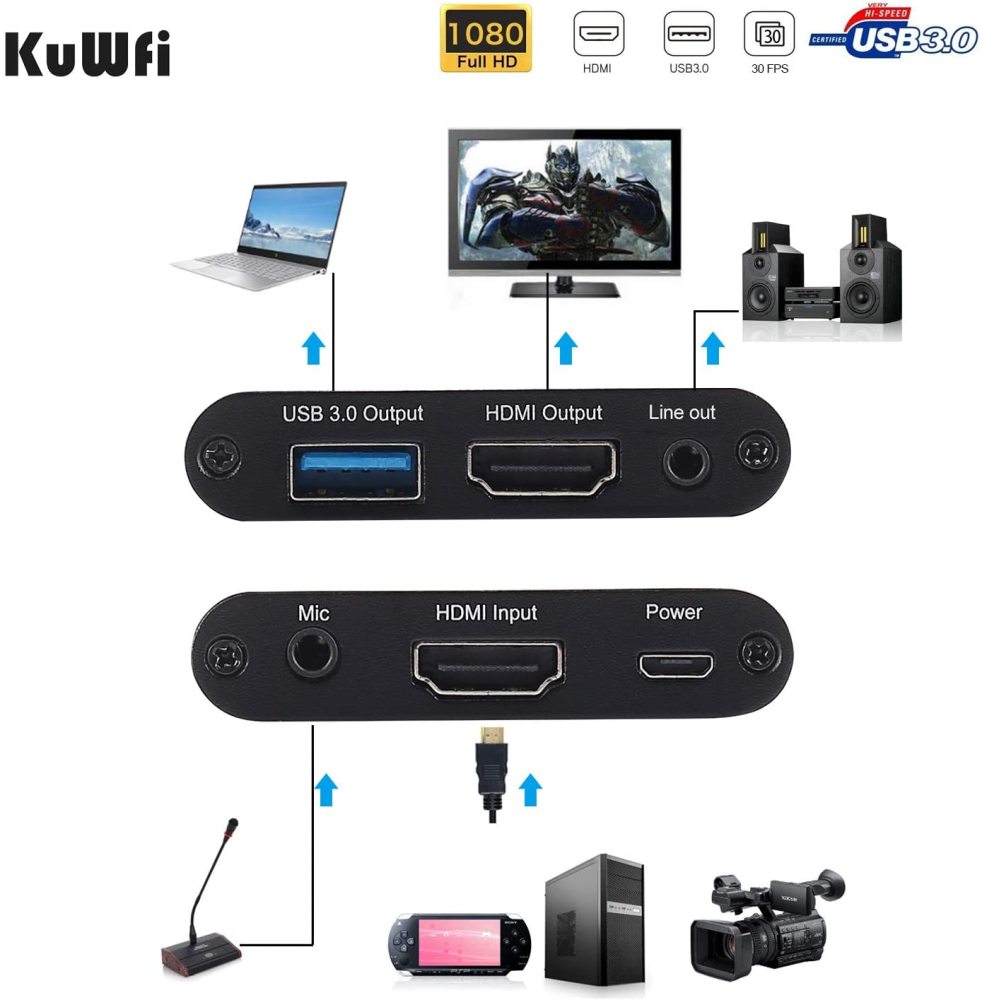

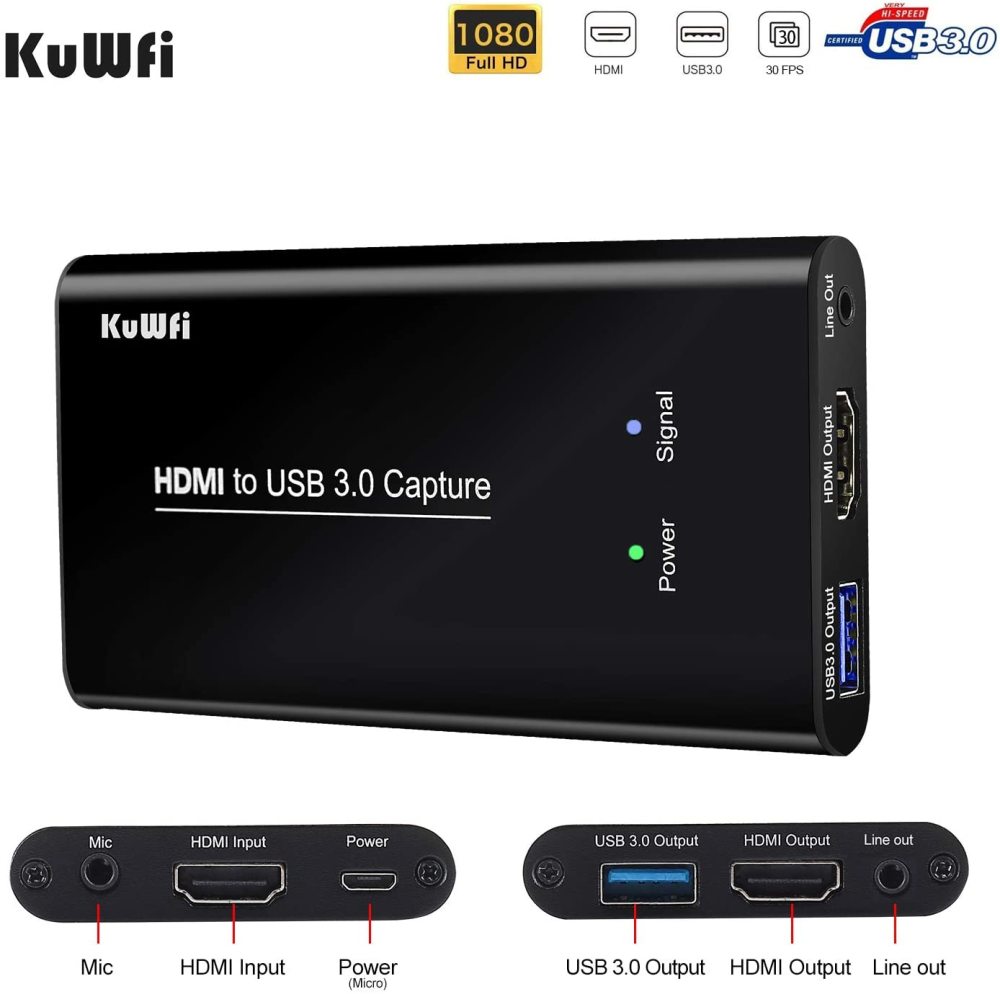

Connection:

• Input interface: 1 HDMI interface; 1 Mic interface; 1 Live out; 1 Micro USB Power interface
• Output interface: 1 USB3.0, *237MB/s throughput MAX ; 1 HDMI loop out interface

HDMI input:

1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P,1280x1024, 1280x960, 1024x768, 800x600, 640x480

HDMI audio input: 1 LPCM audio signal

HDMI input formats: It meets the HDMI 1.4 standard, and supports 1080p/60Hz 12 bit, (RGB, YUV)

Output Formats Resolutions:

640x480/720x480/720x576/800x600/1024x768/ 1280x720/1280x960/1280x1024/1366x768/1360x768/1440x900/1400x900/1680x1050/1920x1080

Frame rate: 25/29.97/30/50/59.94/60 fps

Video Sampling Rate : HDMI: 165MHz
