- KuWFi outdoor AP single-frequency outdoor CPE works in the 2.4GHz frequency band, supports 300Mbps AP, repeater functions, can access more wireless clients

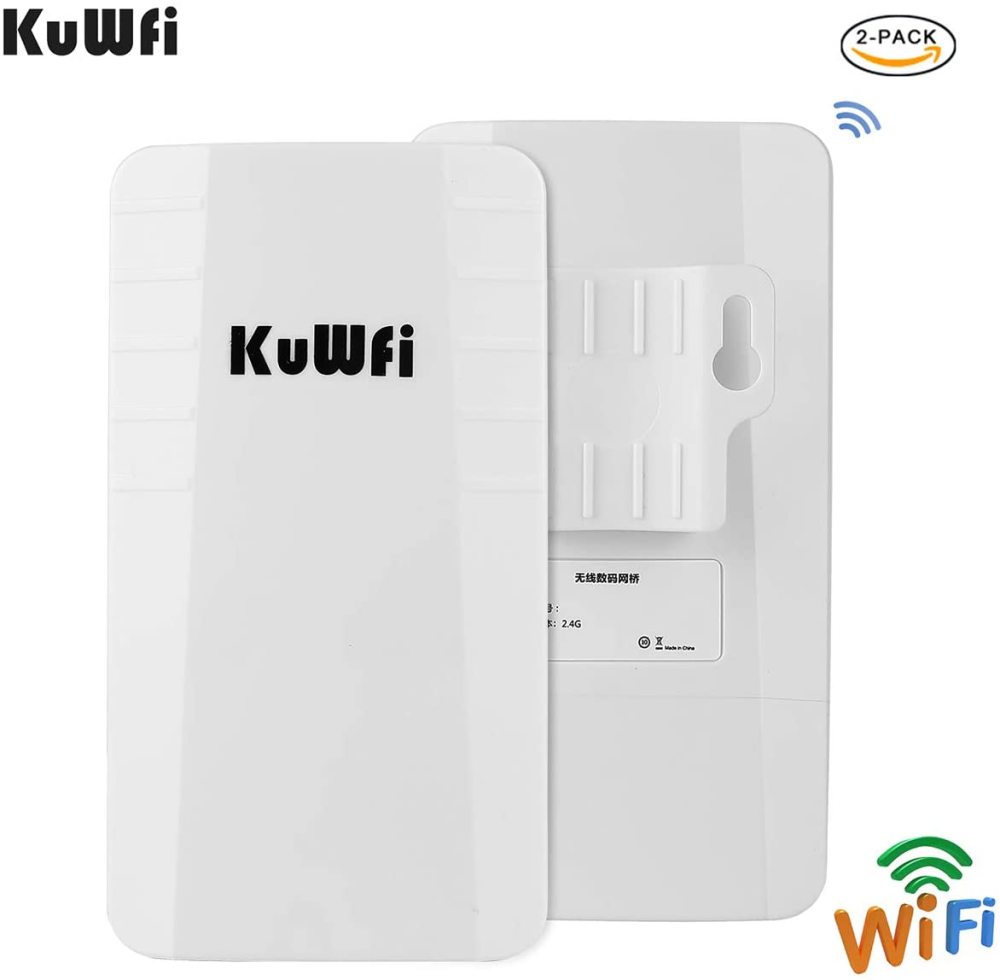

- Point to Point Wireless Bridge uses dustproof and waterproof shell, all-weather sunscreen, waterproof, dustproof seal design can be used in various outdoor Working in the environment
- Long Range WiFi Extender Outdoor Wireless Bridge CPE also supports PoE remote 100M network cable power supply and DC power supply mode, convenient management, support digital display pairing information for remote pairing debugging. Units work at the same time and LED show same digital number, mean have paired
- Wireless Access Point is the preferred device for your network topology, adopts novel shape design, gives you a brand new Internet experience.Very economica for outdoor monitoring projects especially
- KuWFi Outdoor AP Devices. Quality is guaranteed. Lifelong technical support. If you have any questions, please feel free to contact us by email
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Description
KuWFi Outdoor AP 2.4G 300Mbps Point to Point Wireless Bridge SY200
Hardware Specification:
Chipset: MTK 7628KN
Flash: 1MB
RAM: 8MB
Frequency: 2.300GHz ~ 2.4835GHz
Transfer Protocol: IEEE802.11 g/n

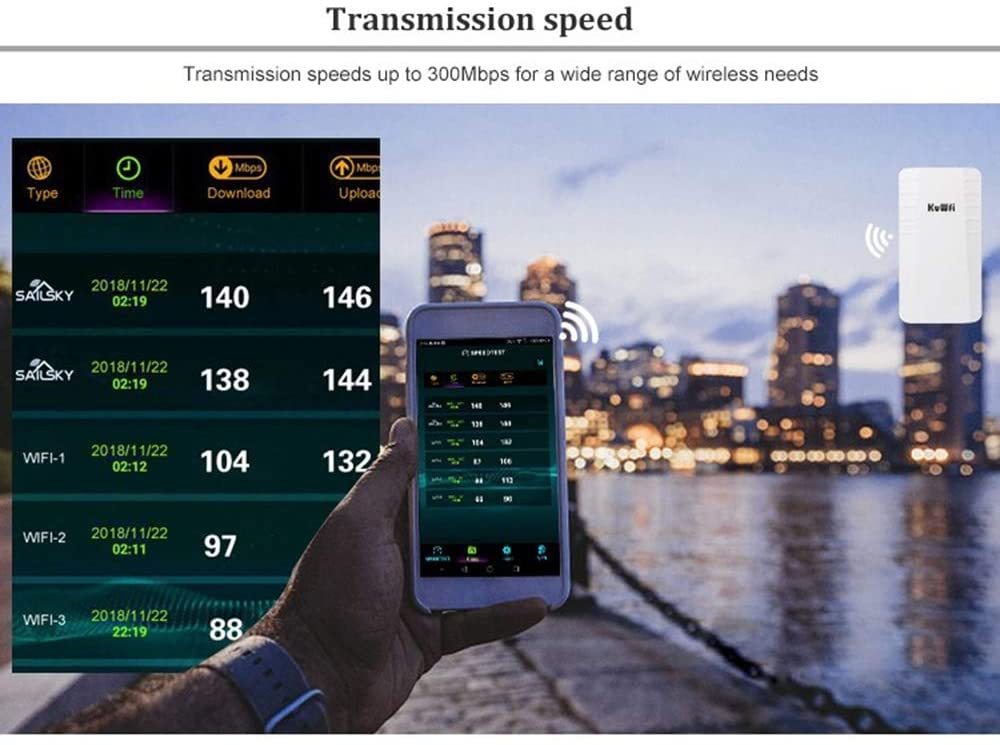

Transmission Rate: 2.4GHz :300 Mbps
Modulation mode: OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Output Power:
802.11n: @MCS7:12±2DB, @MCS0:14±2DB
802.11g: @54M:13±2DB, @6M:15±2DB
802.11b: @11M:15±2DB, @1M:17±2DB
Receiving sensitivity:
802.11n: -70dbm@MCS7, -88dbm @ MCS0802.11g: -72dbm@54Mbps, -88dbm@6Mbps 802.11b: -85dbm@11Mbps, -94dbm@1Mbps
EVM:
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB
Frequency offset ±20ppm
Interface: 1 10/100M adaptive WAN port (POE 24V 0.5A)
Power supply: POE 24V 0.5A DC12V-24V/1A
DIP switch: Define product AP mode and reepater mode

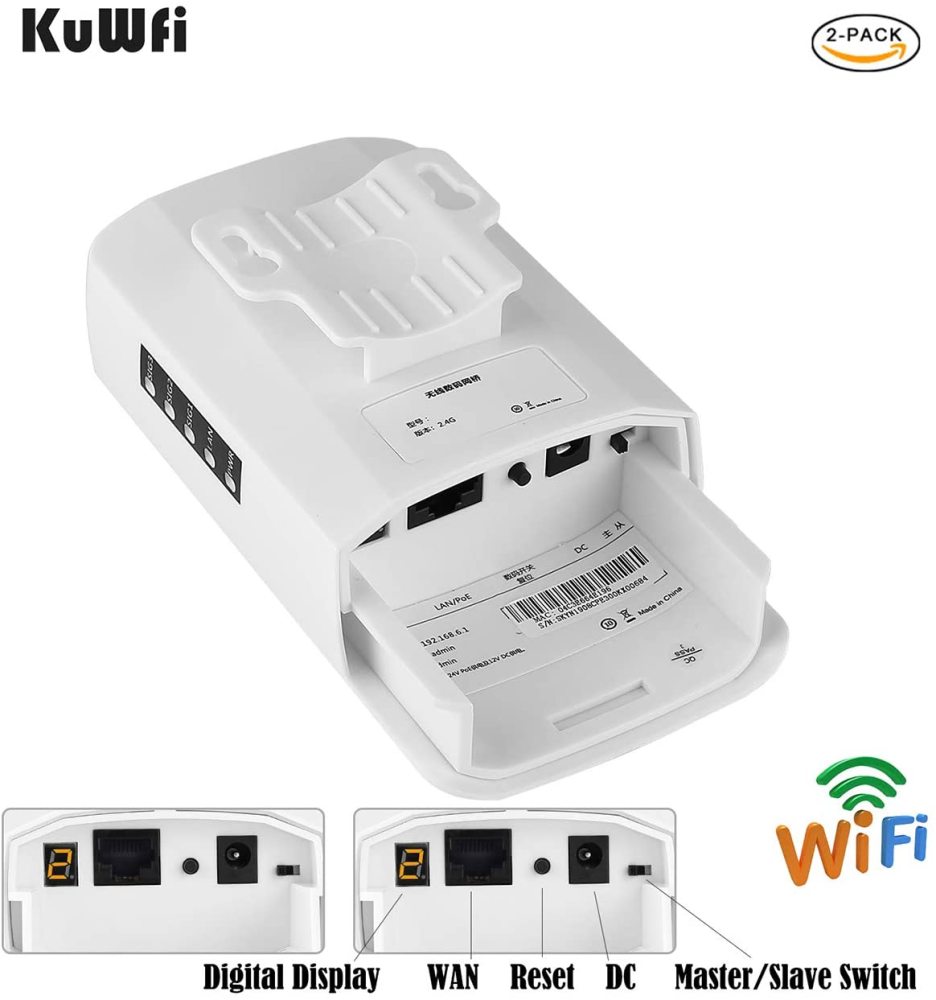

Reset button (long press to reset, short press to debug digital display plus or minus)
Status Indicator: POWER LED,WAN LED,LAN LED,LINK LED
