- ★ 【4K HDMI Matrix 4 In 2 Out Matrix Switch】 4x2 HDMI Matrix routes four HDMI sources to two HDMI displays at the same time. It Combines the functions of HDMI splitter, switch, 4 HDMI Inputs switch or split to two HD Displays. It can display same or different image on your television .
- ★【4K@60Hz ULTRA HD RESOLUTION】It supports up to 4K2K 60Hz YCbCr 4:4:4 and HDCP2.2 resolution(Downward Compatible) , Support HDMI V2.0 and HDR . Support 2.0/ 5.1/ ADV three kinds of audio mode options / Supports ARC ,TV audio will return and out by the Optical Port;(Note: only the OUT A port supports ARC function）/Supports HDMI audio separation, can output by optical and 3.5mm jack at the same time .

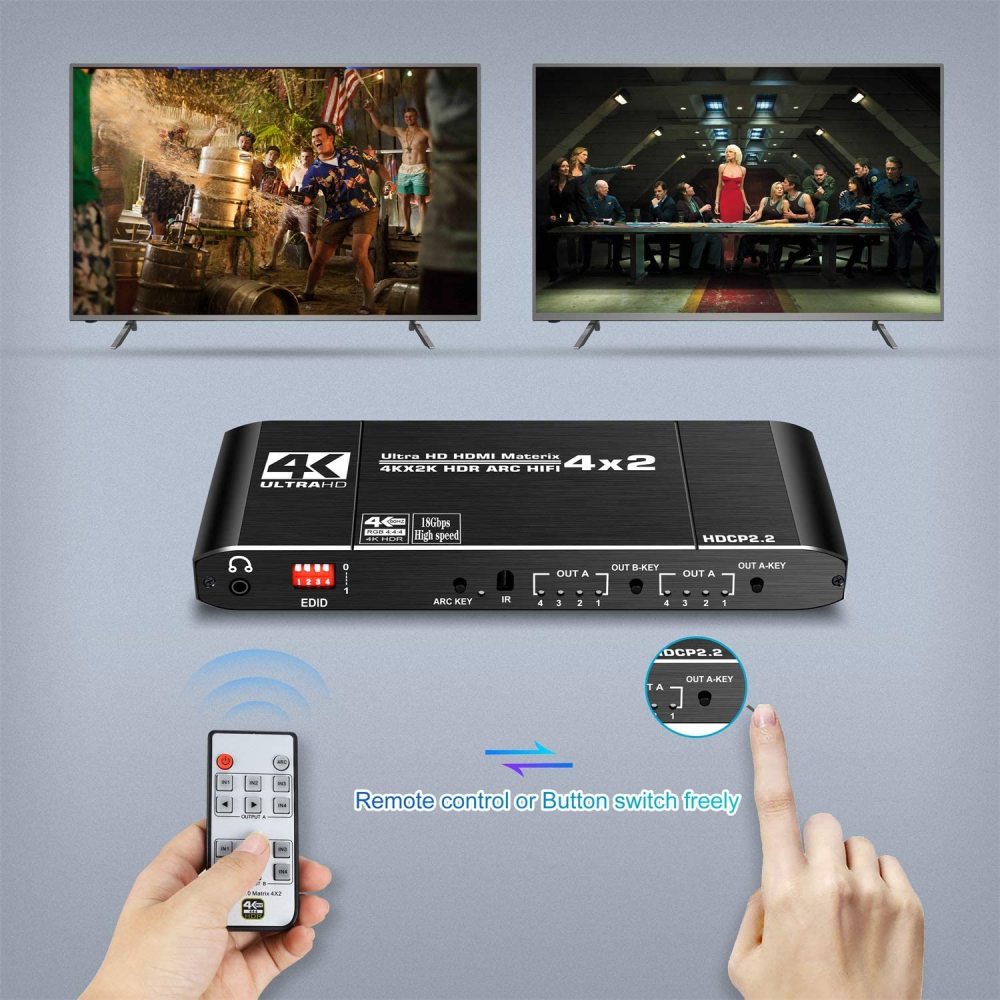

- ★【Easy to Operate】 Inputs can be switched with the IR remote control，also can be controlled by two switch buttons. (The LED indicator clearly shows the current input source of the device you are using, and displays the operating status of the device in real time. The product package is equipped with the latest infrared wireless remote control ).
- ★【Widely Compatible】With EDID management, make it compatible with most of the HDMI source and sink devices. This 4x2 HDMI Matix Switch compatible with any HDMI devices such as PS4 Pro, Xbox 360,PS3, Beamer,DVB Receivers, Blu-ray Player, Laptop and HDTV/HD Monitor etc. It Supports LPCM 7.1,Dolby digital, DTS, DTS-HD, DSD and Dolby True HD Audio.

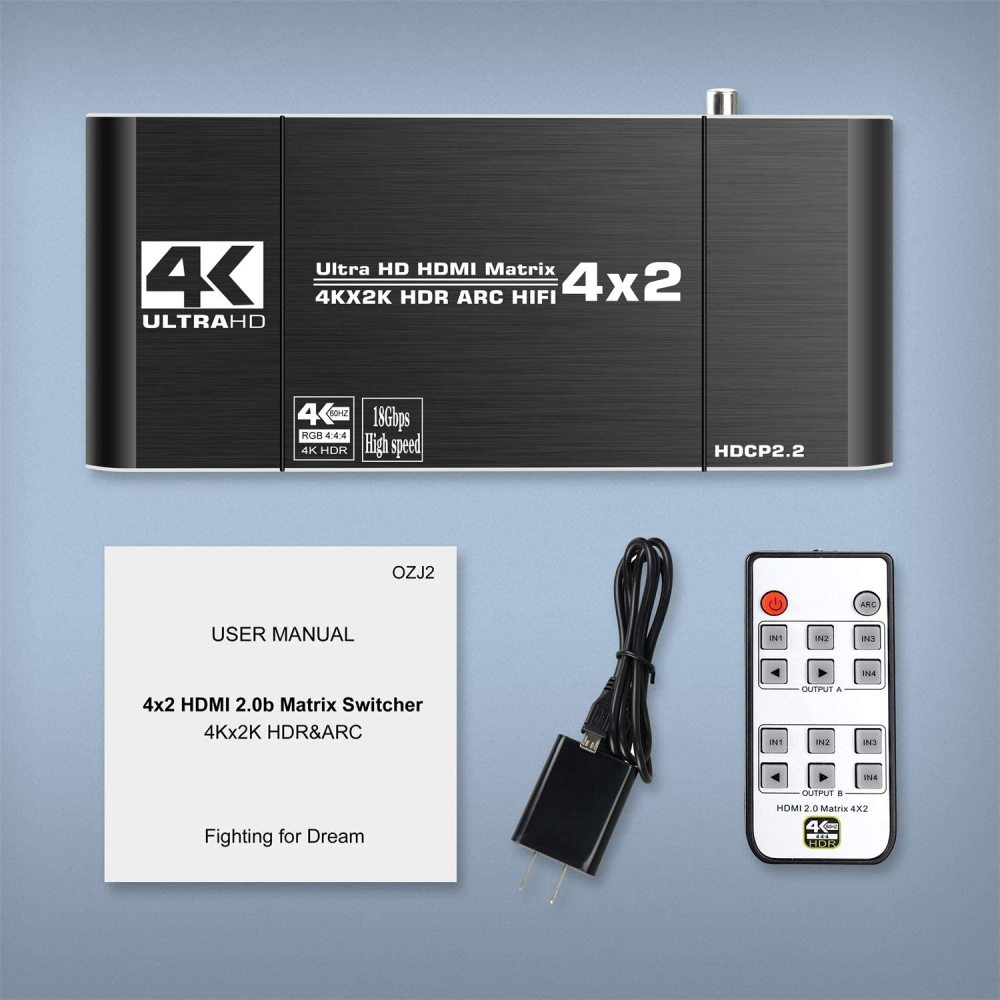

- ★【1 YEAR WARRANTY】- We guarantee you a 1 year Money Back Zero Risk purchase on the HDMI 4k switch. Just contact us via Amazon. (YOU WILL GET: 1*HDMI 2.0 Switcher +1*Remote Controller+1*Power Adapter+1*User Manual).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
Color:
Black
4x2 HDMI Matrix 4K 60Hz UHD 2.0v Switch Splitter with Audio Extraction ARC EDID IR Remote Control YUV 444 HDCP2.2 HDR (100% Brand new and High quality)
INTRODUCTION

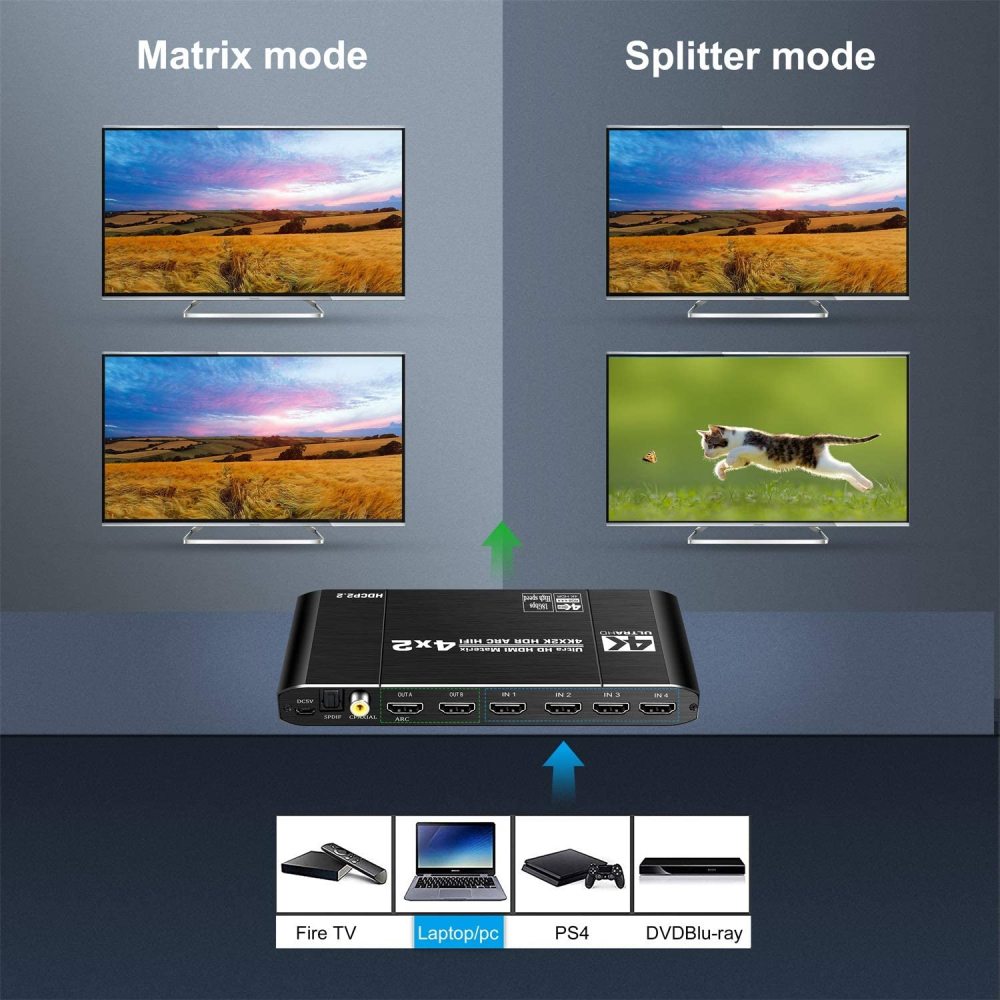

* This 4K 4x2 HDMI Matrix allow users select any of the four HDMI signal sources to display on any two display devices. The maximum resolution reach up to 4K2K@60hz YUV4:4:4, supports HDMI ARC and audio extraction.
* Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES :

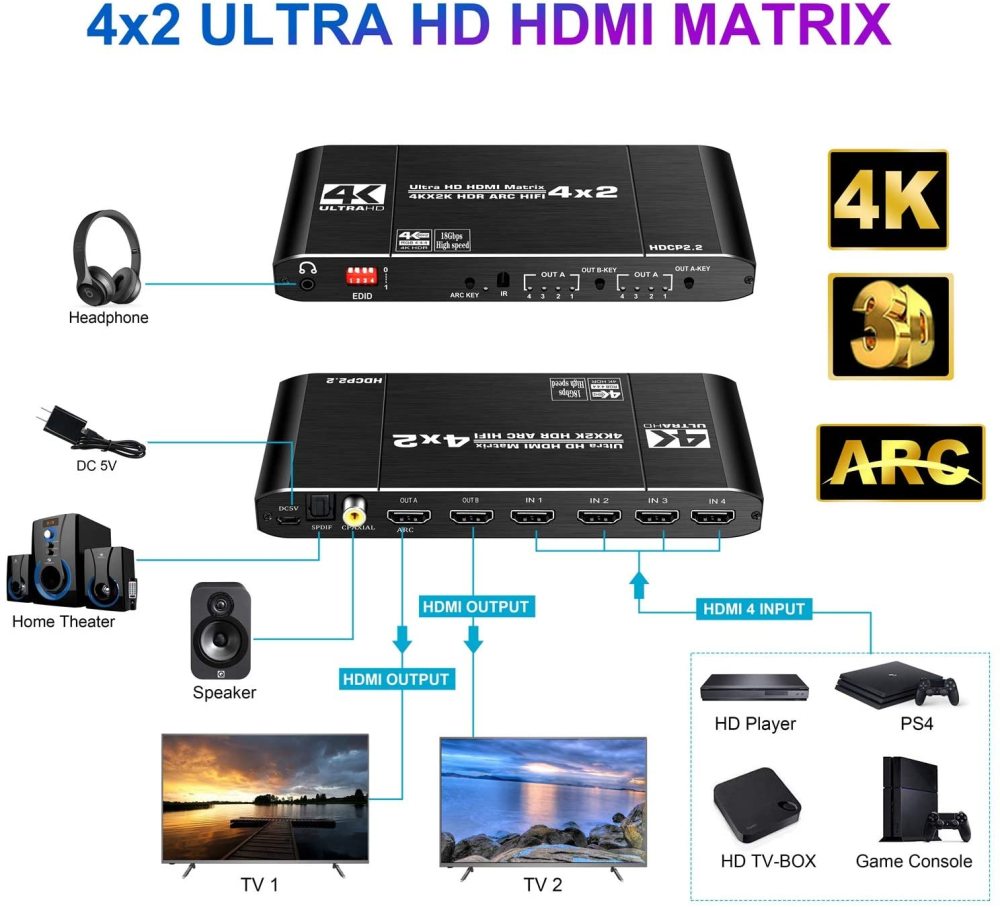

*Support four HDMI input to be switched or split to two HDMI output
-Input Ports : 4 × HDMI (Female type)
-Output Ports : 2 × HDMI (Female type) + 1*SPDIF + 1*COAX + 1*3.5mm stereo audio
*Support HDMI 2.0b, HDCP2.2, ARC, HDR
*Support 3D video format
*HDMI Resolution: 4KX2K@60Hz/3D/1080P@60Hz/1080i/720p/576p/576i/480p/480i(highest resolution up to 4096*2160/60Hz) ;
*Support 18G data rate and TMDS clock up to 320Mhz
*Support video format : 8/10/12 bit deep color
*Support audio format DTS-HD/Dolby-trueHD//DTS/Dolby-AC3/DSD
*Support 3.5mm stereo audio output and optical output
*Support 5.1 audio channel
*Support 5V-12V wide voltage input
* With EDID management, make it compatible with most display devices.

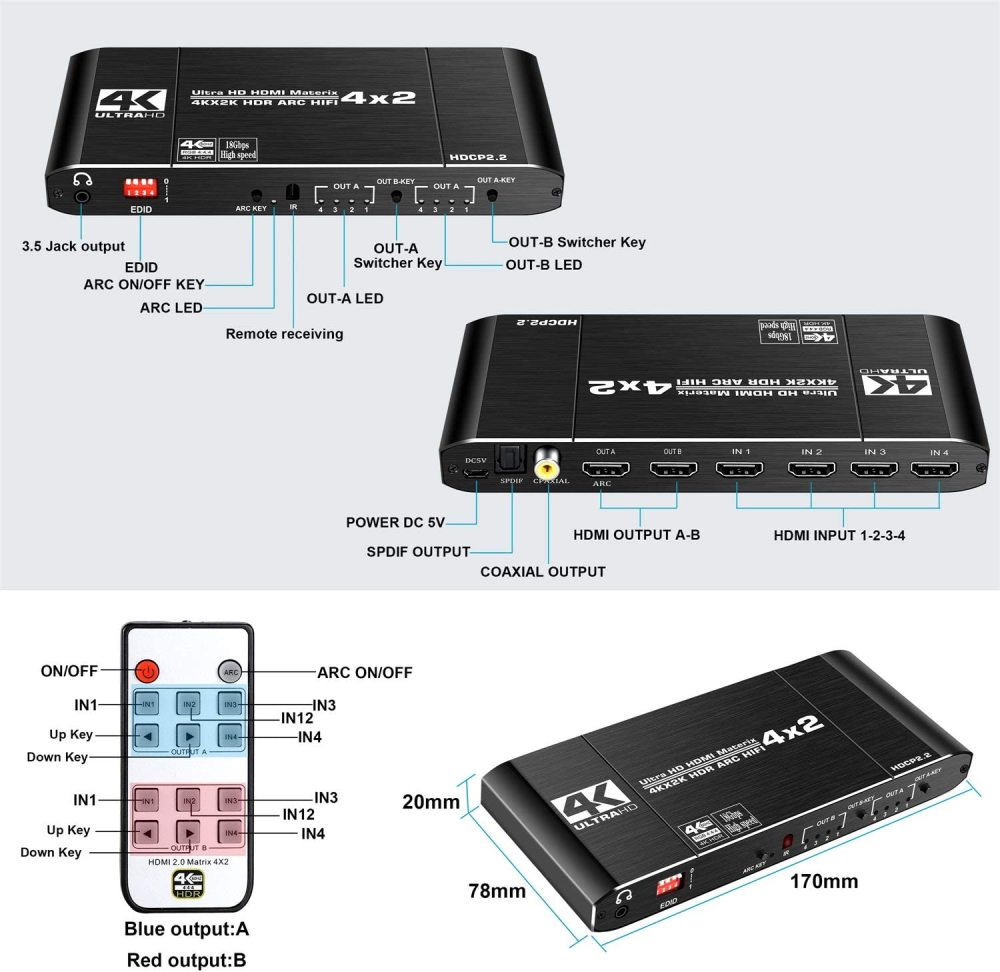

Instruction of Buttons&LED:
*LED: In1-In 4 LED indicator is the corresponding input sources for OUT 1 or OUT 2
*Buttons:Key 1 or Key 2 is used to switch the corresponding input source for OUT 1 or OUT 2
*Note: Press Key 1 or Key 2 for around 5 seconds,it can switch audio channel between 5.1 and 2.1.
