Frequency Band:
EU Version
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
Working in all off EU ,Asia ,Africa,Oceania
Description:

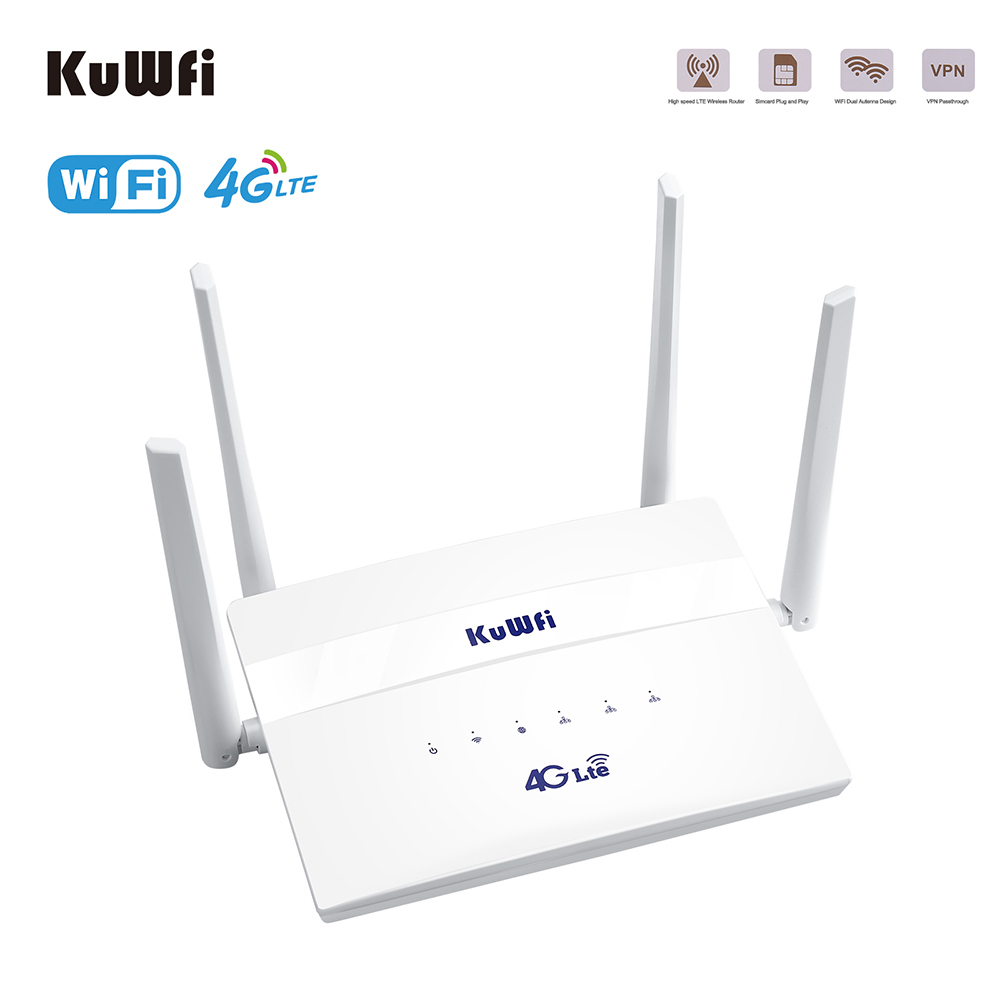

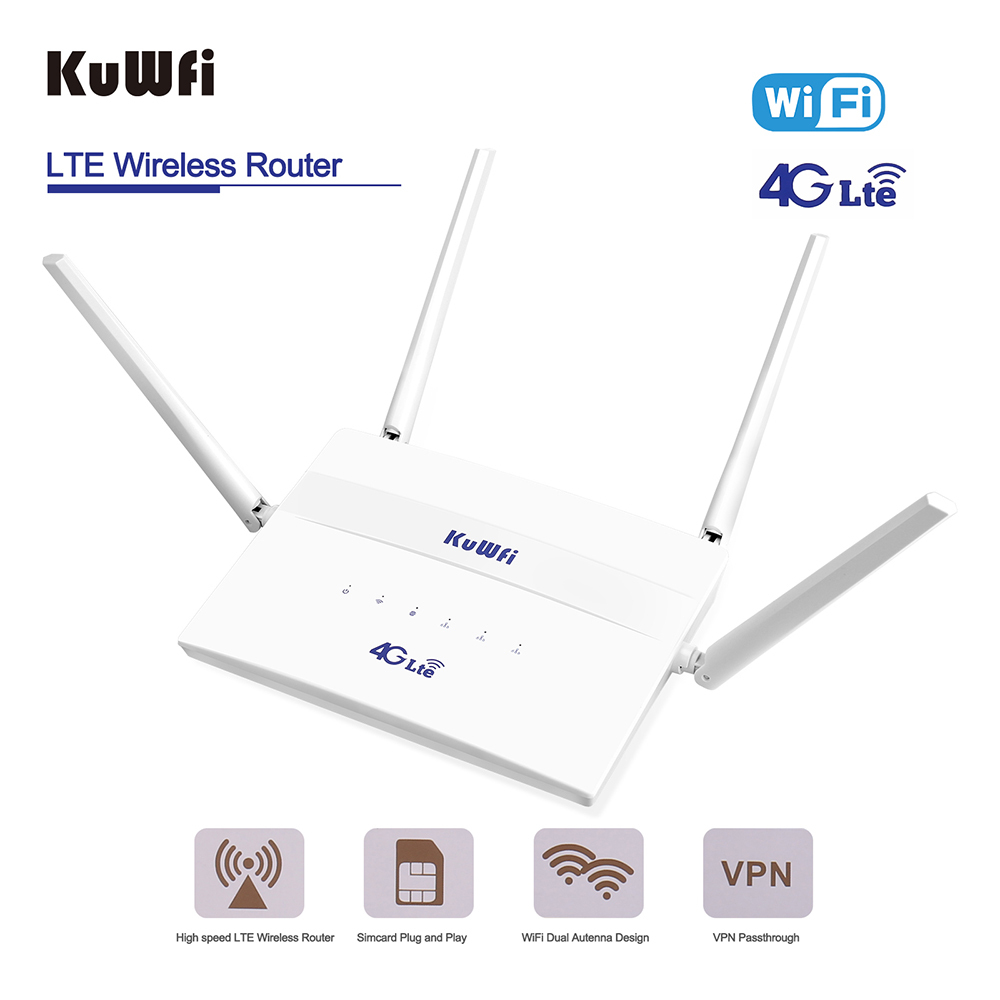

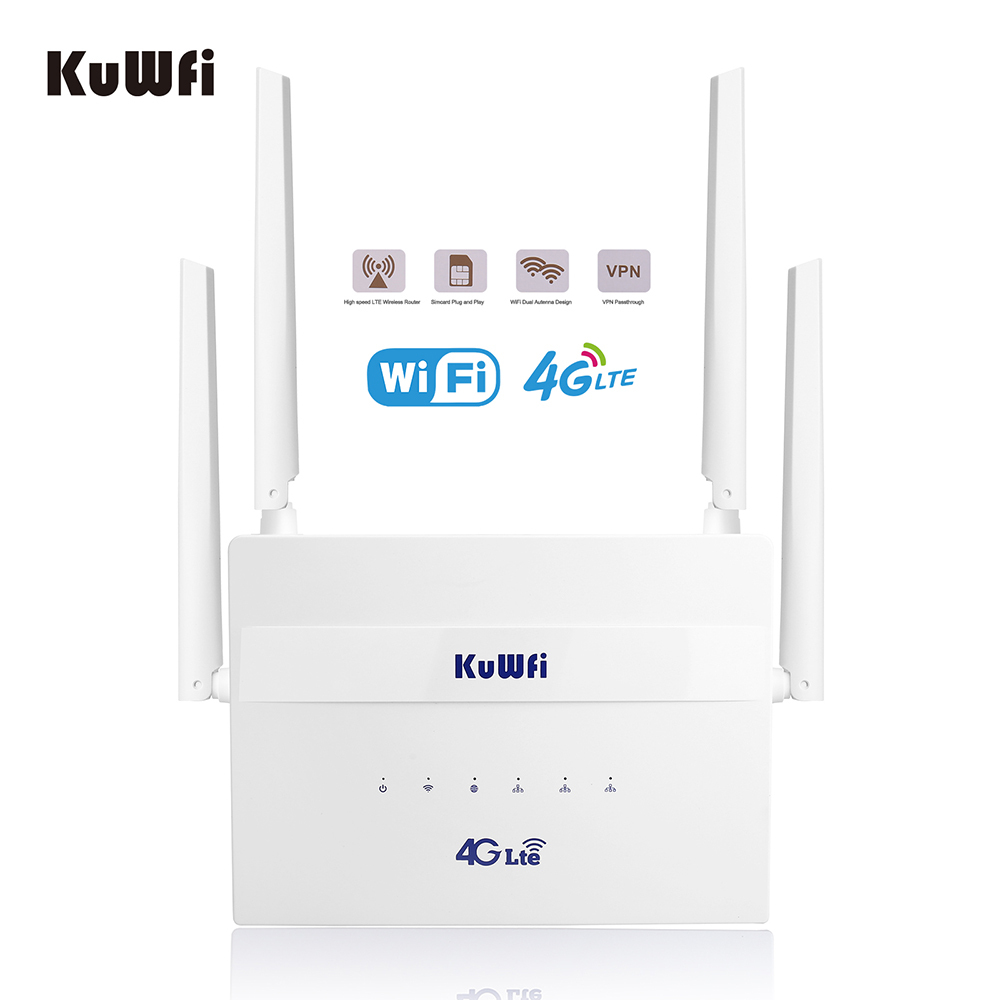

1.4G LTE Router with powerful signal with WAN/LAN port and with SIM card slot , plug 4g sim card ,you will enjoy the WiFi with your friends and family.

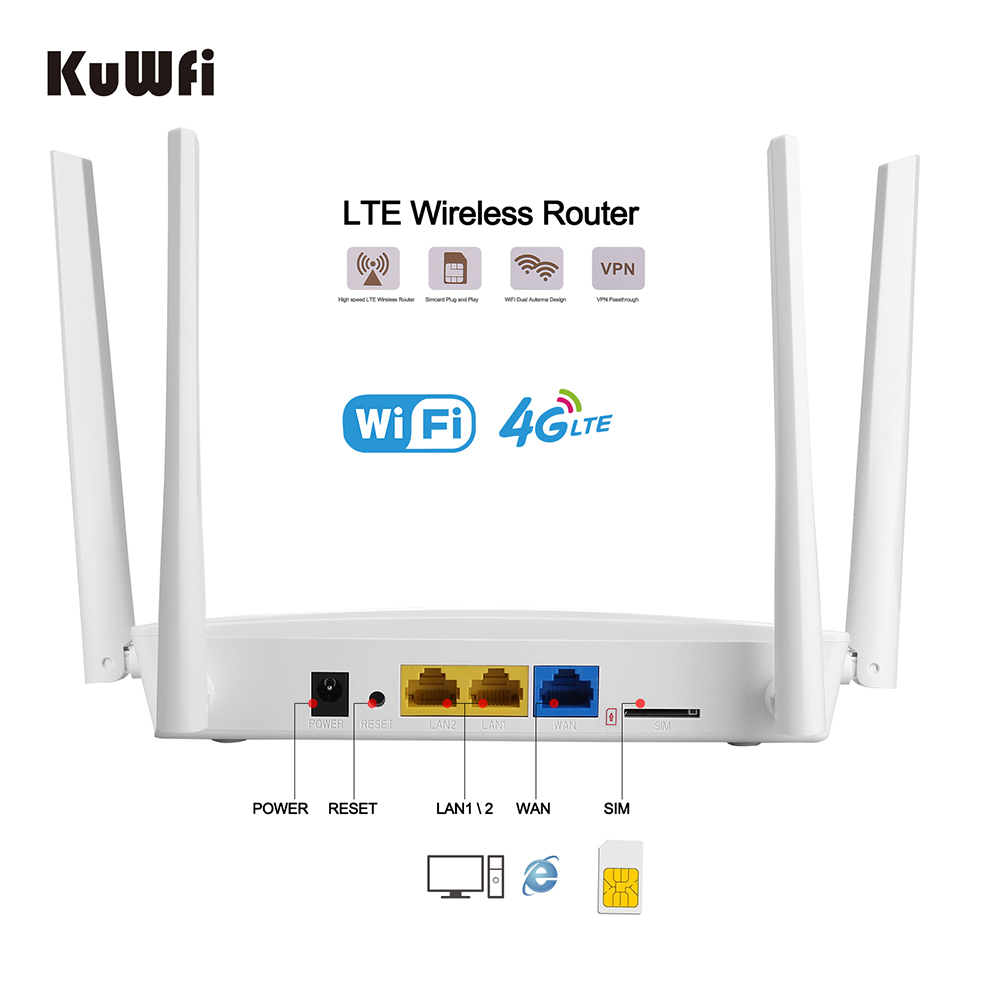

2.4G outer equipped with 2 LAN interface，when the 4G router transmits the WiFi ,you can connect to other devices by lan cable .simultaneously.
3.Support 4G Cat4 150Mbps ，4*2dBi external antennas ,offer high Speed and more stable wifi ,DL/UL 150/50 Mbps
4.it is Easy to connect and easy to carry in hand Sharing customer to 32 WiFi users,
5.supports 2.4GHz WiFi, WiFi speed up to 300Mbps, effectively reduces the same frequency interference, improves the wireless transmission range, eliminates dead zones
6.Working Mode
【4G wireless mode】
Choose 3G/4G Wireless modem mode as default, pulg in to standard SIM Card, KuWFi CPE will identify 3G/4G automatically.for some SIM Card should be update APN.
【4G To LAN】4G To LAN
After Insert 3G/4G SIM card to the Router , Connect PC with router by lan cable ,your pc will have internet
【Repeater Mode】
Extended wireless coverage,WiFi repeater equipped with 4 high gain external antenna, which improve the reach of your existing Wi-Fi coverage, extend wireless signal to about 3-10 meters!
【Wired Mode】
Standard wireless modem mode:Static online mode/Dynamic Internet access/PPPoE online modem
Detail:
Chipset :Qualcomm 9531
ROM+RAM64Mb+1Gb
Transmission Range :3-15M
Working Temp : -20~+55C ,for storage: -40℃ ~70℃ for working
Power Supply :12V 1A DC Supply
Size:117*115*20mm
LAN:RJ45*2
Package Included:
1*4G WIFI Router
1*12V DC Power Adapter
1*English Manual
1*RJ45 LAN Cable
