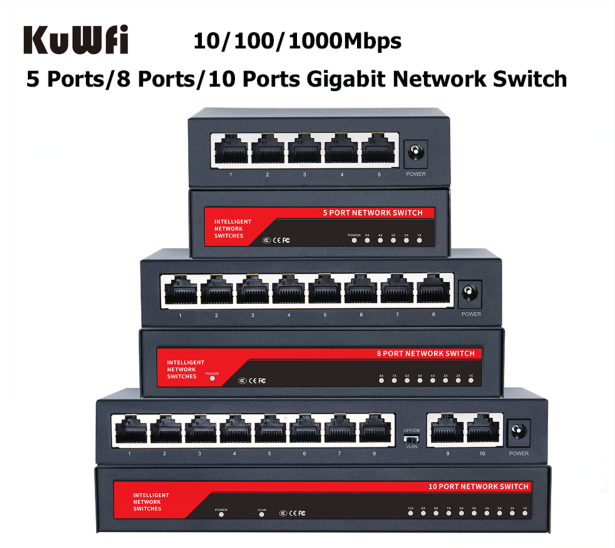

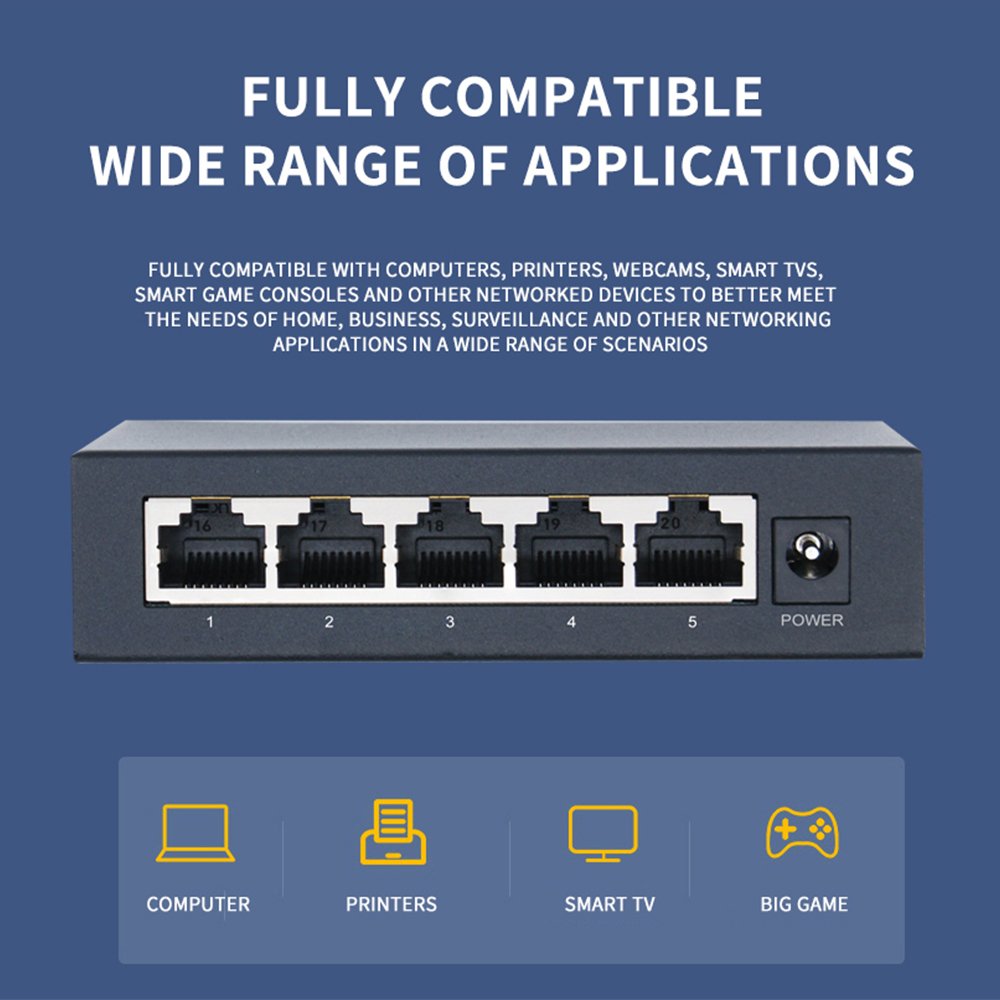

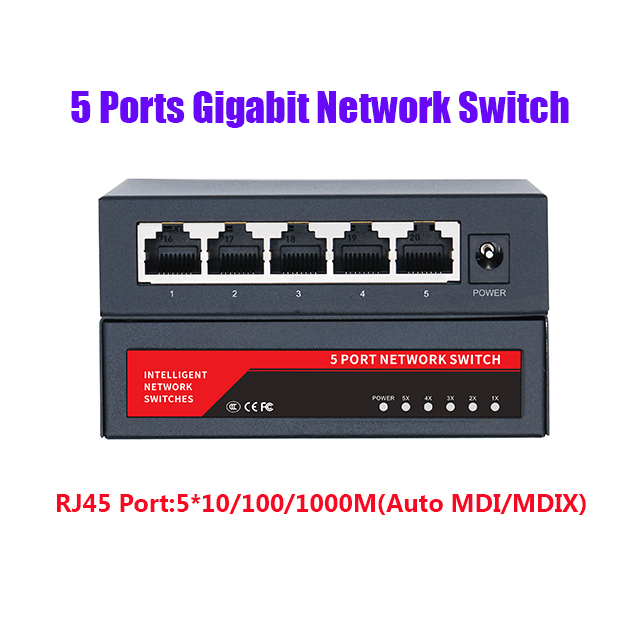

5 gigabit network switch ports
RJ45 port: 5*10/100/1000m (automatic mdi/mdix)
Ac on: 100v-240v 50hzdc out: 5v 1a (external power adapter)
Bandwidth: 10g full duplex
Data pin: 12 36 45 78
Distance: 100 Meters
Mac address: 2k
Agreement: iee802.3u, iee 802.3x

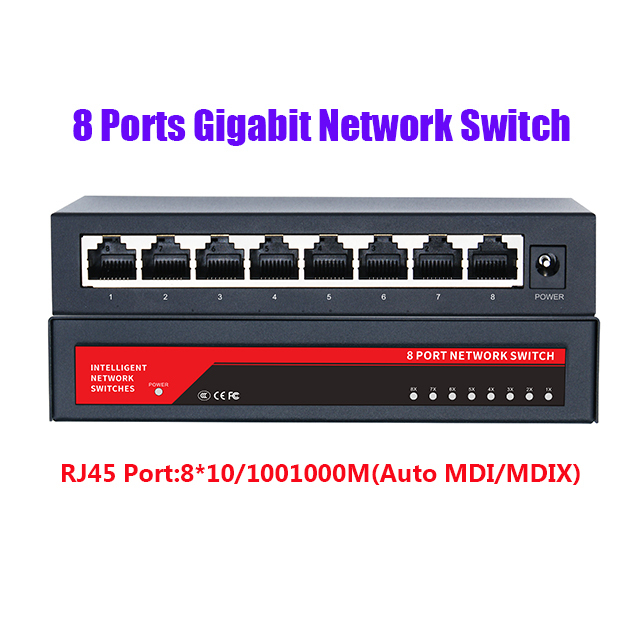

8 gigabit network switch ports
RJ45 port: 8*10/1001000m (automatic mdi/mdix)
Ac on: 100v-240v 50hzdc out: 5v 1a (external power adapter)
Bandwidth: 16g full duplex
Data pin: 12 36 45 78
Distance: 100 Meters
Mac address: 2k
Agreement: iee802.3u, iee 802.3x

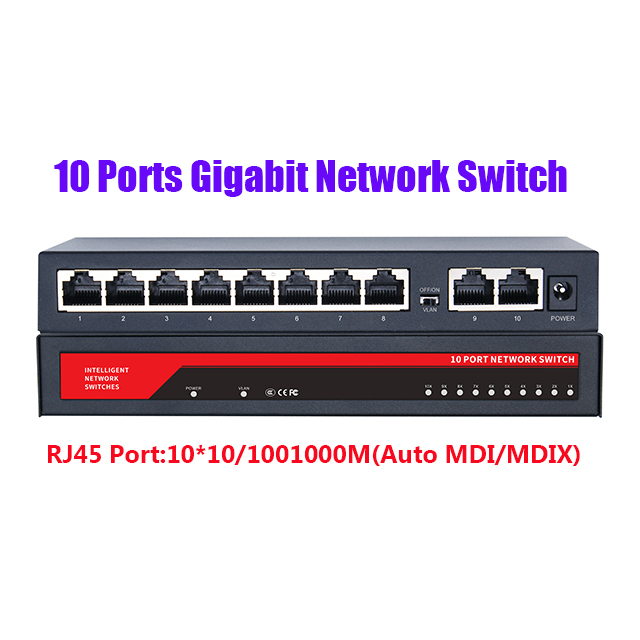

10 gigabit network switch ports
RJ45 port: 10*10/1001000m (automatic mdi/mdix)
Ac on: 100v-240v 50hzdc out: 5v 1a (external power adapter)
Bandwidth: 20g full duplex
Data pin: 12 36 45 78
Distance: 100 Meters
Mac address: 2k
Agreement: iee802.3u, iee 802.3x
FAQ:
Q1: After the computer is directly connected to the router, the internet can be accessed normally, but the computer cannot access the internet when it is connected to the router through the network switch?
A1: After connecting to the network switch, the computer cannot access the internet. Reasons for this may include: unstable physical connection, improper computer settings, etc. follow the steps below to delete:
1) Replace the network cable between the computer and the switch to ensure that the corresponding indicator light of the switch is on and the local connection is stable. Verification method: connect two computers to the switch and configure them on the same network segment. If they can ping each other, the connection between the computers and the switch is stable.
2) set the computer's local connection to get ip automatically (as long as the front-end router allows the dhcp server), right click the local connection properties, select internet protocol (tcp/ip) and click the button properties.
3) check "obtain an ip address automatically", then ok.
4) when the computer get the ip normally, it can browse the internet normally.
5) If you still can't access the internet after getting it normally, check your front router's relevant settings to see if your computer is blocked from accessing the internet.
6) If the IP address cannot be obtained normally, replace the network cable between the switch and the router.
