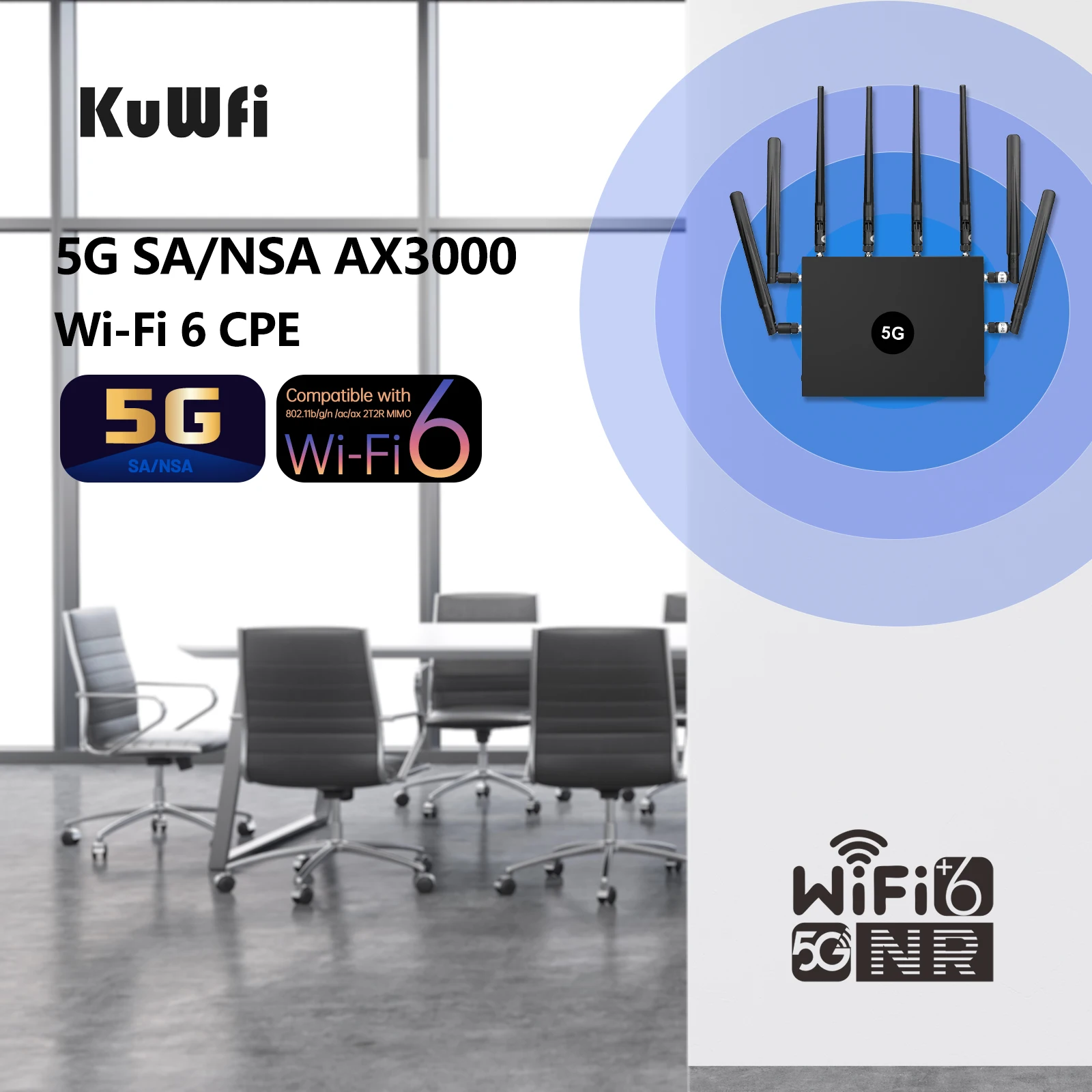

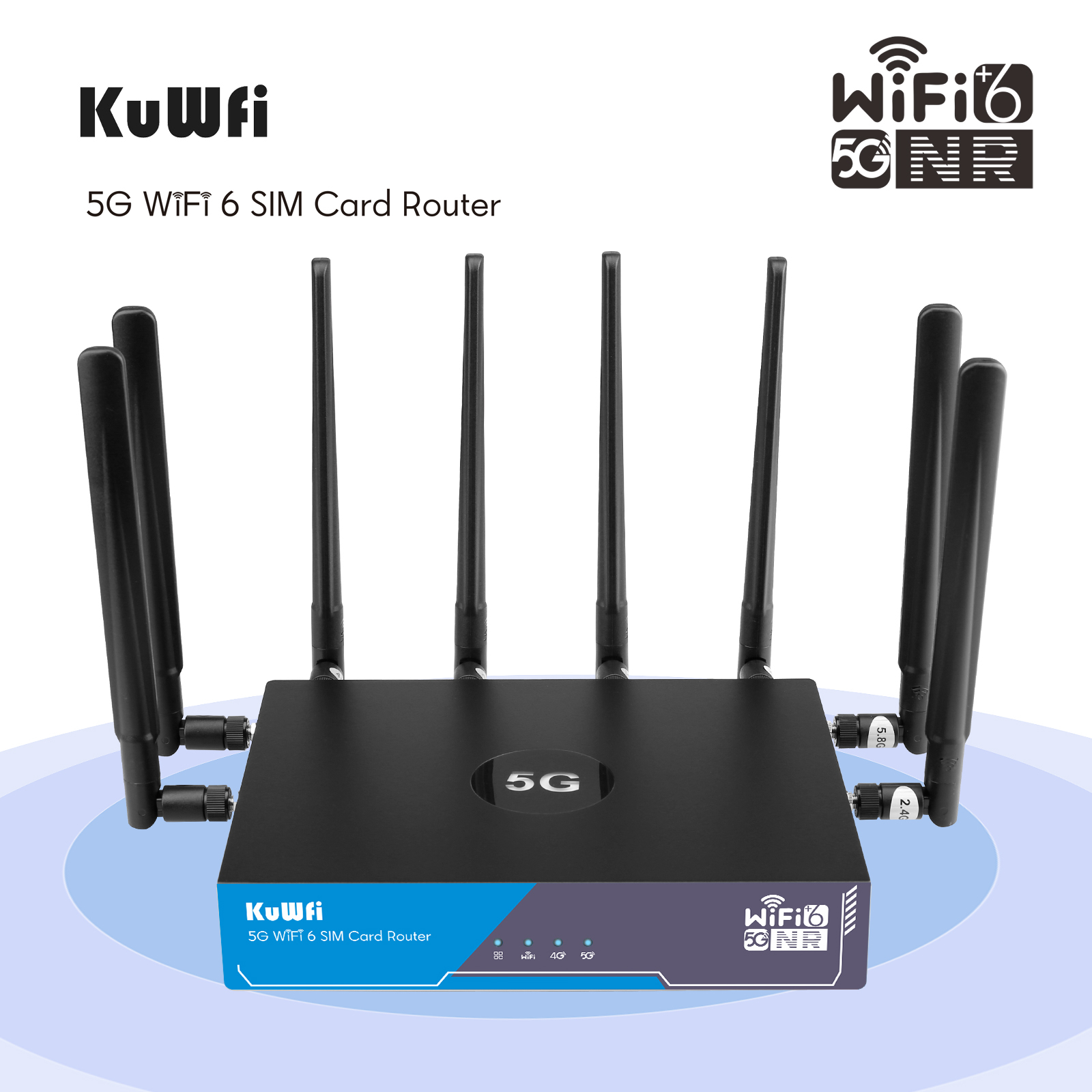

5G CPE Router
The router uses a 5G chip, which allows you to enjoy the extreme speed experience brought by 5G network. The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world.

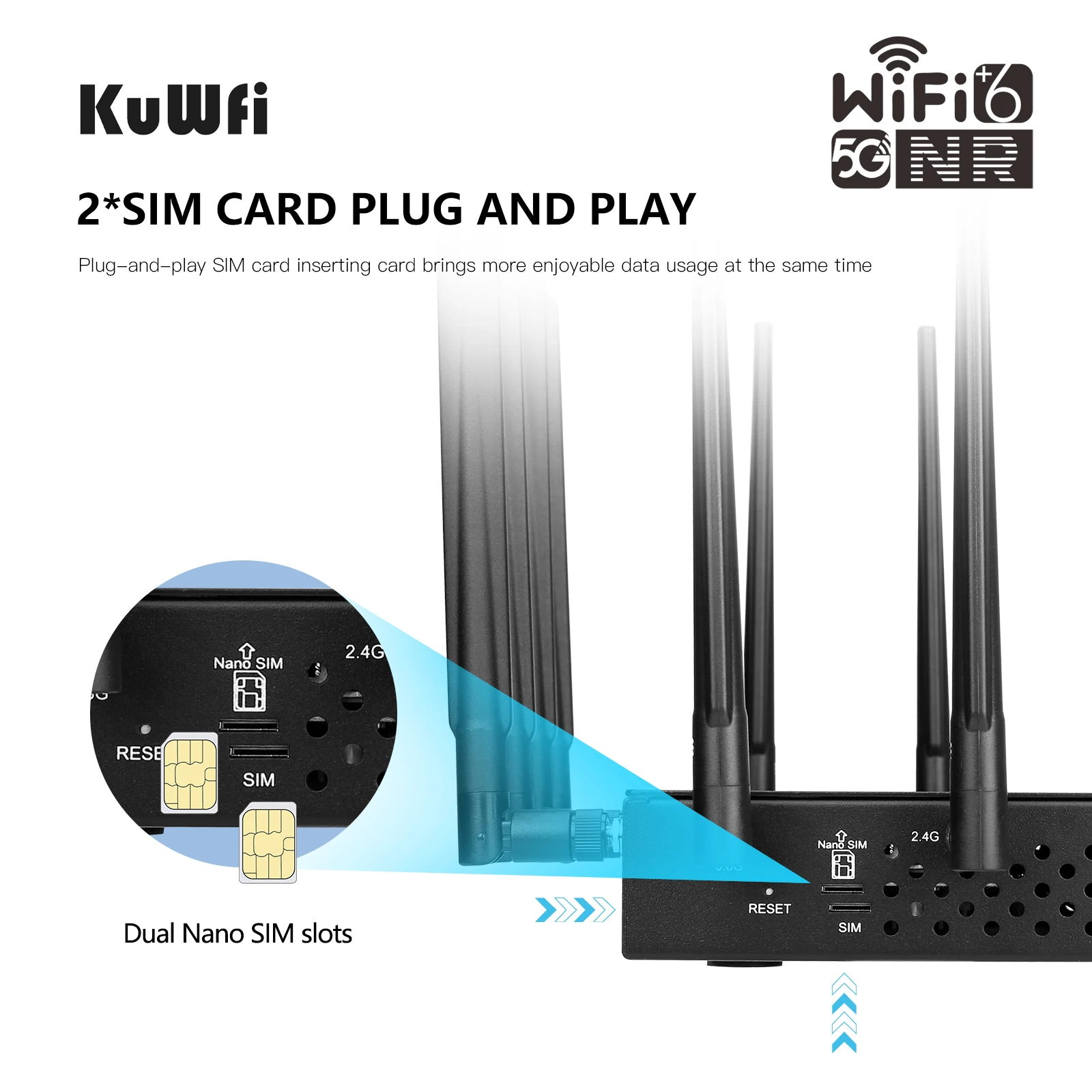

Support Dual Nano Sim Card Slot
This is the first 5G router in our store that supports dual Nano sim card slots.Meet the needs of different users to achieve more possibilities.

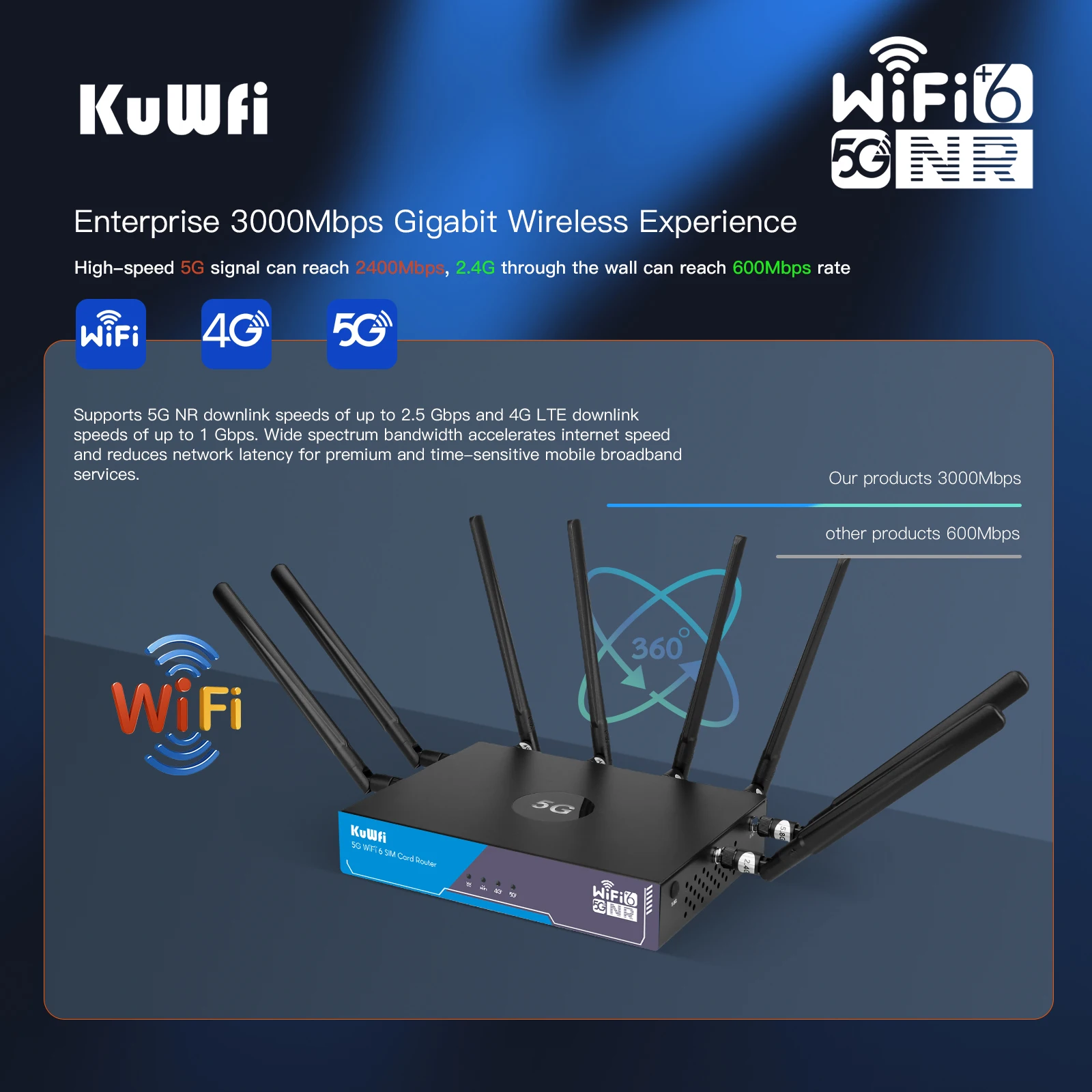

2.4GHz & 5.8Ghz Wi-Fi 6 Standard
With 802.11ax (Wi-Fi 6)technology built-in,the 5G CPE Router has wider wireless coverage and more bandwidth. 2.4Ghz Wi-Fi up to 600Mbps, 5.8Ghz Wi-Fi up to 2400Mbps.

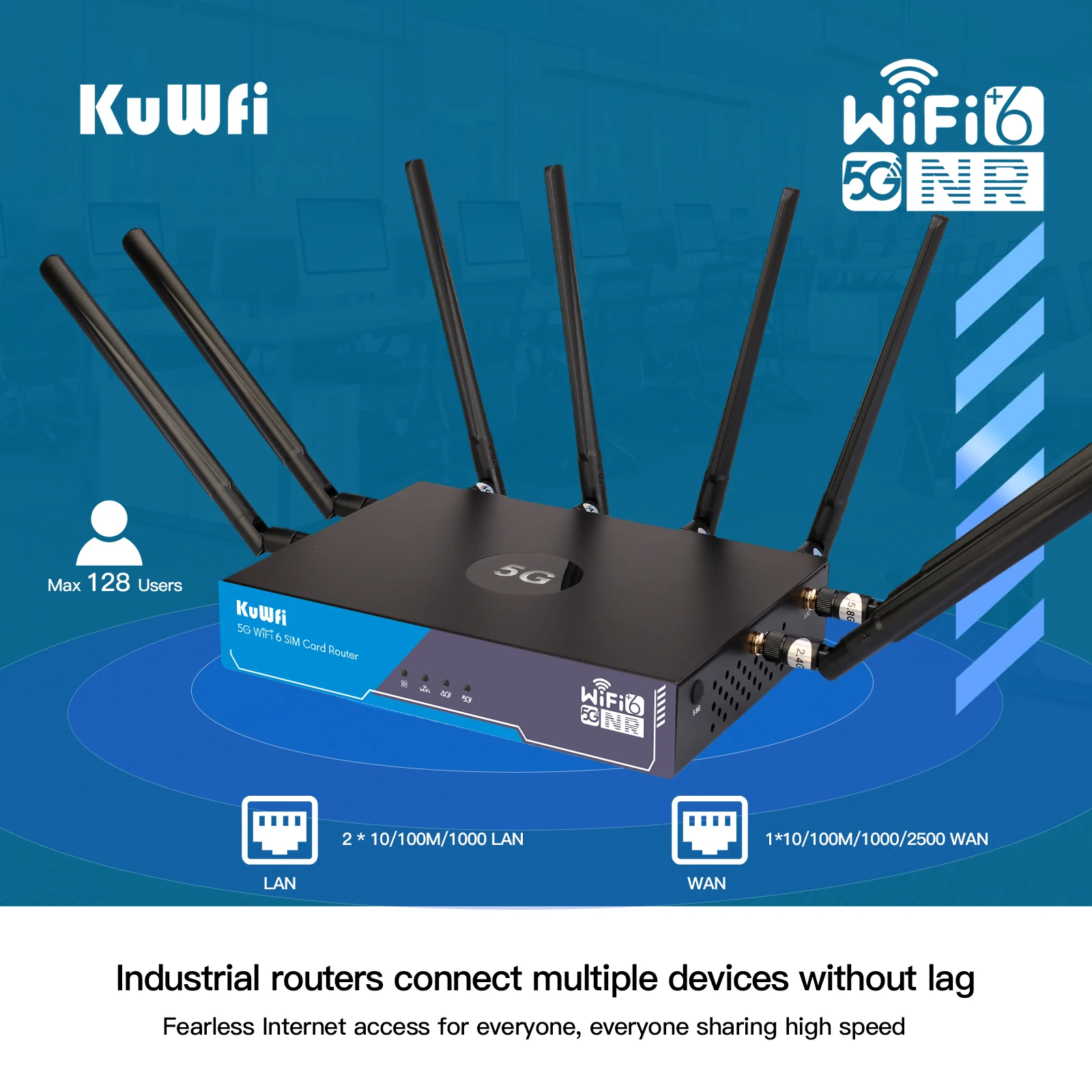

With Gigabit Ethernet Port
The 5G CPE Router with two 1000Mbps LAN ports and one 2500Mbps WAN port. It allows users to convert to a wired network through 5G networks, providing a more stable network for other network devices.

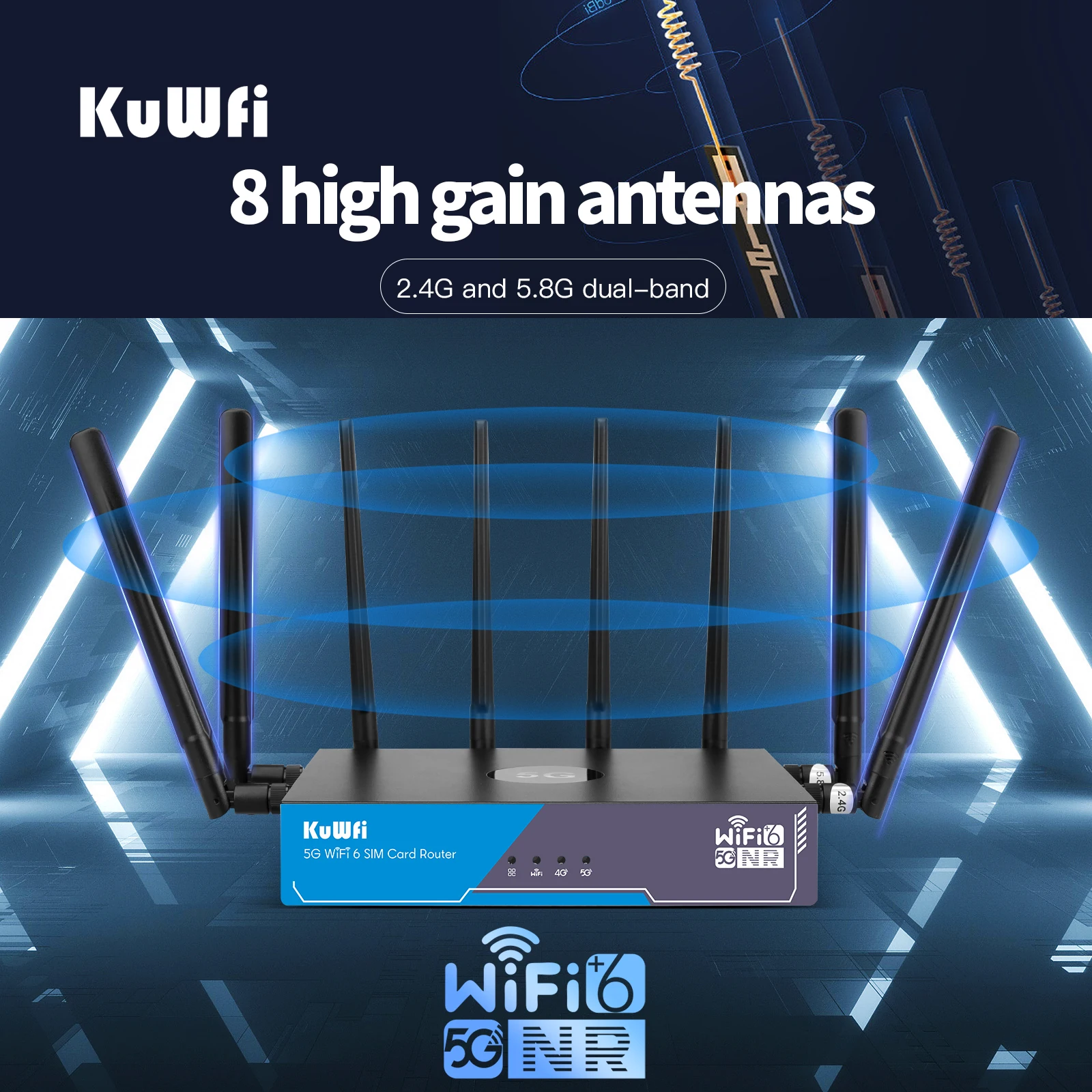

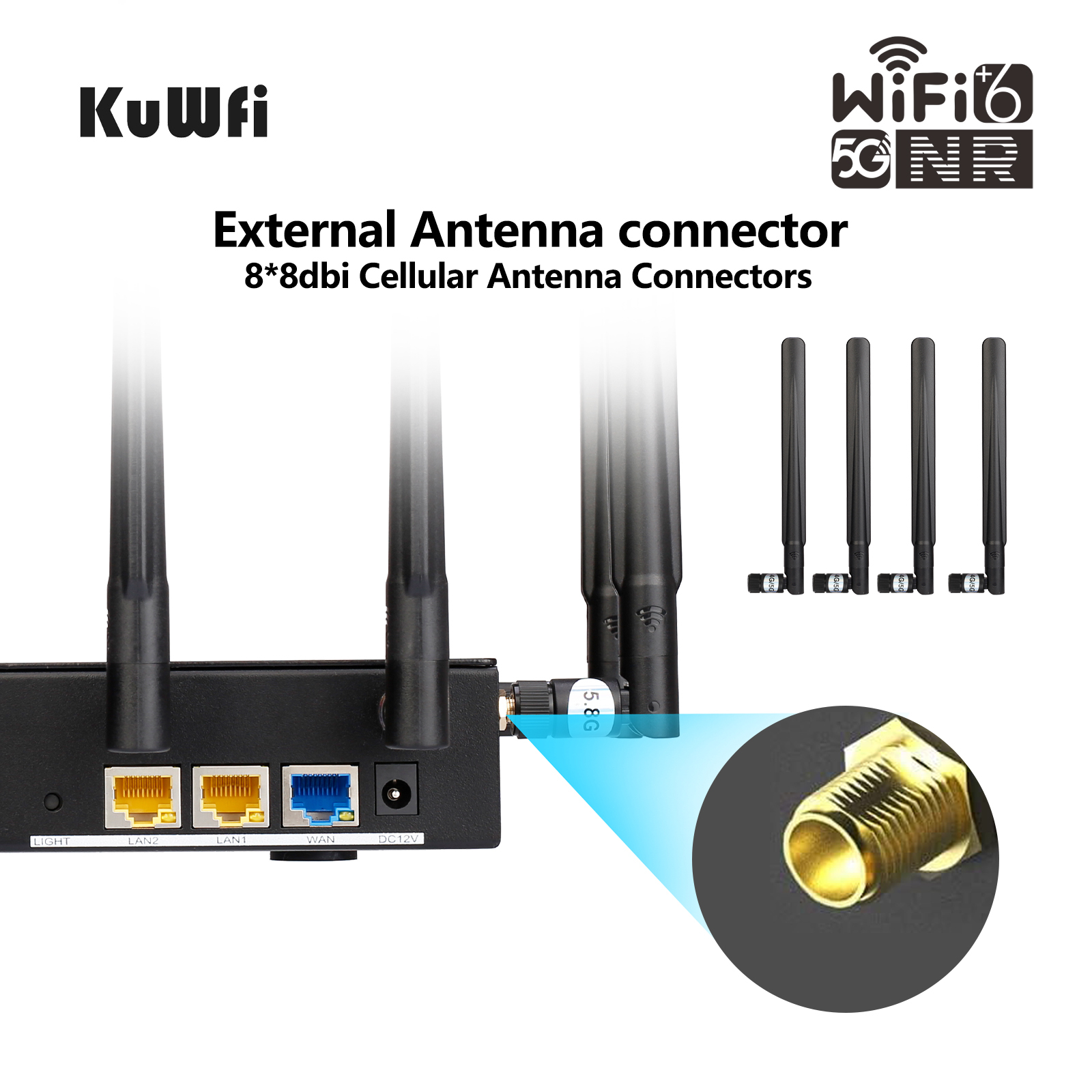

With 8pcs External Antennas
The 5G router uses a scheme of eight external antennas to allow the signal to cover a larger range more stably.

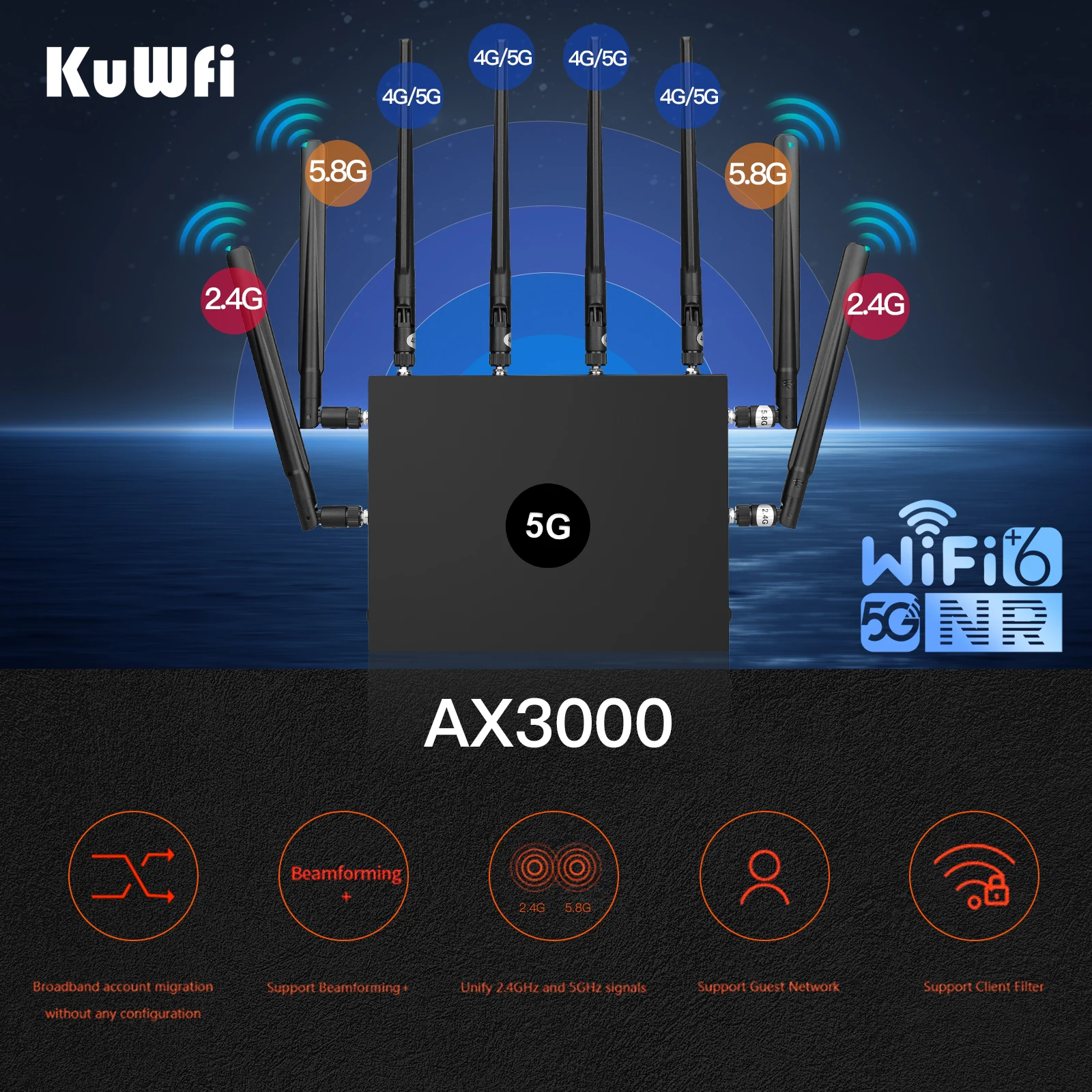

8pcs Antennas: 4pcs 4G/5G Antennas, 2pcs 2.4Ghz Wi-fi Anternnas and 2pcs 5.8Ghz Wi-Fi Antennas.
Support MESH Networking
The 5G CPE Router inherits the mesh technology.It helps users manage the network more conveniently.
Support 128 Users/Devies Connect
The router supports up to 128 simultaneous users/devices, allowing your friends or family to connect to your router.
Plug and Play

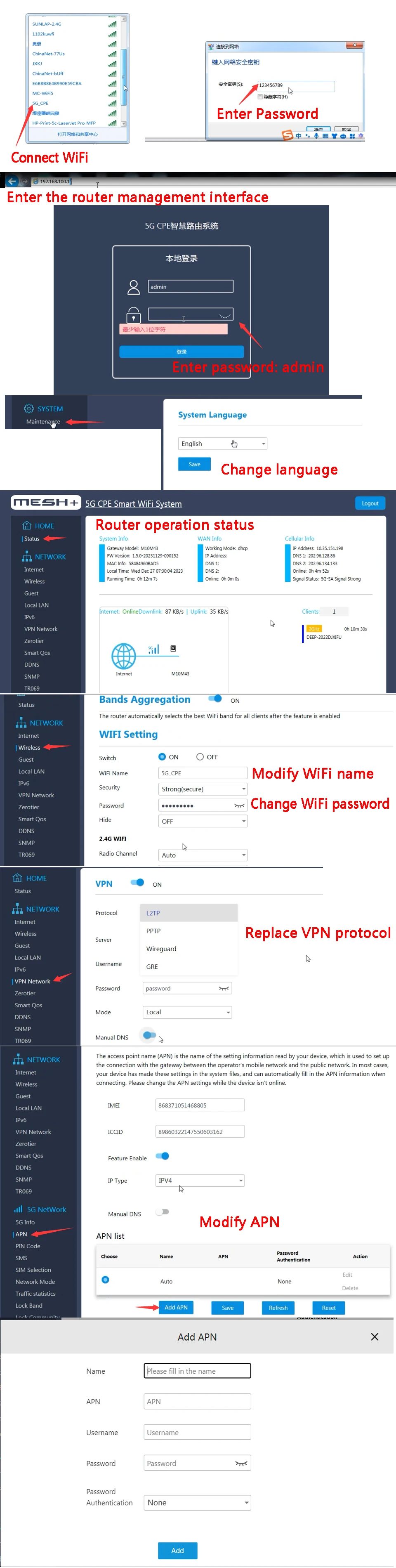

When you insert the SIM card, you can instantly access the Internet.It means you just plug and play it and enjoy the ultra-fast broadband connection at any places. (Some SIM cards need to log in to the Web UI of the router and configure the APN information before they can access the Internet.)
Product Specification:
Model: RM503Q
CPU: MT7981+SDX62
Network Extension: MESH
5G NR: 3GPP Release 16 NSA/SA operation
Wi-Fi Frequency: 2.4Ghz & 5.8Ghz
2.4Ghz Wi-Fi: 600Mbps
5.8Ghz Wi-Fi: 2400Mbps
2.4Ghz Wi-Fi Standard: 802.11b/g/n /ax 2T2R MIMO
5.8Ghz Wi-Fi Standard: 802.11a/n/ac/ax 2T2R MIMO

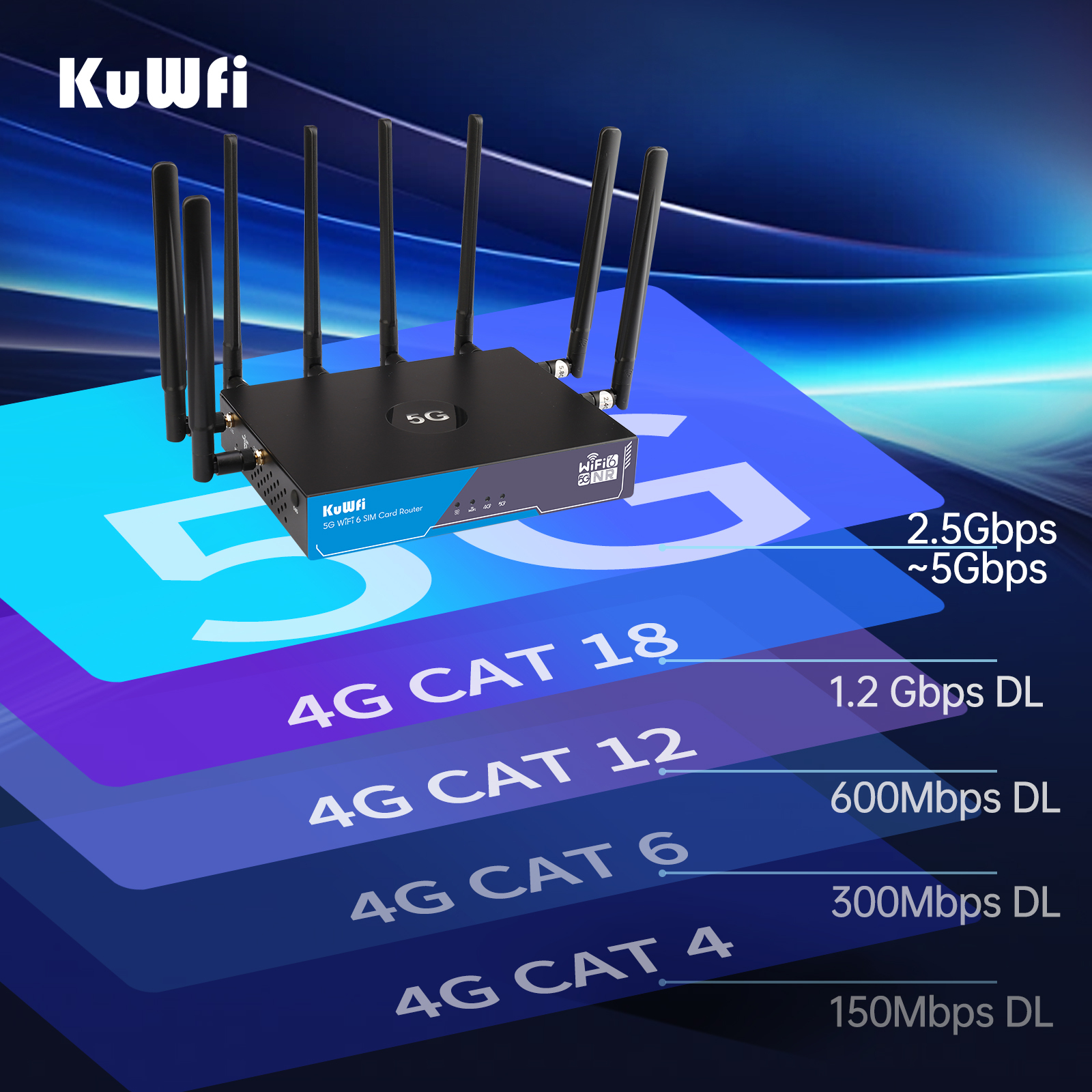

5G SA Transmission Speed:Down 2.1Gbps ; UP 900Mbps (up to ISPs)
5G NSA Transmission Speed:Down 2.5Gbps ; UP 650Mbps (up to ISPs)
4G LTE : Down 1.0 Gbps;UP 200Mbps
Operating Temperature: -20℃ to +50℃
Storage Temperature: -40℃ to +70℃
Humidity: 5% to 95% (Non condensation)
Size: 210 x 160 x 41 mm

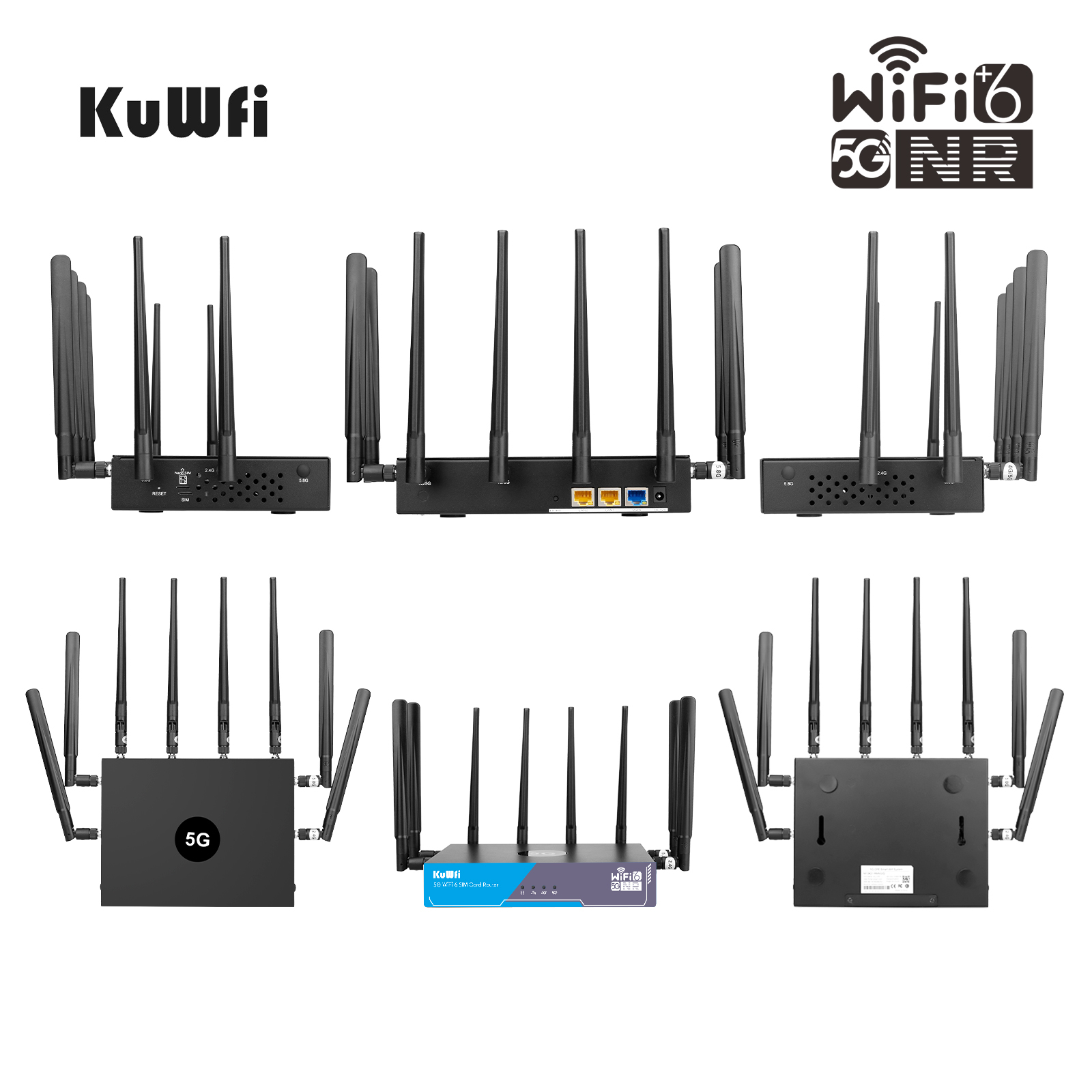

Interface:
2*10/100/1000Mbps LAN Port
1*10/100/1000/2500Mbps WAN Port
1*12V 2A DC Power Input
1*Reset Button
1*Breathing Light Button
2* Nano SIM Card slot(4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card interface,
support 3V SIM card and 1.8V SIM card: internal)
Package List:
1x 5G CPE Router
1x Ethernet Cable
1x Power Adapter
1x Quick Start Guide
FAQs:
1.Which card does the 5G Router read preferentially?
The 5G router first reads the SIM card in slot 1, and automatically switches to the SIM card in slot 2 when the Internet access traffic of the SIM card in slot 1 is used up.
2.When the SIM card in slot 1 has a bad signal, will the router automatically switch to the SIM card in slot 2 with a better signal?
The router cannot switch SIM cards intelligently, but users can log in to the WEB interface to manually switch.
If you encounter other problems, please leave a message to our store customer service.
