五点：
- PS-1006B PoE 交换机通过一根 Cat-5 电缆使用以太网供电 (PoE) 从单点提供电源和数据
- KuWFi PoE Injector，带4*10/100mbps POE端口，2*10/100mbps UP-Link端口；每个端口最大 电源达到30W。低热量设计，安全可靠，稳定性高
- It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm givespower to 802.3af end devices,In addition,the PoE switch automaticallydetermines PoE requirements, speed, duplex, and cable type usingAutoUplink. Easy to operate and reliable
- The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments
- KuWFi Power Over Ethernet Injector. Quality is guaranteed. Lifelong technical support. If you have any questions, please feel free to contact us by email
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product description
Color:
6-Port-100M

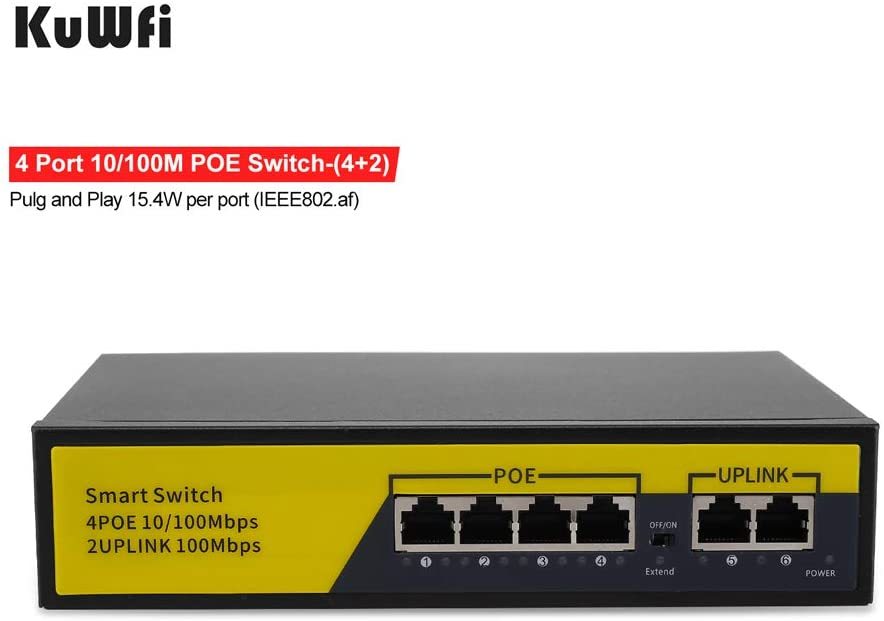

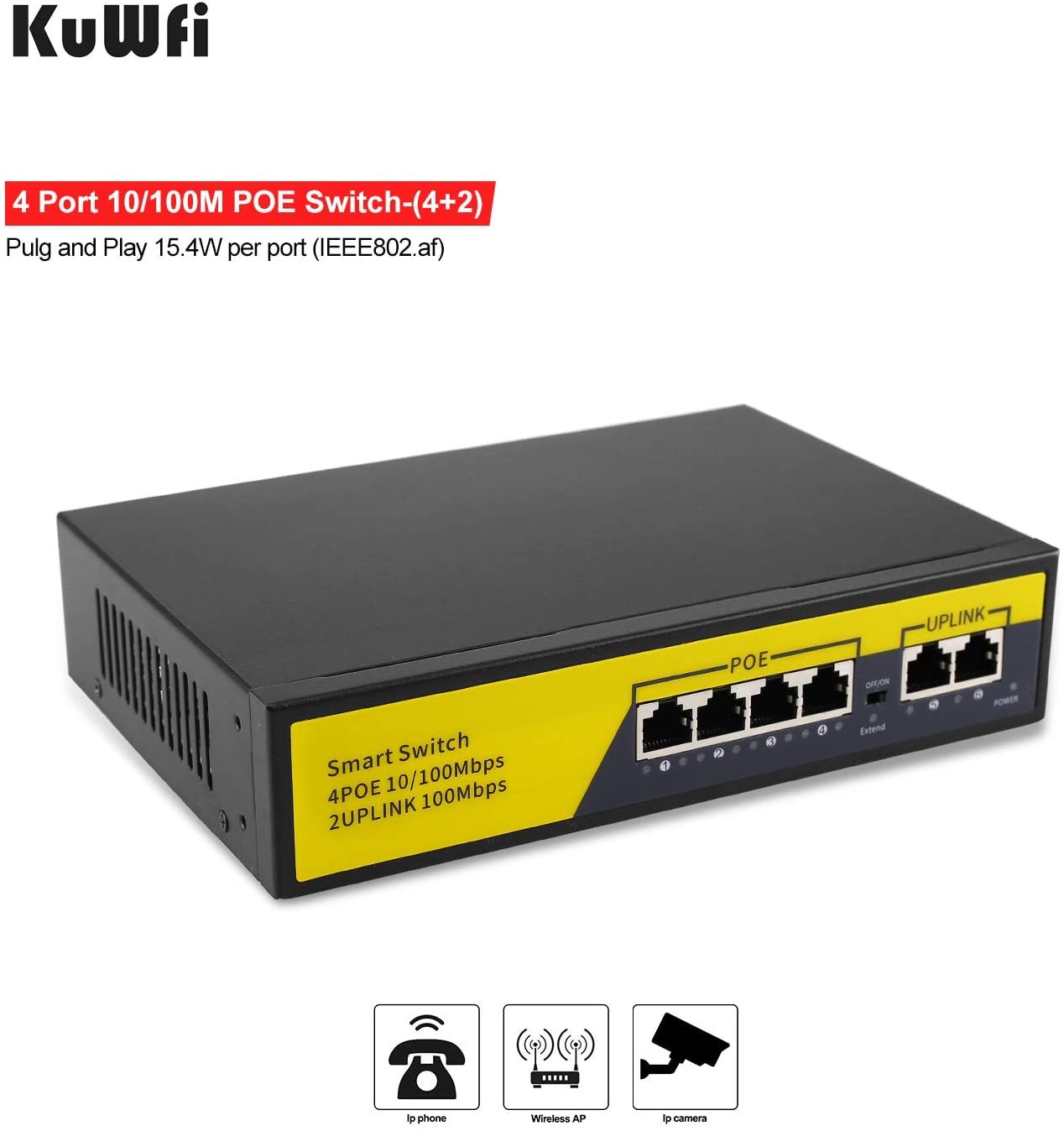

KuWFi 6-Port PoE Switch 72W
◆4*10/100mbps POE port,2*10/100/100mbps UP-Link port
◆100m Transmission Distance,250m after use extend function
◆Compatible with IEEE802.3AF/AT
◆Whole Power:72W(52V 1.3A)
◆All port supported by MDI/MDIX auto flip and self negotiation
◆Supply 4pcs 10/100Mpbs adaptive high speed forwarding data packetnon-lost port
◆Each port max. power supply reached 30W
◆Low heat design, safe and reliable, high stability

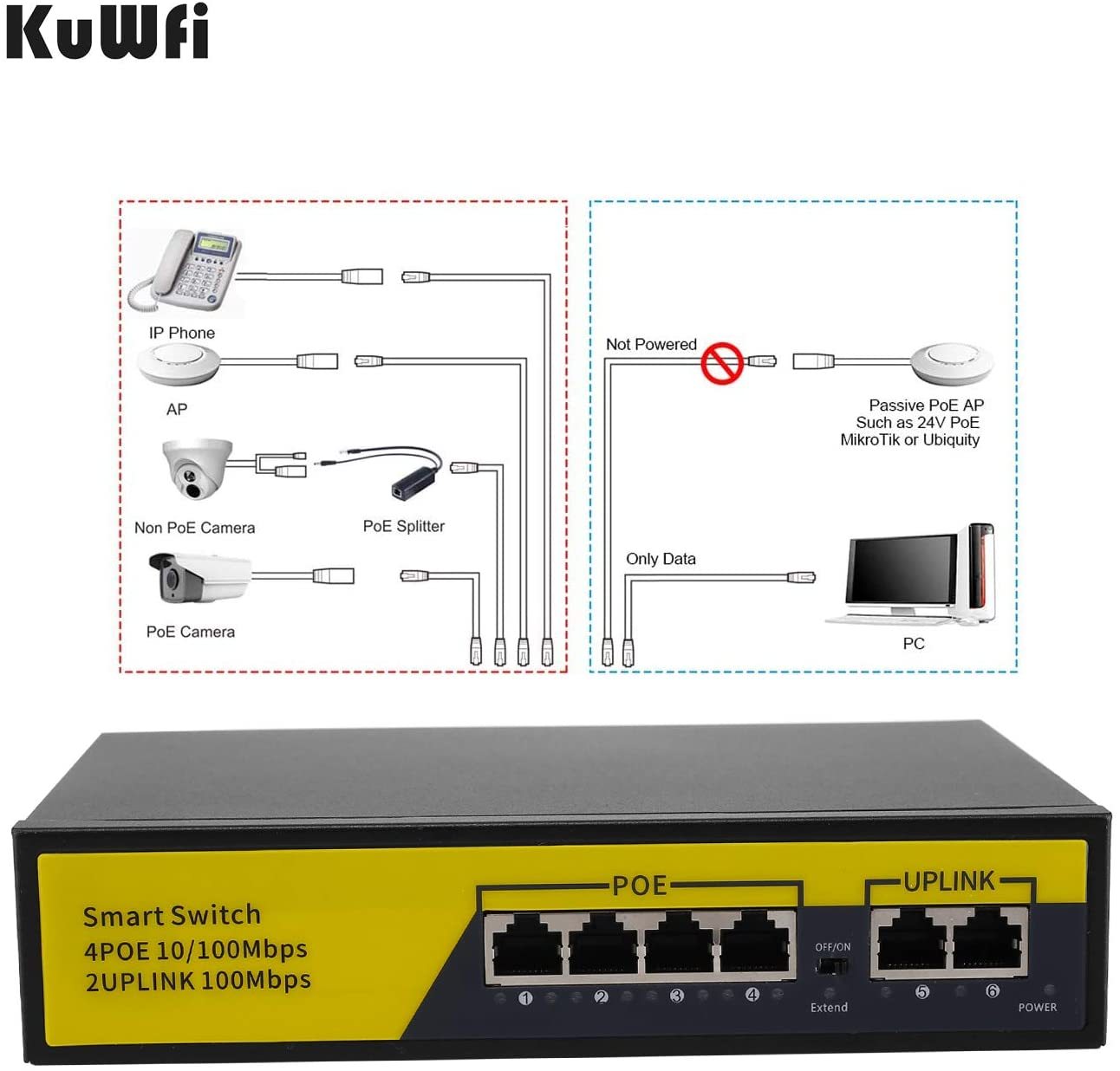

◆Application: Wireless Access Point + IP Camera + IP Phone + Computer Networks
POE RJ45 Port:4*10/100Mbps
Uplink Port:2*10/100Mbps
DC:52V/1.8A
Bandwidth:1.2G Power:Per≤30W &Whole≤72W
Data signal port:1236
电源端口：1236(+12 -36)
距离：250M
扩展：是
协议：IEEE802.3AT/AF
网络介质：Cat5 (UTP) 或更高
网络标准：
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3 x Flow Control IEEE 802.3af 以太网供电
环境规范
工作温度：-10-55℃(32-104℉)
存储温度：-40-70℃(14-158℉)
工作湿度：90% 最大相对湿度，非-冷凝
存储湿度：95% 最大相对湿度，无冷凝
包装清单
6 端口 10/100M POE 交换机*1
用户指南*1
保修卡*1

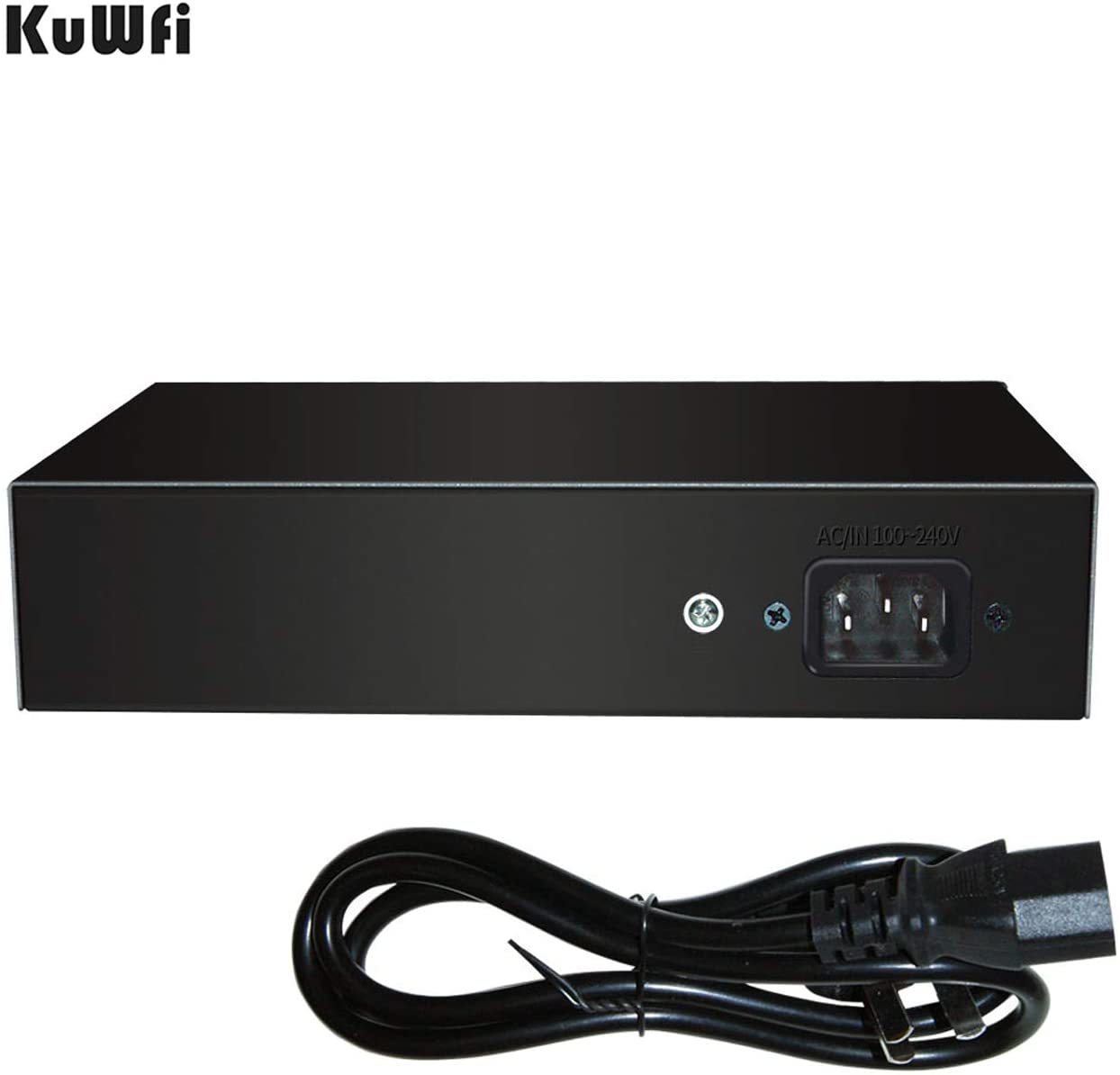

电源线*1
