WB-5G03 is a hot sell 900Mbps outdoor CPE with one key PTP/PTMP connection. It complies with IEEE 802.11a/n/ac standard, with 12dBi dual polarized high gain antenna, the PTP/PTMP distance Up to 3-5KM.with 1000Mbps Lan
The CPE Bridge with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it supports 48V active PoE and 4KV lightning protection, ideal for outdoor use.
1.High-speed network transmission
This CPE bridge has two RJ45 gigabit network ports, providing a faster and more stable network. In addition, the 5.8GHz Wifi network maximum rate of 900Mbps.Supports intelligent channel analysis and automatic optimal channel selection.

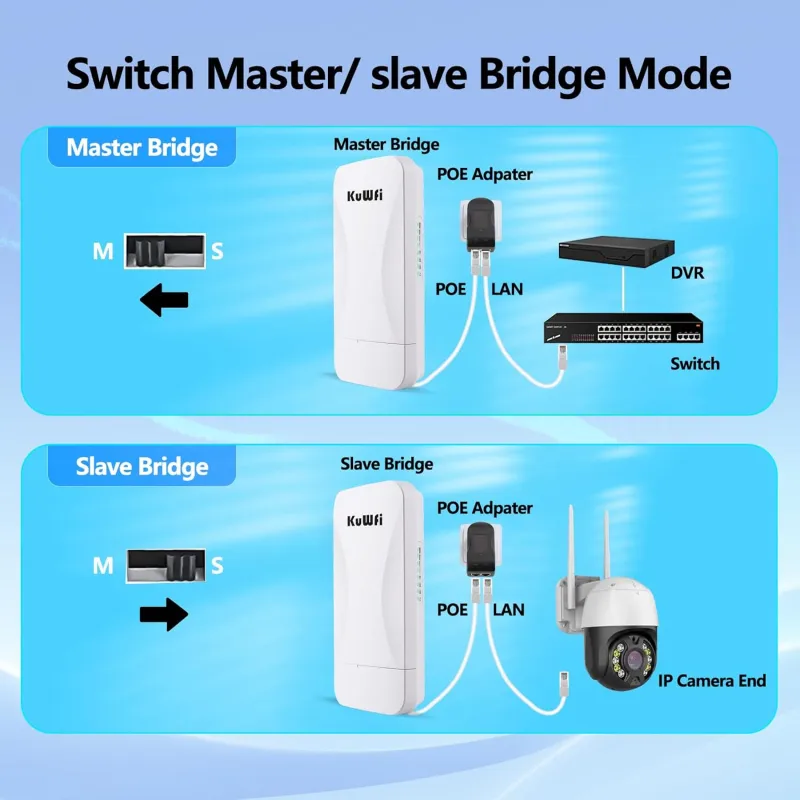

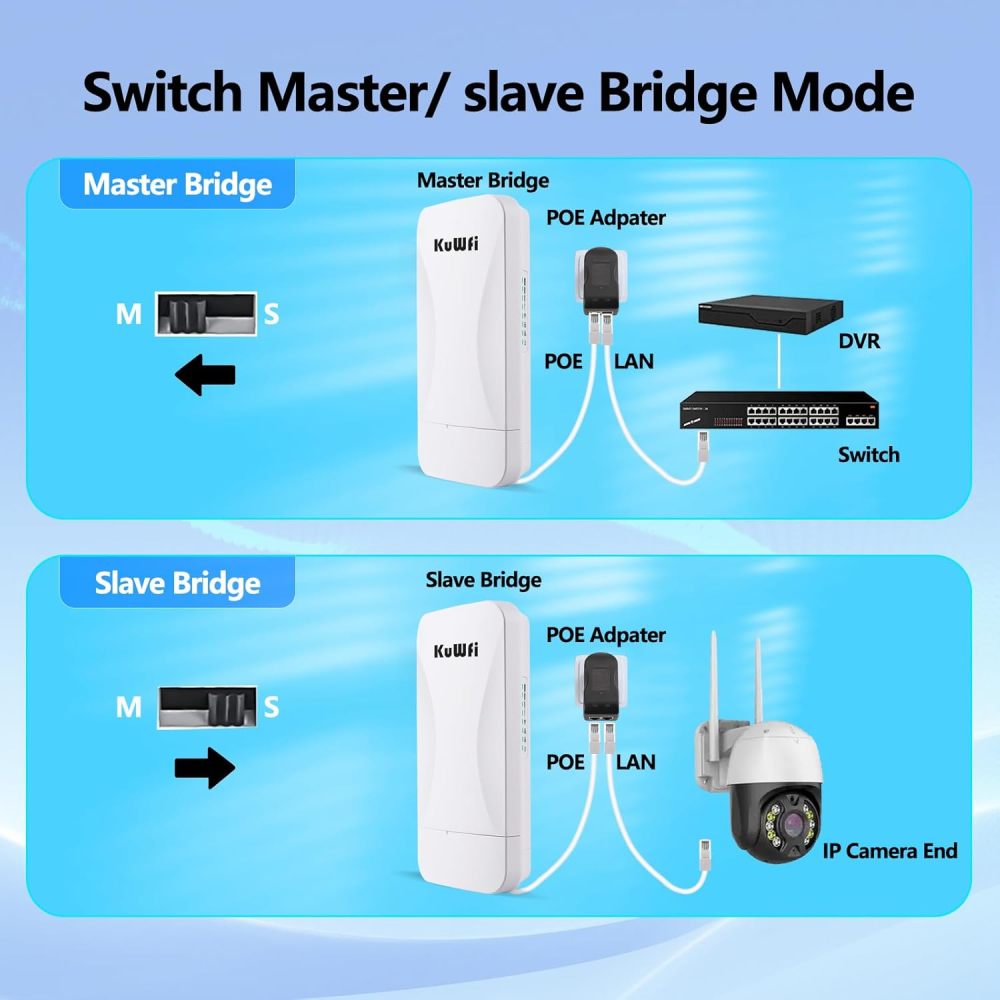

2.AP / Repeater mode
The CPE Bridge supports universal AP mode and Repeater mode, with a wider range of user application scenarios.When the two Bridges are used in pairs, the Wifi signal can be extended to further distances.
3.Built in 12dBi antenna
Built in 12dBi directional antenna, which can meet the wireless transmission within 2KM, and can realize the outdoor coverage and application of point-to-point.

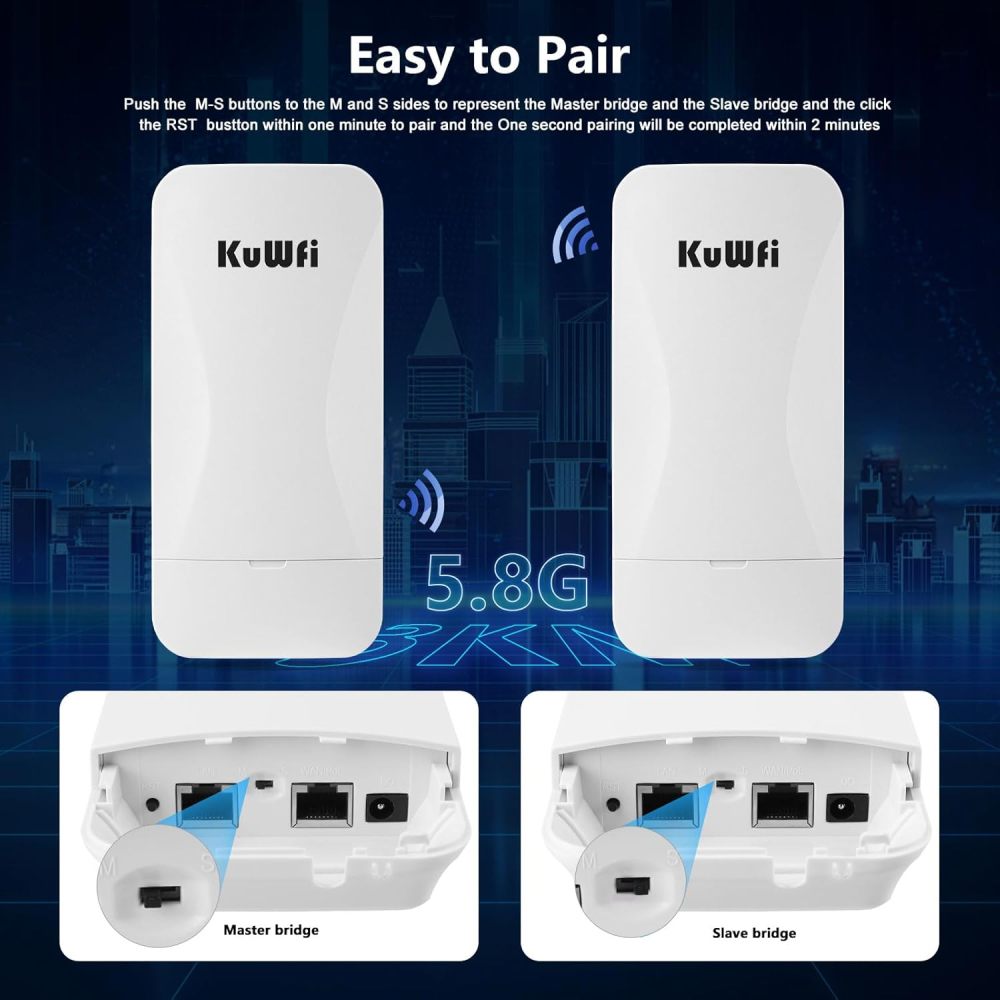

4.One-click fast pairing
Through the buttons on the bridge, the two Bridges can be pairing with one click, eliminating the tedious pairing process.
5.Supports two modes of power supply
The CPE Bridge supports 48V PoE power supply and DC 12V power supply.The power supply mode of POE solves the problem that the network bridge can be placed remotely through the network cable.(Package does not include DC 12V power supply)
Specifications:
Model: WB-5G03
5.8G frequency: 5.150GHz～5.850GHz
5.8G WIFI protocol: 802.11 a/n/ac
Antenna: Built in 12dBi directional antenna
Wifi Max Rate: 900Mbps
WAN/POE Port: 10/100/1000Mbps,Support 48V POE
LAN Port : 10/100/1000Mbps
Size: 165mm*86mm*42mm
IP Grade: IP65 Outdoor Waterproof
Max Power Consumption: < 10W
Working Temperature : -20°C to 55°C
Storage Temperature: -40°C to 70°C
Humidity: 5 percent to 95 percent (Non-Condensing)
Switch button: Choose AP(‘M’)/ Repeater(‘S’) working mode
Reset Button: Long press for 10 seconds to restore the factory default configuration, and short press for 1 second to initiate pairing
