Five points:
- The Wireless WiFi Router WE5126 uses the latest MT7628A solution.It meet 802.11AC protocol, the 5Ghz MAX transmission rate could be 866Mbps, the 2.4Ghz MAX transmission rate could be 300Mbps; Download URL of this product's firmware file: https://drive.google.com/file/d/1K4hFxHGYKGlzznPgo35ij4DmkbJ8SQ7B/view?usp=sharing
- Dual Band Router - Both support the 2.4G IEE802.11N and the 5G IEEE802.11AC wireless transmission technology. It could reduced the Co-Channel Interference, and will get a better transmission performance
- The MAX RT power is 100mW, the cover range is 1-2 times than the normal routers. We also assemble the MicroSD slot and the USB2.0 interface, make it easier to add more function to the router, Mac clone/NTP Synchronize/Web software update
- Security Network Access Point - Many kinds of encryption to protect your transmission data. Firewall Security: Dos, SPI Firewall / IP Address Filter/MAC Address Filter/ Domain Filter / IP and MAC Address Binding
- KuWFi Wireless WiFi Router Network Devices. Quality is guaranteed. Lifelong technical support. If you have any questions, please feel free to contact us by email. Open Source OpenWRT for better performance, and the firmware of OS More user-friendly settings. two software web interface can be update. but we will build in OS firmware
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Description
Specification
- RAM: DDR2 64MB; SPI FLASH: 8MB
- Protocol: IEEE802.11ac, 802.11a, 802.11n, 802.11g, 802.11b, 802.3, 802.3u
- LED: Power, USB, 2.4G, 5G, WAN, LAN1, LAN2, LAN3, LAN4
- Button: Reset
- Max Power Consumption: <12W
- WAN Type: PPPoE、DynamicIP、Static IP
- Work Mode: AP; Router
- DHCP: Server, Client, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
RT Power:
11n: 17dBm±1dBm / 11g: 17dBm±1dBm / 11b: 19dBm±1dBm / 11a: 16dBm±1dBm / 11ac: 14dBm±1dBm
Reception Sensitivity:
11n: -82dBm / 11g: -82dBm / 11b: -76dBm / 11a: -82dBm / 11ac: -76dBm
Work Channel:
- 2.4GHz choose:1-13; 5GHz choose:149、153、157、161、165
Antenna:
- For 2.4GHz,2*undetachable 5dBi antenna - For dual band,2*undetachable 5dBi antenna

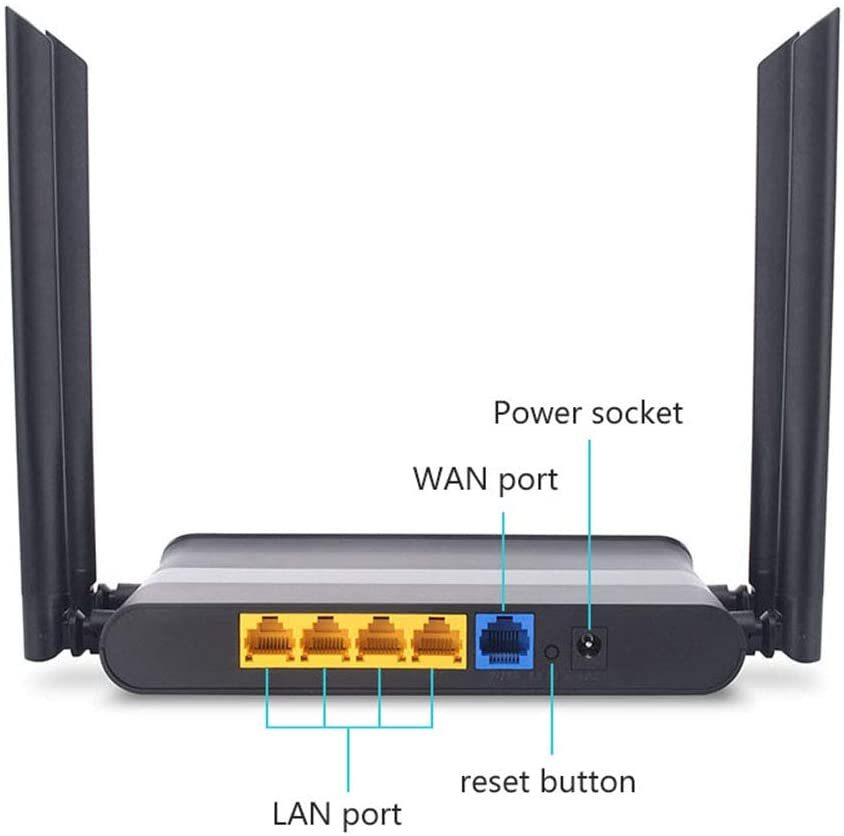

Interface:
1*USB 2.0 interface
1*Micro TF card slot
1*10/100M WAN Port(Auto MDI/MDIX)
4*10/100M LAN Port,support(Auto MDI/MDIX)
Firewall Security:
- Dos, SPI Firewall - IP Address Filter/MAC Address Filter/ Domain Filter - IP and MAC Address Binding
DDNS: Support
VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
Static Router: Support
Other Function:
- Mac clone - NTP Synchronize - Web software update
