Version-3
4G LTE FDD:B1/B3/B5/B7/B8/B20
4G LTE FDD:B38/B39/B40/B41
3G WCDMA:B1/B3
Working in most of in EU,Asia,Africa
US Version
4G LTE FDD:B2/B4/B5/B12/B13/B17/B18/B25/B26
Working in USA/CA/Mexico
Description:

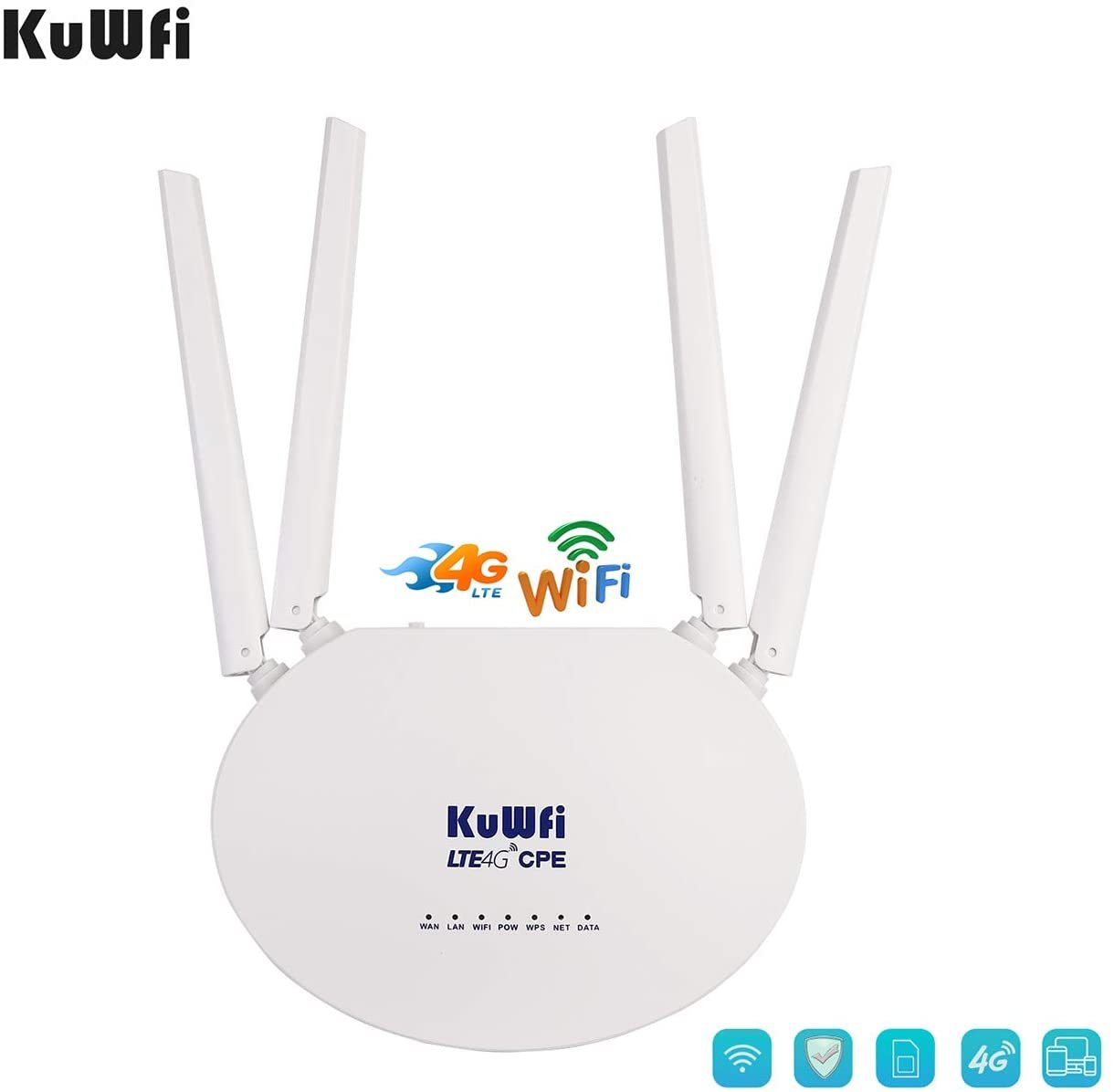

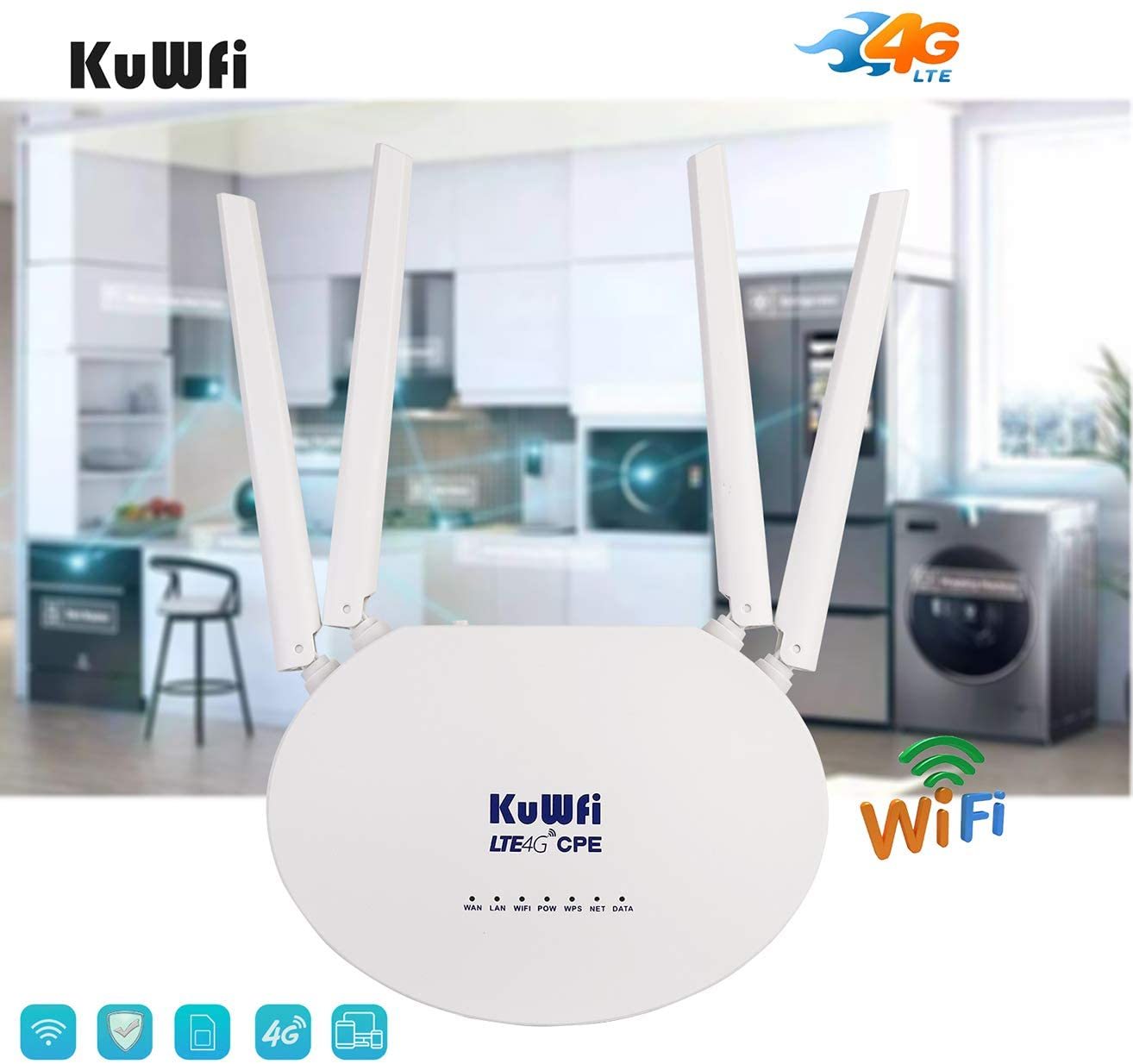

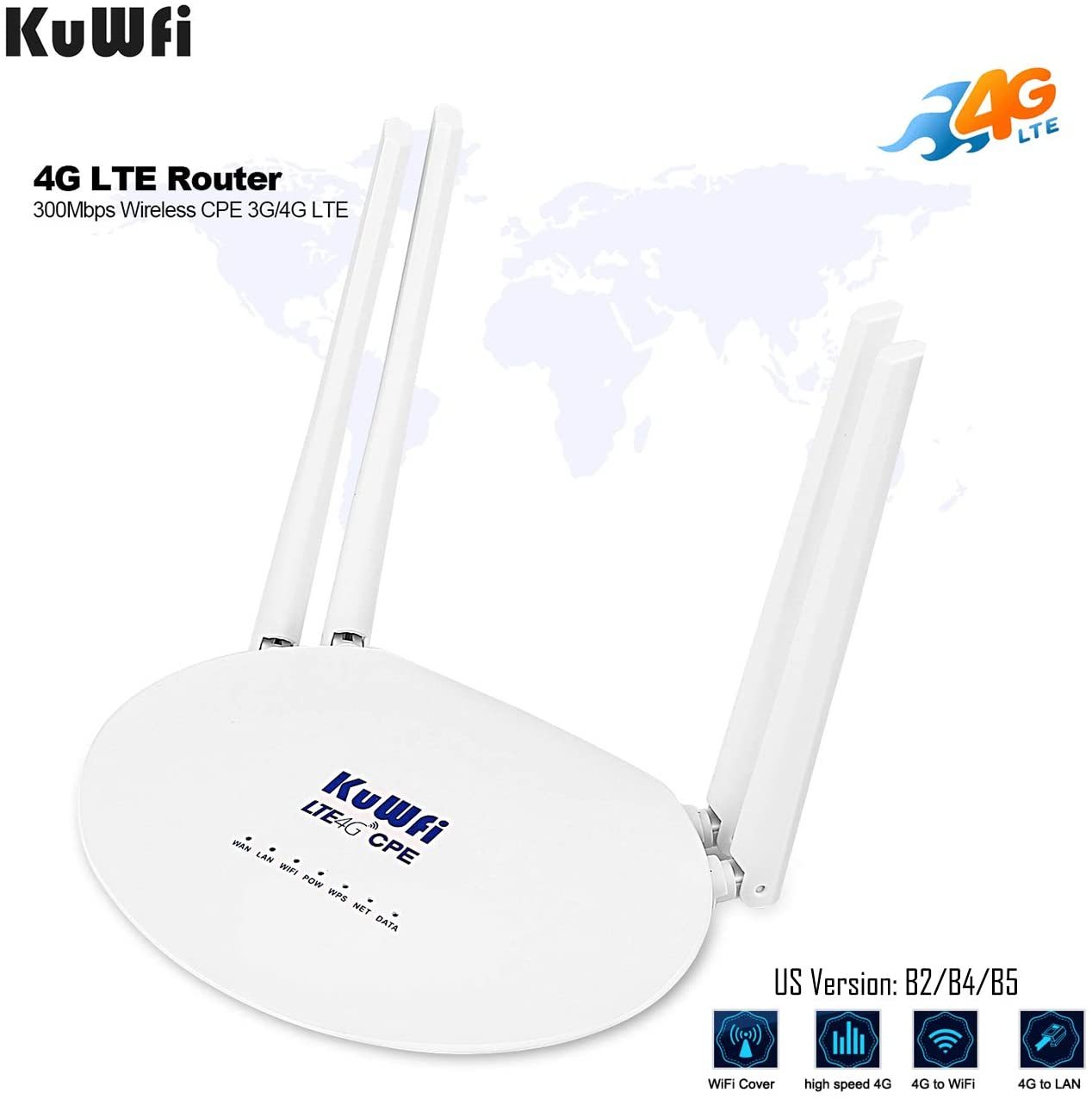

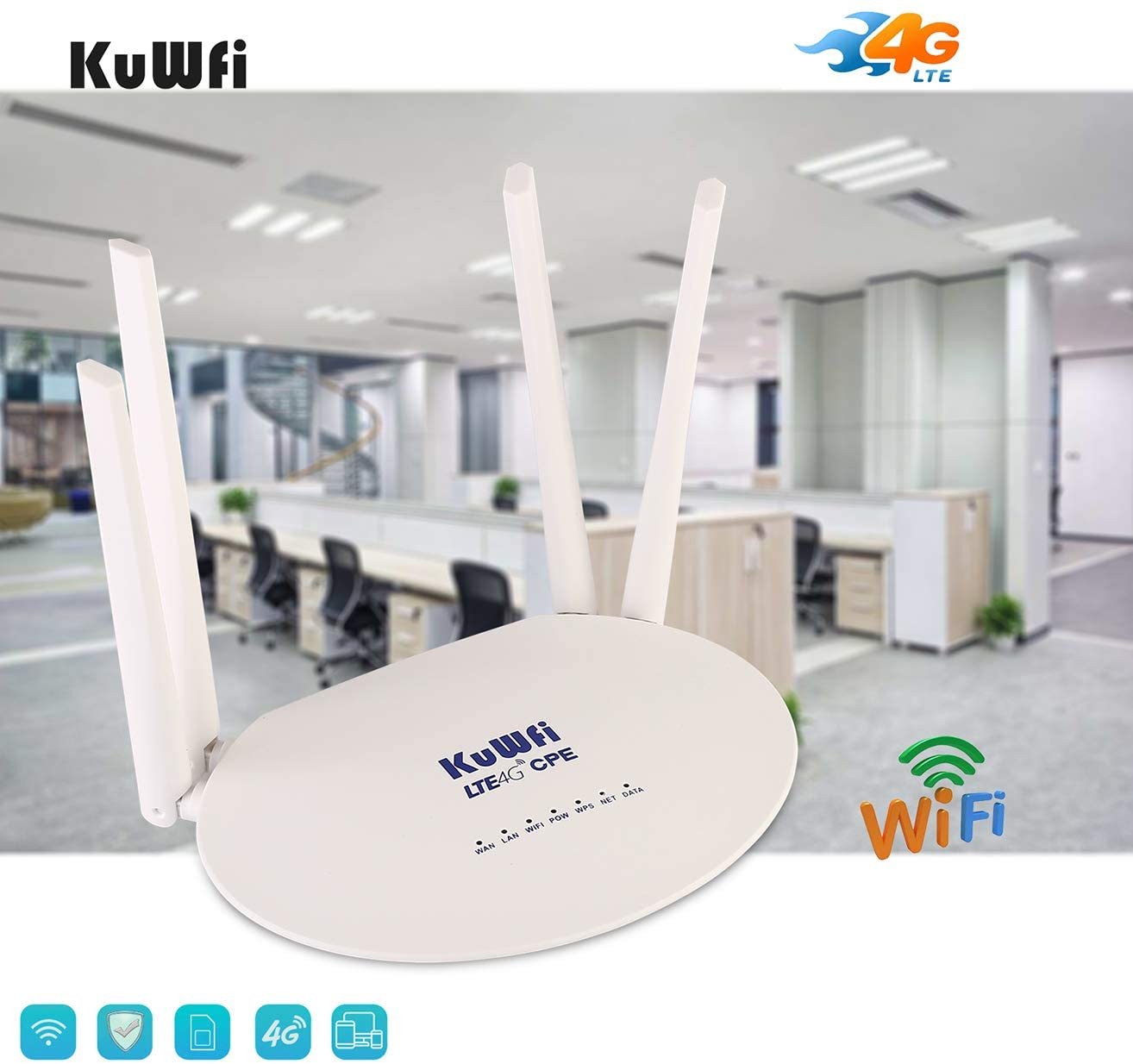

1.4G LTE CPE Router have 4pcs powerful Non-detachable antenna , provides a wireless transmission speed up to 300Mbps.
2.Internet access to internet via HSPA/LTE Data SIM Card or Internet access/PPPoE work mode , if you do not have 4G sim card , you can connect the routerto lan port by PPPoE mode.

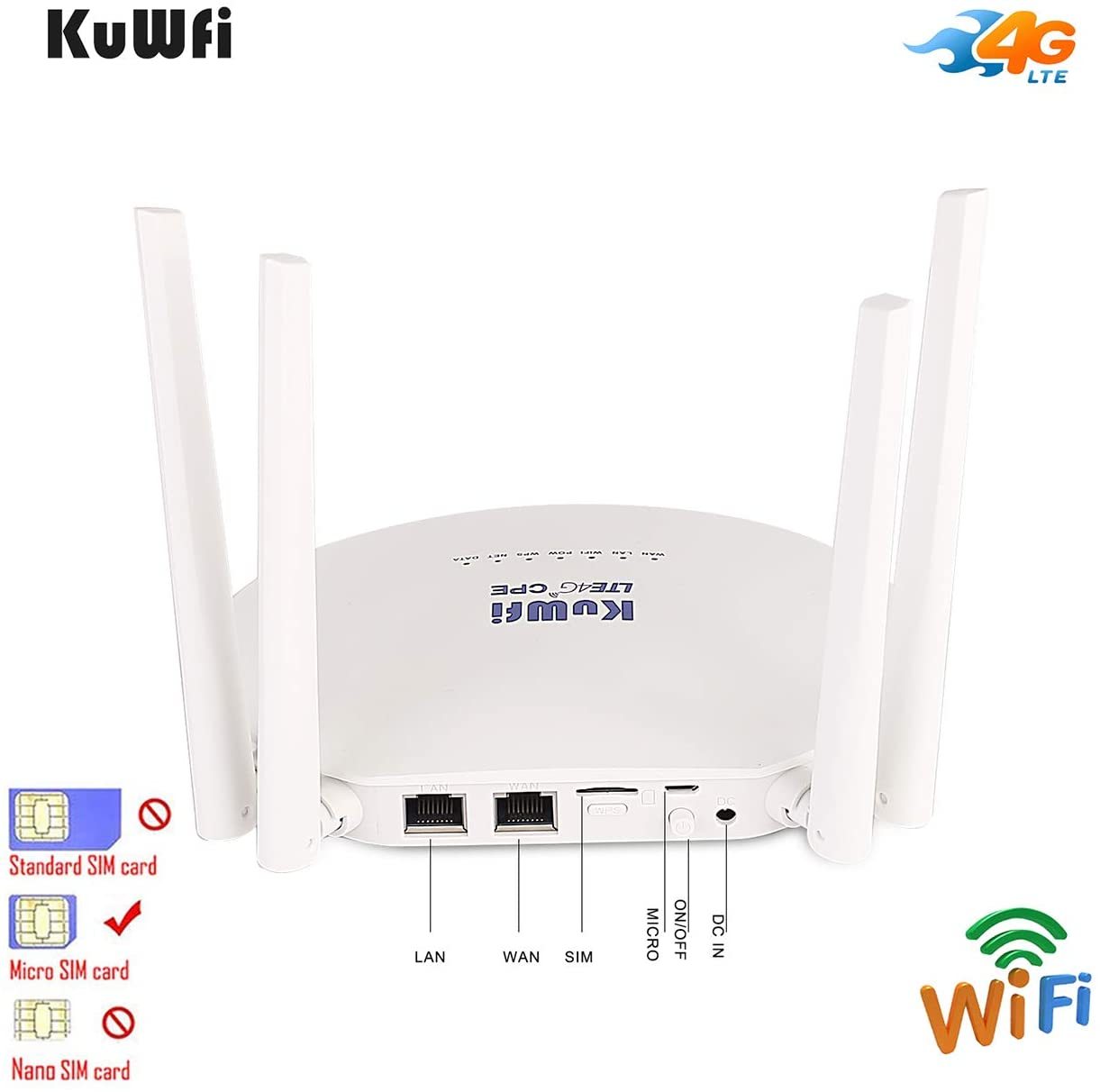

3.This 4g lte wifi router ia equipped with 1 LAN and 1 Wan port 1*SIM Card slot interface，when the 4G router transmits the WiFi ,you may connect to other Devices simultaneously
4.All you need to do is inserting the SIM card, then you will enjoy the WiFi with your friends with this portable 4G LTE route,also work good for outside camera Project.
5.Provide high-speed for 32 users simultaneously, make you have a greater wireless enjoyme no need to connect the broardband ,there is 4G ,there is wifi, just plugs the 4G SIM card and play！some sim card should be update APN
Features:
Main CPU ：RT7628 Basic Frequency 580MHz
Transmission Range :100-500M
Working Temp : -10℃ ~ 40℃ for storage: -40℃ ~70℃ for working
Power Supply :12V 1A DC Supply
4G WiFi router provides a wireless transmission speed up to 300Mbps
Internet connection sharing reaches to 32 WiFi users
Internal dual-antenna, selectable 4G / 3G signal
4G wireless mode（Default）
Choose 3G/4G Wireless modem mode as default, pulg in to standard SIM Card, KuWFi CPE will identify 3G/4G automatically.for some SIM Card should be update APN.
4G To LAN: Insert 3G/4G SIM card to the Router , connect the LAN cable the router to PC/Desktop ,
Wired Mode:Standard wireless modem mode:Static online mode/Dynamic Internet access/PPPoE online modem

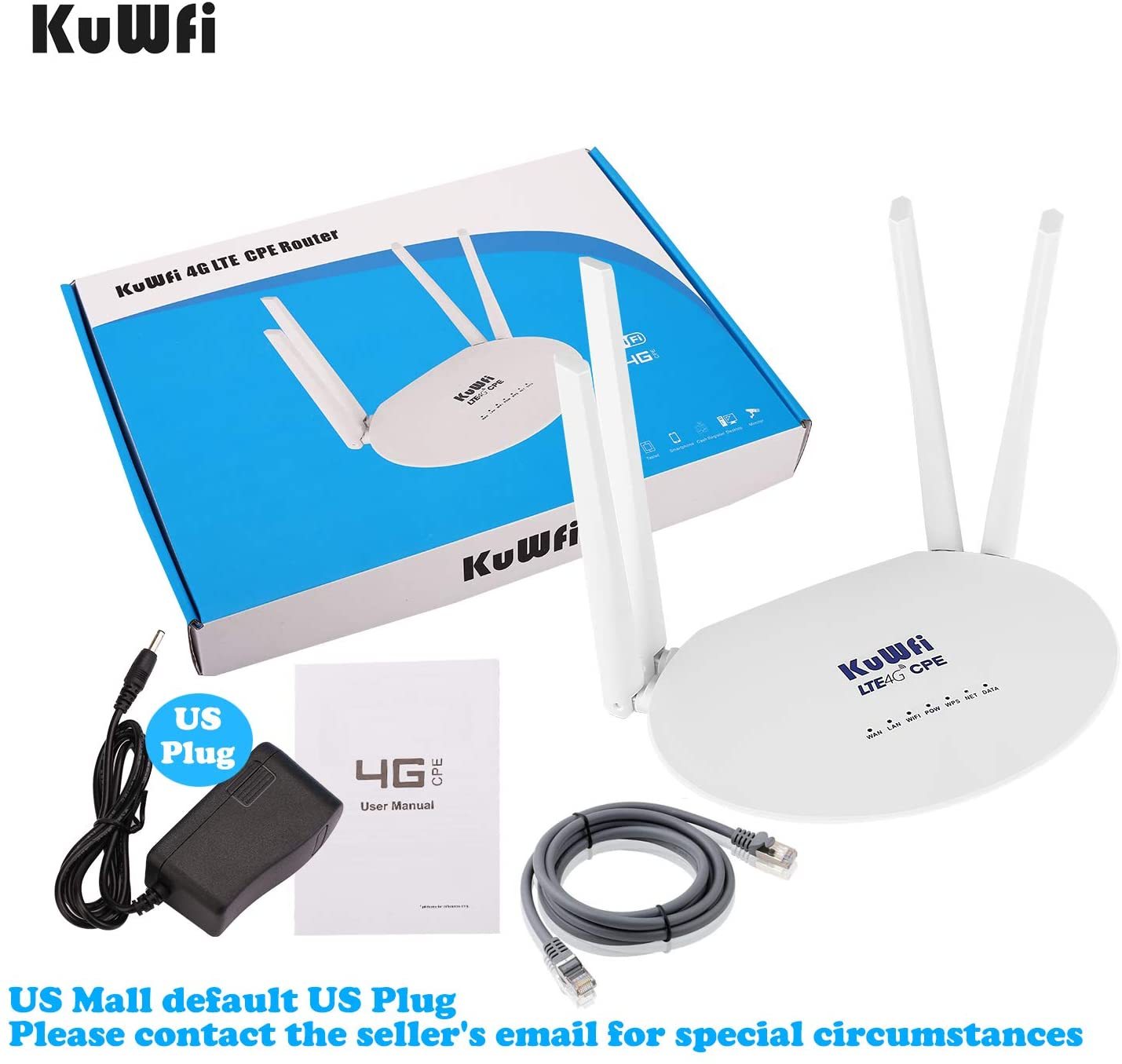

Package Included:
1X4G router
1XAdapter
1XLAN Cable
1XEnglish Manual.
Dear, AU/UK plug we use adapter.
How to use the router ?
1.Plug in standard SIM Card to convert WiFi
2.Use it without broadband also access to enjoy surfing the Internet connect the PC wifi SSID WIFI-XXXXX Password is 12345678

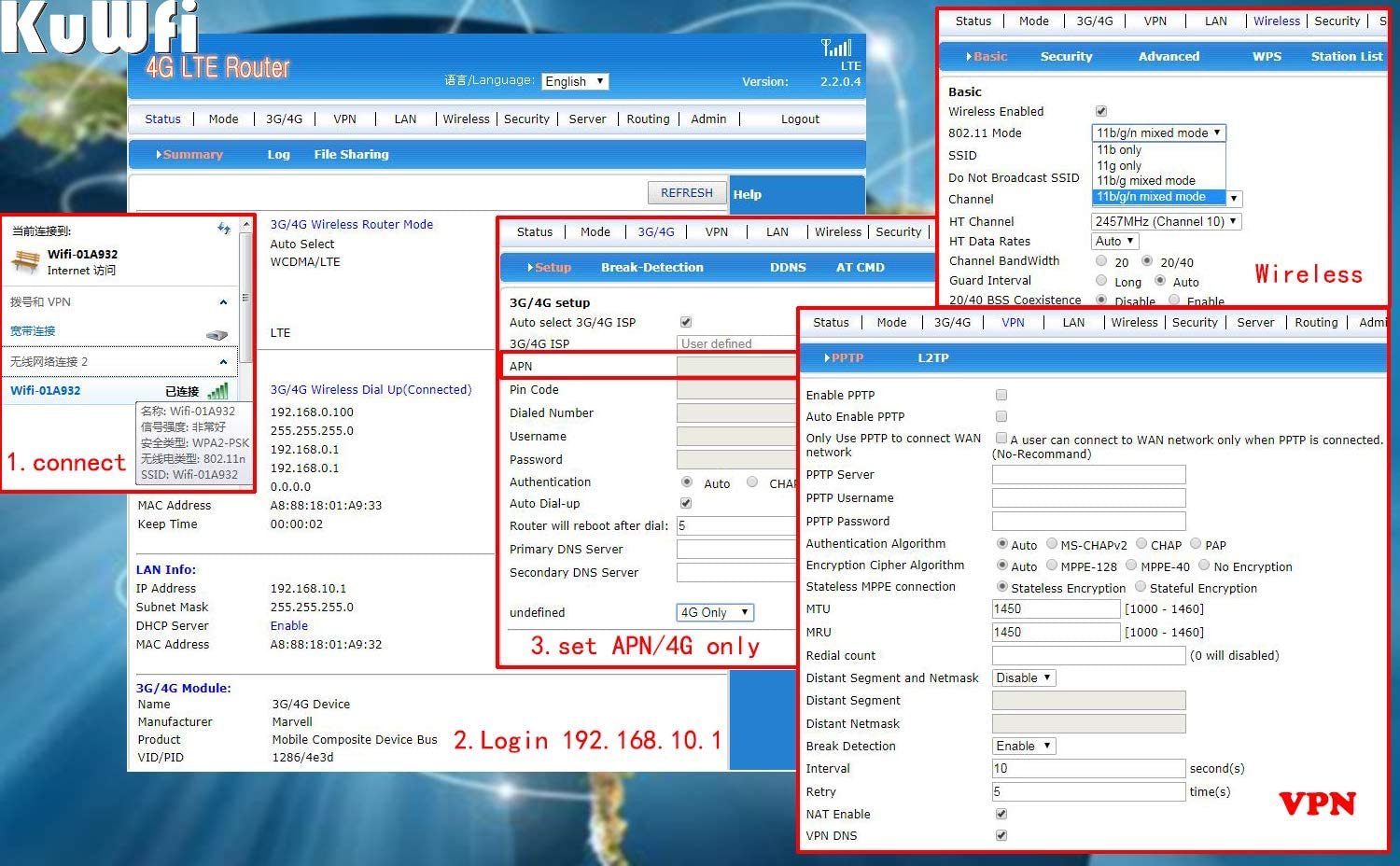

How to Log in web interface?
log in web UI 192.168.10.1, and see web interface show work mode signal and IP address. then click 3G/4G setup, Here we must remove the check mark "auto select 3G / 4G ISP, it will activate the ability to enter the fields below. ,choose Users Defined,then Write correct APN（APN confirm from SIM Card provider ） then the "APPLY" button
How to change wifi ssid name and password?
Find Wireless -Basic -SSID(revise SSID) then apply . then security - WPA-PSK Key (revise) then apply.
